Description

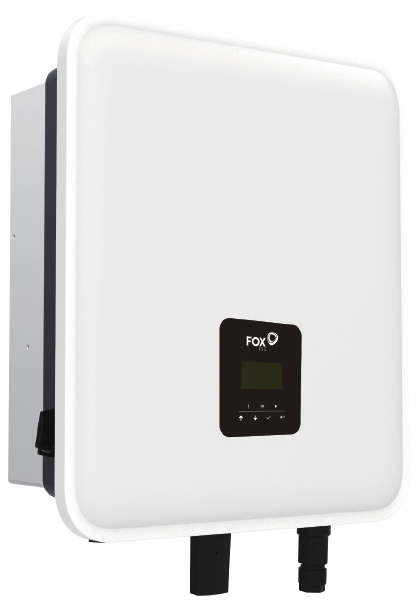

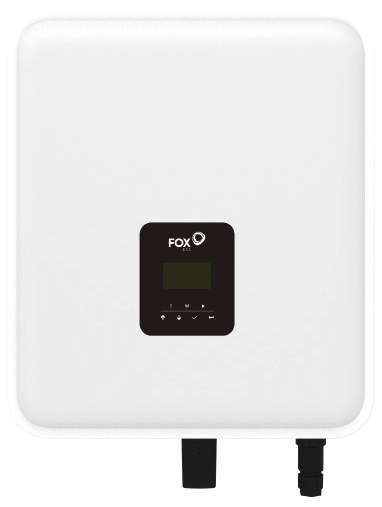

The Fox ESS KH10 is a 10kW single-phase high-voltage hybrid inverter from the Fox ESS K series, designed for residential solar and battery systems in South Africa.
- Backlit LCD, IP65 protection, suitable for indoor and outdoor installation
- Nominal AC power: 10000VA | Max apparent AC power: 10500VA
- EPS (backup) power: 10000VA | Peak 12000W for 60s | Switch time <20ms
- Battery voltage range: 85-480V (Li-ion, recommended 300V DC) | CAN/RS485 BMS communication
- Max charge/discharge current: 50A
- Max recommended PV power: 15000W
- Max DC voltage: 600V | MPPT range: 80-500V | Start-up voltage: 75V
- 4 MPPTs, 1 string each | Max input current 16A per input
- Max AC input power: 18000VA (78.3A)
- Grid voltage 220/230/240V (180-270V), 50/60Hz | PF 0.8 leading to 0.8 lagging
- Parallel operation up to 10 units
- Max efficiency: 97.8% | Euro efficiency: 97.4% | MPPT efficiency 99.9%
- Type II AC/DC surge protection | anti-islanding, leakage current and insulation monitoring | AFCI optional
- Natural cooling | Noise <30dB | Non-isolated
- Dimensions (W x H x D): 450 x 527 x 208mm | Weight: 29kg
- Operating temperature -25 to +60°C (derating above 45°C) | WiFi, 4G (optional), CT, RS485, DRM, USB
- NRS 097-2-1 | 5-year standard warranty, extendable by a further 5 years with Fox registration
Official Datasheet: Fox ESS KH/KA Datasheet
Official Product Page: Fox ESS Hybrid Inverters
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
