Description

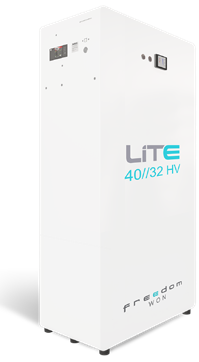

The Freedom Won LiTE 2 Business 40/32 HV is a 40kWh high-voltage LiFePO4 battery from the Freedom Won LiTE 2 Business range, locally designed and built for commercial and large residential solar storage in South Africa.
- Aluminium enclosure painted white, IP20 protection, indoor installation only (or fully protected under-cover environments)
- Total energy capacity: 40kWh | Usable: 32kWh at 80% DoD, 36kWh at 90% DoD
- Nominal voltage: 410V | Operating voltage: 365-448V (for high-voltage inverters)
- Max/continuous discharge current: 120/100A | Max/continuous discharge power: 49/41kW
- Max and continuous charge current: 100A
- Short-circuit current: 5kA
- Shunt-trip circuit breaker sized to max current, can be tripped by the BMS on a critical fault
- BMS protection: overcurrent, cell under/over voltage, temperature, weak cell detection, minimum SoC control, manual reset
- RJ45 Ethernet for diagnostics (eConnect) | RJ45 CAN strictly for BMS-inverter communication
- State of charge display (0-100%), error light and reset button
- Real-time data logging and remote monitoring over WiFi and Ethernet (internet required)
- DC power cables: 1 x 25mm² per electrode, 4m long, detachable power connector
- Battery dimensions (H x W x D): 1260 x 740 x 290mm | Crated: 1396 x 896 x 480mm
- Battery weight: 327kg | Crated weight: 366kg
- Expected service life >16 years (>6000 cycles) at 80% DoD
- Designed and built to IEC 62619, IEC 62040, IEC 61000, UN38.3
- Warranty: 10 years (or 6000 cycles) at 80% DoD, 0.5C max discharge, 0.25C max charge, max 25°C
Official Datasheet: Freedom Won LiTE 2 Business 40/32 HV Spec Sheet
Official Product Page: Freedom Won Downloads
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
