Description

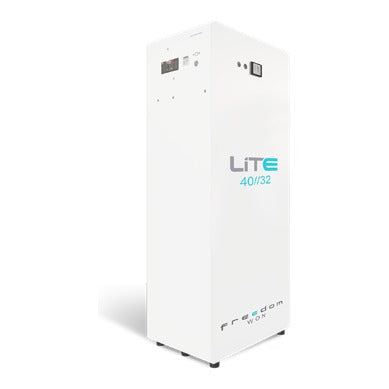

The Freedom Won LiTE 2 Business 40/32 LV is a 40kWh 51.2V LiFePO4 battery from the Freedom Won LiTE 2 Business 52V range, locally designed and built in South Africa for solar and backup storage in businesses and large homes, to suit 48V inverters.
- Aluminium enclosure painted white, IP20 protection, indoor installation only (or fully protected under-cover environments)
- Total energy capacity: 40kWh | Usable: 32kWh at 80% DoD, 36kWh at 90% DoD | Capacity: 800Ah
- Nominal voltage: 51.2V, to suit 48V inverters | Operating voltage: 47–56V
- Max and continuous charge: 600A / 31kW
- Max/continuous discharge: 720/600A | 37/31kW (max current 5 min in every 10 min; 1.5 x max overload for 5 seconds)
- Max recommended inverter total rated power: 25kVA | Short-circuit current: 15kA
- Shunt-trip circuit breaker sized to max current, can be tripped by the BMS on a critical fault (manual reset)
- BMS protection: overcurrent, cell under/over voltage, temperature, weak cell detection, minimum SoC control
- RJ45 Ethernet for diagnostics (eConnect) | RJ45 CAN strictly for BMS-inverter communication
- State of charge display (0–100%), error light and reset button
- Real-time data logging and remote monitoring over WiFi and Ethernet (internet required)
- DC power cables: 2 x 95mm² per electrode, 1.8m long, detachable power connector
- Battery dimensions (H x W x D): 1300 x 522 x 370mm | Crated: 1396 x 786 x 568mm
- Battery weight: 326kg | Crated weight: 376kg
- Expected service life >16 years (>6000 cycles) at 80% DoD
- Designed and built to IEC 62619, IEC 62040, IEC 61000, UN38.3
- Warranty: 10 years (or 6000 cycles) at 80% DoD, 0.5C max discharge, 0.25C max charge, max 25°C
- One CAN bus termination resistor included; CAN bus (RJ45 LAN) cable not included
Official Datasheet: Freedom Won LiTE 2 Business 40/32 (52V) Spec Sheet
Official Product Page: Freedom Won Downloads
Available on backorder – please contact us for lead time.
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
