Description

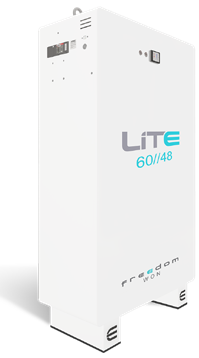

The Freedom Won LiTE 2 Business 60/48 is a 60kWh 51.2V (48V system) LiFePO4 battery from the Freedom Won LiTE 2 Business range, locally designed and built for commercial and large residential solar storage in South Africa.
- Aluminium enclosure painted white, IP20 protection, indoor installation only (or fully protected under-cover environments)
- Total energy capacity: 60kWh | Usable: 48kWh at 80% DoD, 54kWh at 90% DoD | 1200Ah
- Nominal voltage: 51.2V, to suit 48V inverters (min 47V, max 56V)
- Max and continuous charge current: 700A | Charge power: 36kW
- Max/continuous discharge current: 840/700A | Max/continuous discharge power: 43/36kW
- Max recommended total inverter rated power (continuous): 35kVA
- Short-circuit current: 20kA
- Shunt-trip circuit breaker sized to max current, can be tripped by the BMS on a critical fault
- BMS protection: overcurrent, cell under/over voltage, temperature, weak cell detection, minimum SoC control
- RJ45 Ethernet for diagnostics (eConnect) | RJ45 CAN strictly for BMS-inverter communication
- State of charge display (0-100%), error light and reset button | WiFi/Ethernet remote monitoring (internet required)
- DC power cables: 2 x 95mm² per electrode, 1.8m long, detachable power connector
- CAN bus termination resistor included; CAN bus (RJ45) cable not supplied
- Battery dimensions (H x W x D): 1350 x 800 x 370mm | Weight: 508kg (crated 563kg)
- Expected service life >16 years (>6000 cycles) at 80% DoD
- Designed and built to IEC 62619, IEC 62040, IEC 61000, UN38.3
- Warranty: 10 years (or 6000 cycles) at 80% DoD, 0.5C max discharge, 0.25C max charge, max 25°C
Official Datasheet: Freedom Won LiTE 2 Business 60/48 Spec Sheet
Official Product Page: Freedom Won Downloads
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
