Description
The Freedom Won LiTE 2 Business 60/48 HV is a 60kWh high-voltage LiFePO4 battery from the Freedom Won LiTE 2 Business range, locally designed and built for commercial and large residential solar storage in South Africa.
- Aluminium enclosure painted white, IP20 protection, indoor installation only (or fully protected under-cover environments)
- Total energy capacity: 60kWh | Usable: 48kWh at 80% DoD, 54kWh at 90% DoD
- Nominal voltage: 614V | Operating voltage: 547-672V (for high-voltage inverters)
- Max/continuous discharge current: 120/100A | Max/continuous discharge power: 73/61kW
- Max and continuous charge current: 100A
- Short-circuit current: 5kA
- Shunt-trip circuit breaker sized to max current, can be tripped by the BMS on a critical fault
- BMS protection: overcurrent, cell under/over voltage, temperature, weak cell detection, minimum SoC control, manual reset
- RJ45 Ethernet for diagnostics (eConnect) | RJ45 CAN strictly for BMS-inverter communication
- State of charge display (0-100%), error light and reset button
- Real-time data logging and remote monitoring over WiFi and Ethernet (internet required)
- DC power cables: 1 x 25mm² per electrode, 4m long, detachable power connector
- Battery dimensions (H x W x D): 1350 x 1040 x 290mm
- Battery weight: 485kg | Crated weight: 528kg
- Expected service life >16 years (>6000 cycles) at 80% DoD
- Designed and built to IEC 62619, IEC 62040, IEC 61000, UN38.3
- Warranty: 10 years (or 6000 cycles) at 80% DoD, 0.5C max discharge, 0.25C max charge, max 25°C
Official Datasheet: Freedom Won LiTE 2 Business 60/48 HV Spec Sheet
Official Product Page: Freedom Won Downloads
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.

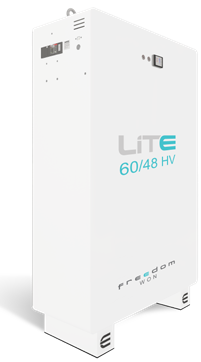

Please note: the image is for illustration purposes only. The actual product may not look exactly like the picture.
