Description

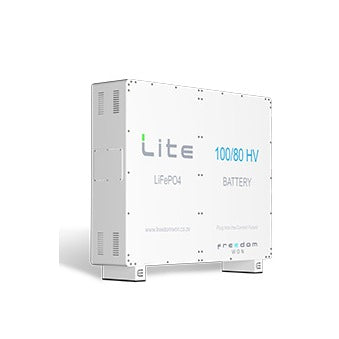

The Freedom Won LiTE 2 Commercial 100/80 HV is a 100kWh high-voltage (512V) LiFePO4 battery from the Freedom Won LiTE 2 Commercial HV range, locally designed and built in South Africa for commercial and industrial energy storage. HV models suit the Freedom Won Encore HPS50, HPS100 and HPS150 hybrid battery inverters.
- 3mm aluminium enclosure, powder coated, tamper proof, for indoor use
- Total energy capacity: 100kWh | Usable: 80kWh at 80% DoD, 90kWh at 90% DoD | Capacity: 200Ah
- Nominal voltage: 512V | Operating voltage: 456–568V
- Max and continuous charge: 200A / 102kW
- Max/continuous discharge: 300/250A | 154/128kW (max current 5 min in every 10 min; 1.5 x max overload for 5 seconds)
- Max recommended inverter total rated power: 120kVA | Short-circuit current: 5kA
- Round-trip efficiency: 96–97%
- Shunt-trip circuit breaker sized to max current, can be tripped by the BMS on a critical fault (manual reset)
- BMS protection: overcurrent, cell under/over voltage, temperature, weak cell detection and other critical events
- RJ45 Ethernet for diagnostics (eConnect) | RJ45 CAN strictly for BMS-inverter communication
- On/off buttons, state of charge display (0–100%), error light, reset button and main breaker
- Large-format 200Ah prismatic LiFePO4 cells with laser-welded connections | Natural convection cooling
- Suitable ambient temperature 10–25°C | Extreme operating temperature -20°C to +55°C (no charging below 0°C)
- Real-time data logging and remote monitoring over Ethernet (internet required)
- DC power cables: 1 x 95mm² per electrode, 4m long as standard (up to 8m at extra cost), detachable power connector, exiting bottom right
- Battery dimensions (H x W x D): 1405 x 1636 x 365mm | Crated: 1600 x 1790 x 575mm
- Battery weight: 800kg | Crated weight: 914kg
- Expected service life >16 years (>6000 cycles) at 80% DoD
- Designed and built to IEC 62619, IEC 62040, IEC 61000, UN38.3
- Warranty: 10 years (or 6000 cycles) at 80% DoD, 0.5C max discharge, 0.25C max charge, max 25°C
Official Datasheet: Freedom Won LiTE 2 Commercial 100/80 HV Spec Sheet
Official Product Page: Freedom Won Downloads
Available on backorder – please contact us for lead time.
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
