Description

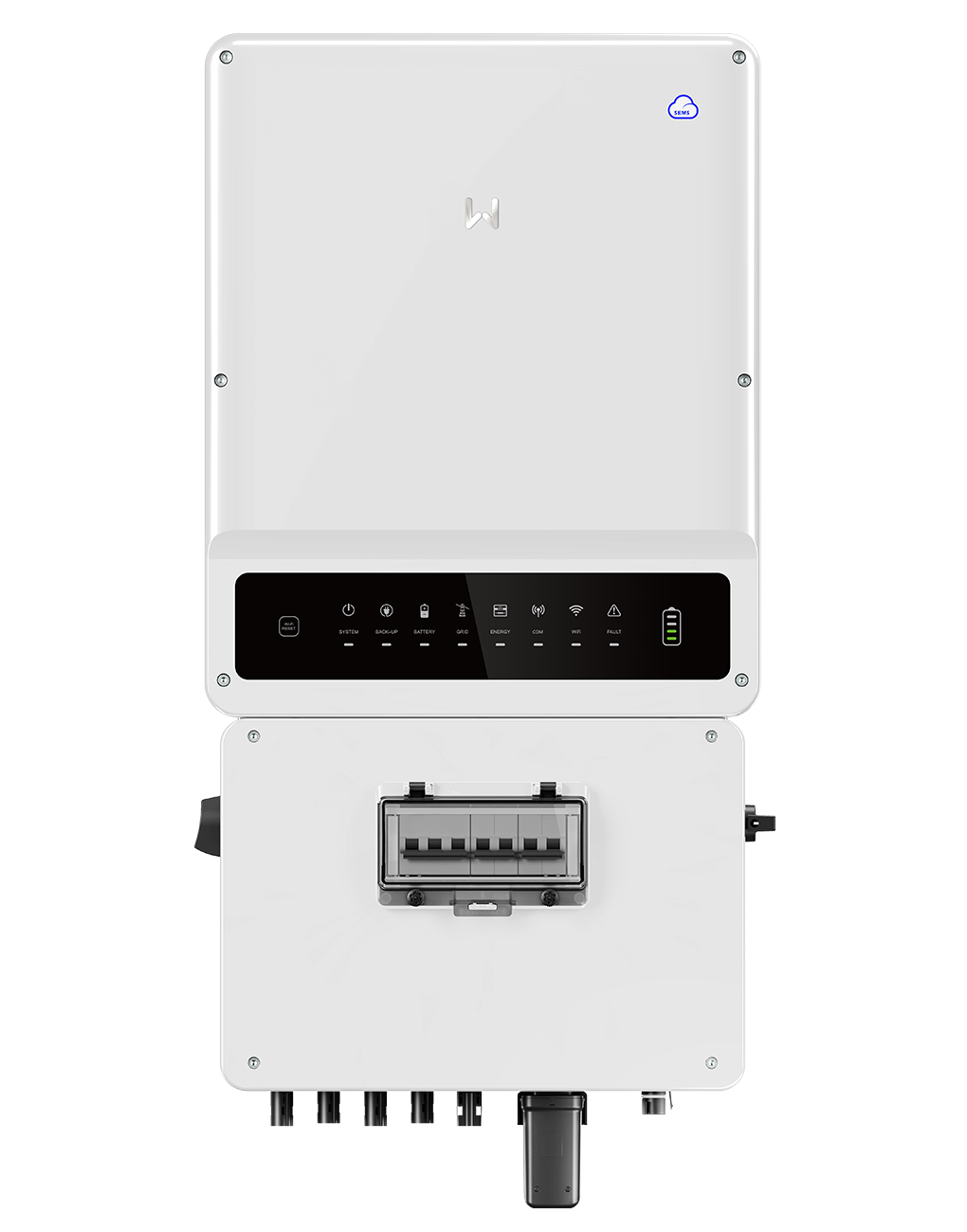

The GoodWe GW0010-EHB is a 10 kW single-phase hybrid inverter in GoodWe’s EHB series, with high-voltage battery input, multiple MPPTs and a back-up output.
- Official model: GW0010-EHB (EHB series, single-phase hybrid)
- Nominal apparent power to the utility grid: 10000 VA
- 4 MPP trackers; max. PV input 600 V
- Battery voltage range 80 – 495 V; max. 50 A charge/discharge
- IP65; wall mounted; 415 × 791 × 175 mm
Technical specifications (GW0010-EHB)
Figures in the table are from GoodWe’s official EHB Series datasheet (English, GoodWe-Single page-20230802-EN-V2.1), linked from GoodWe’s download centre. The EHB series is a single-phase hybrid inverter for the South African market (5–10 kW).
| Official model |
GW0010-EHB |
| Type |
Single-phase hybrid inverter |
| Max. charging power |
10000 W |
| Max. discharging power |
10500 W |
| Nominal / max. apparent power output to utility grid |
10000 VA / 10000 VA |
| Max. apparent power from utility grid |
10000 VA |
| Max. AC current output to / from utility grid |
43.5 A / 45.5 A |
| Back-up nominal apparent power |
10000 VA |
| Max. back-up output apparent power |
10 000 VA (12 000 VA for 60 s) |
| Max. back-up output current |
43.5 A |
| Number of MPP trackers |
4 |
| Nominal battery voltage |
360 V |
| Battery voltage range |
80 – 495 V |
| Max. continuous charging / discharging current |
50 A / 50 A |
| Max. PV input voltage |
600 V |
| MPPT operating voltage range |
80 – 550 V |
| Start-up / nominal PV input voltage |
95 V / 380 V |
| Max. input current / short-circuit current per MPPT |
13 A / 16.3 A |
| Strings per MPPT |
1 |
| Nominal output voltage |
230 V (back-up 230 V ± 2 %) |
| Nominal AC grid frequency |
50 Hz (back-up 50 Hz ± 0.2 %) |
| Power factor |
~1 (adjustable 0.8 leading to 0.8 lagging) |
| Max. THD / back-up THDv (linear load) |
< 3% / < 3% |
| Max. / CEC / max. battery-to-AC / MPPT efficiency |
97.6% / 97.0% / 96.5% / 99.9% |
| Operating temperature |
−35 °C to +60 °C |
| Relative humidity |
0 – 95% |
| Max. operating altitude |
4 000 m |
| Cooling |
Smart fan cooling |
| Communications |
LED, WLAN + APP; BMS RS485 / CAN; meter RS485; portal WiFi |
| Weight |
32.3 kg |
| Dimensions (W × H × D) |
415 × 791 × 175 mm |
| Topology |
Non-isolated |
| Self-consumption at night |
< 20 W |
| Ingress protection rating |
IP65 |
| Mounting |
Wall mounted |
The official datasheet notes: battery discharge/charge power is limited by voltage; the inverter will not work when PV input voltage is ≥ 585 V; without a battery, feed-in starts only if string voltage is higher than 200 V; grid feed-in power for VDE-AR-N 4105 and NRS097-2-1 is limited to 4 600 VA. Warranty years are not stated on this datasheet; refer to GoodWe’s official warranty terms.
Official Datasheet: GoodWe EHB Series Datasheet (PDF, English)
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
