Description

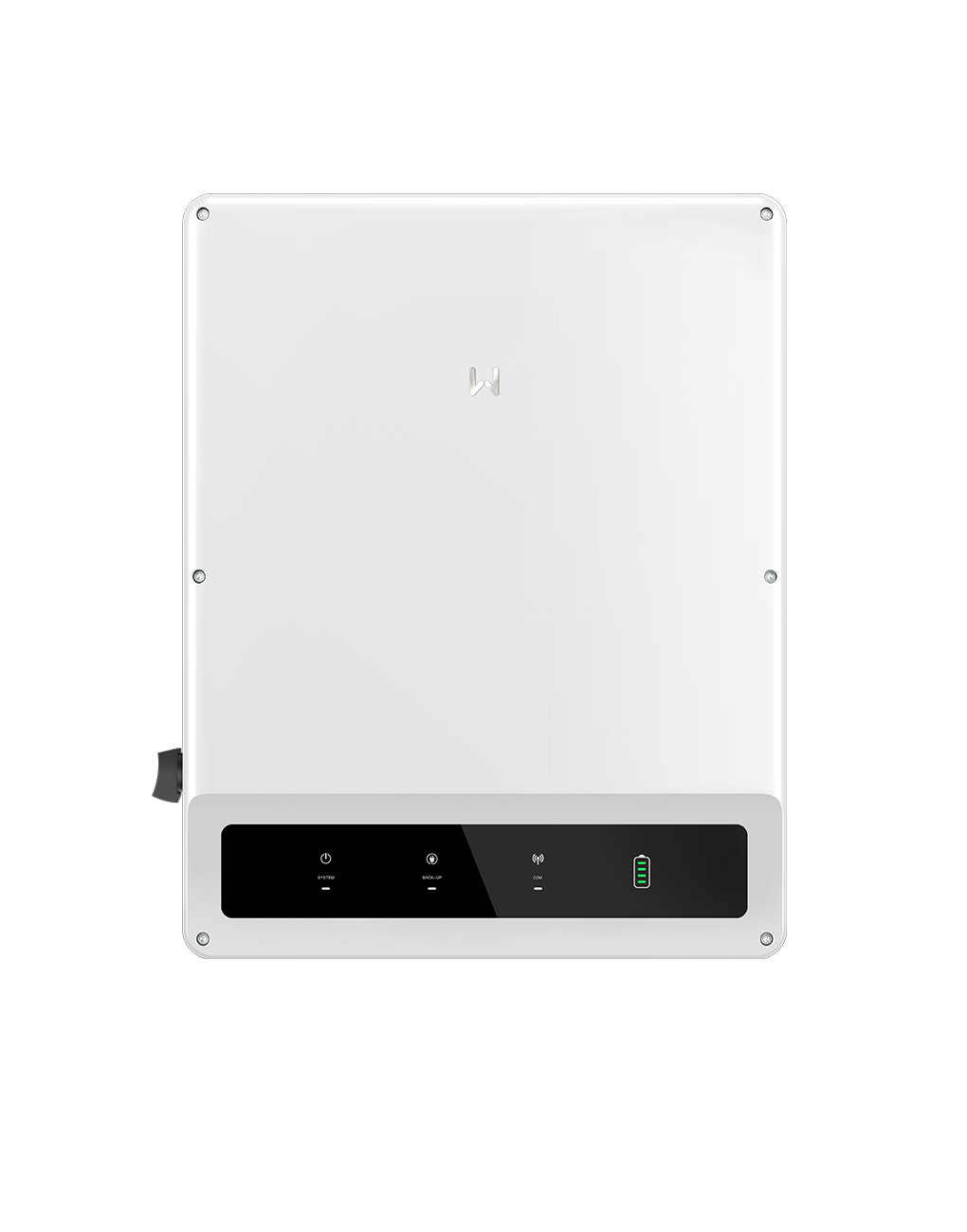

The GoodWe GW25K-ET is a three-phase high-voltage hybrid inverter in GoodWe’s ET 15–30 kW series, with 3 MPP trackers, a high-voltage battery input and a back-up output.
- Official model: GW25K-ET (ET 15–30 kW series, three-phase hybrid)
- Nominal output power: 25000 W
- 3 MPP trackers; max. PV input 37500 W; max. input voltage 1 000 V
- Max. charging / discharging power 25000 W
- IP66; 54 kg; 520 × 660 × 220 mm
Technical specifications (GW25K-ET)
Figures in the table are from GoodWe’s official ET 15–30 kW Series datasheet (English, GoodWe-Single page-20241203-EN-V2.1). Columns on that sheet are GW15K-ET, GW20K-ET, GW25K-ET, GW29.9K-ET and GW30K-ET. The figures below are the GW25K-ET column.
| Official model |
GW25K-ET |
| Type |
Three-phase high-voltage hybrid inverter |
| Battery type |
Li-Ion |
| Nominal battery voltage |
500 V |
| Battery voltage range |
200 – 800 V |
| Battery start-up voltage |
200 V |
| Number of battery inputs |
2 |
| Max. continuous charging / discharging current |
50 A × 2 / 50 A × 2 |
| Max. charging / discharging power |
25000 W / 25000 W |
| Max. PV input power |
37500 W |
| Max. / nominal PV input voltage |
1 000 V / 620 V |
| MPPT operating voltage range |
200 – 850 V |
| PV start-up voltage |
200 V |
| Max. input current / short-circuit current per MPPT |
30 A / 38 A |
| Number of MPP trackers / strings per MPPT |
3 / 2/2/2 |
| Nominal output power / nominal apparent power to grid |
25000 W / 25000 VA |
| Max. apparent power output to utility grid |
27500 VA |
| Max. apparent power from utility grid |
25000 VA |
| Nominal output voltage |
380 / 400 V, 3L / N / PE |
| Nominal AC grid frequency |
50 / 60 Hz (range 45 – 65 Hz) |
| Max. AC current output to / from utility grid |
39.9 A / 37.9 A |
| Power factor |
~1 (adjustable 0.8 leading to 0.8 lagging) |
| Max. THD |
≤ 3.05% |
| Back-up nominal apparent power |
25000 VA |
| Max. output apparent power without grid |
25 000 VA (30 000 VA for 60 s) |
| Max. output current (back-up) |
37.9 A (45.5 A for 60 s) |
| Max. / European / max. battery-to-AC / MPPT efficiency |
98.0% / 97.5% / 97.5% / 99.9% |
| Operating temperature |
−35 °C to +60 °C |
| Relative humidity |
0 – 95% |
| Max. operating altitude |
4 000 m |
| Cooling |
Smart fan cooling |
| Communications |
LED, WLAN + APP; BMS RS485 / CAN; meter RS485; portal WiFi + LAN + Bluetooth |
| Weight |
54 kg |
| Dimensions (W × H × D) |
520 × 660 × 220 mm |
| Noise emission |
< 45 dB |
| Topology |
Non-isolated |
| Self-consumption at night |
< 15 W |
| Ingress protection rating |
IP66 |
| Mounting |
Wall mounted |
Maximum AC output follows local grid regulation. Peak / short-term back-up power can be reached only if PV and battery power is enough. For 1 000 V systems the maximum operating voltage is 950 V. Warranty years are not stated on this datasheet; refer to GoodWe’s official warranty terms.
Official Datasheet: GoodWe ET Series 15–30 kW Datasheet (PDF, English)
Official Product Page: GoodWe ET Series (15–30 kW)
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
