Description

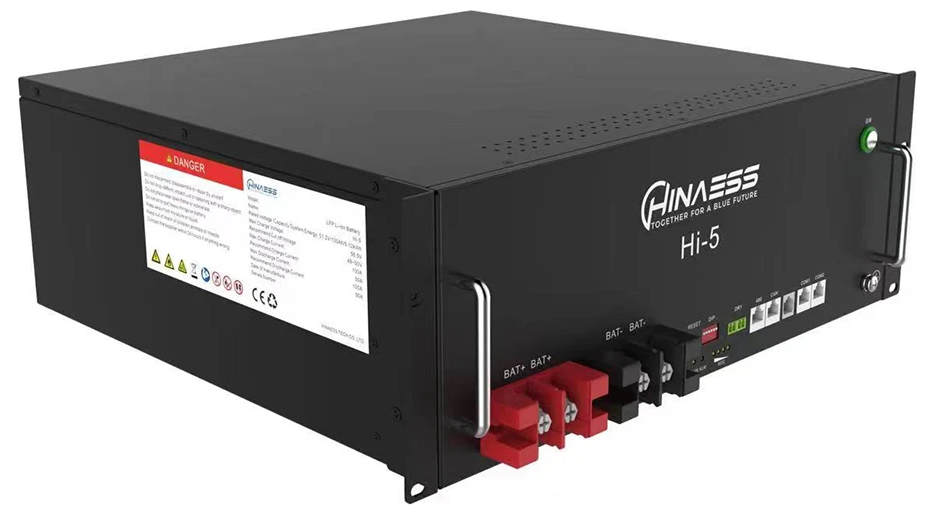

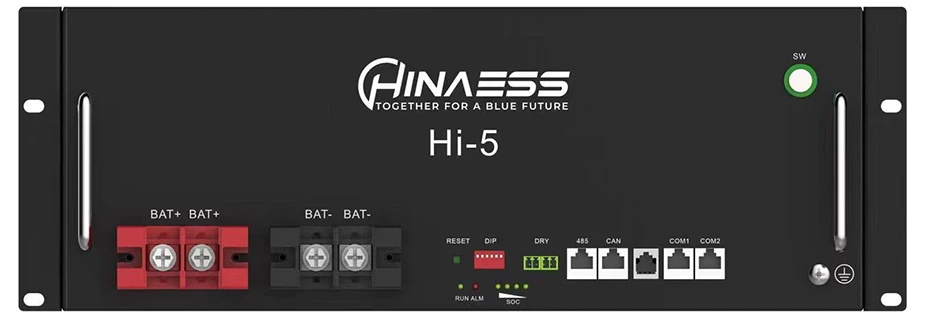

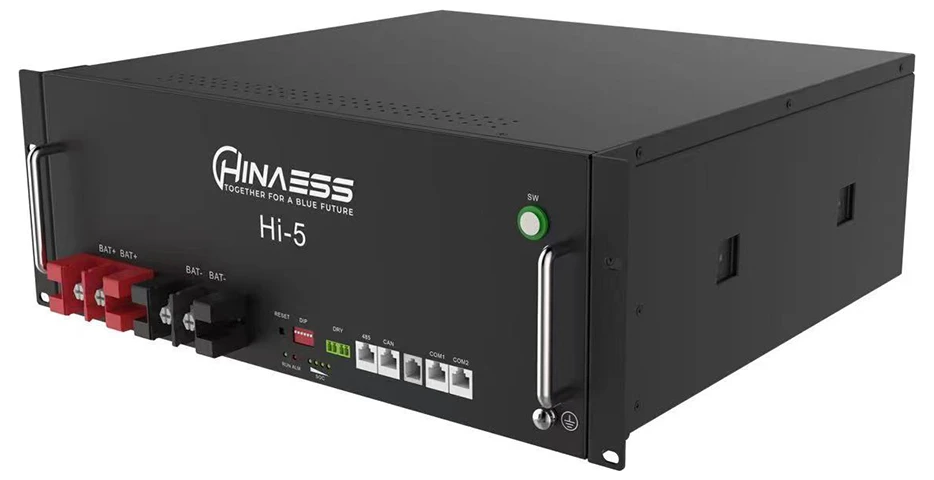

The HinaESS Hi-5 is a 5.12kWh 51.2V LV LiFePO4 battery from HinaESS, designed for residential solar and backup storage systems in South Africa.
- LFP (LiFePO4) cells | Rated energy 5.12kWh | Rated capacity 100Ah | Rated voltage 51.2V
- Charge voltage 56.5V
- Max continuous charge/discharge current 100A (1C)
- Discharge peak current 105A / 15s, 120A / 0.5s
- Up to 32 units in parallel without extra device; a slave battery dropping offline does not affect system running
- CAN / RS485 communication
- Compatible inverters: Victron, Luxpower, Deye, Voltronic, SMA, Goodwe, Growatt, Sofar, Sol-Ark, SRNE, Must
- IP20 enclosure, indoor installation only
- Working temperature −20 to +55°C | Storage −10 to +35°C | Humidity 5–85% RH non-condensing
- Dimensions 481 × 452.6 × 165mm | Weight 50kg
- Protection: over charge/discharge/current/voltage/temperature, short circuit, reverse connection, charge balance, low SOC
- Active balancing charging, low self-consumption, smart BMS
- Flexible remote upgrade with original firmware backup
- Certifications: CE, UN38.3, IEC 62619
- Warranty: 10 years / 6000 cycles (25°C, 90% DoD, 0.5C)
Official Product Page: HinaESS Hi-5
Official Downloads: HinaESS datasheets and manuals
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
