Description

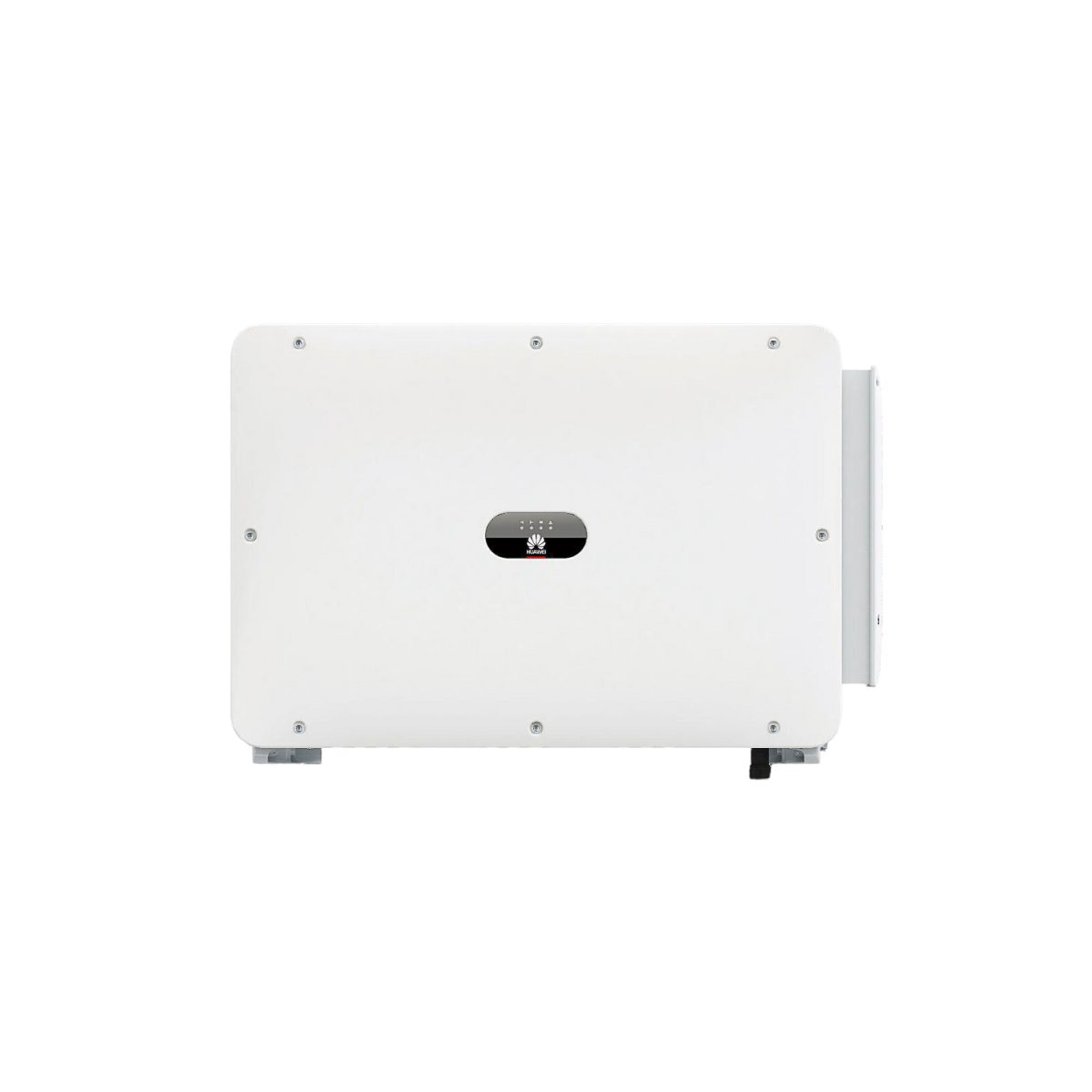

The Huawei SUN2000-100KTL-M2 is a 100 kW three-phase smart PV controller / string inverter with 10 MPP trackers.
- Official model: SUN2000-100KTL-M2
- Nominal AC active power: 100 000 W; max. apparent power 110 000 VA
- 10 MPP trackers; max. input voltage 1 100 V
- IP66; weight with mounting plate ≤ 93 kg; 1 035 × 700 × 365 mm
- Max. efficiency 98.6% at 400 V, 98.8% at 480 V
Technical specifications (SUN2000-100KTL-M2)
Figures in the table are from Huawei’s official SUN2000-100KTL-M2 datasheet (SUN2000-100KTL-M2 Datasheet_20250626), hosted on solar.huawei.com.
| Official model |
SUN2000-100KTL-M2 |
| Type |
Three-phase smart PV controller / string inverter |
| Max. efficiency |
98.6% at 400 V; 98.8% at 480 V |
| European efficiency |
98.4% at 400 V; 98.6% at 480 V |
| Max. input voltage |
1 100 V |
| Max. current per MPPT |
30 A |
| Max. short-circuit current per MPPT |
40 A |
| MPPT operating voltage range |
200 V – 1 000 V |
| Start voltage |
200 V |
| Number of MPP trackers |
10 |
| Nominal AC active power |
100 000 W |
| Max. AC apparent power |
110 000 VA |
| Nominal output voltage |
380 V / 400 V / 480 V, 3W+(N)+PE |
| Nominal / max. output current |
144.4 A / 160.4 A at 400 V; 120.3 A / 133.7 A at 480 V |
| Dimensions (W × H × D) |
1 035 × 700 × 365 mm |
| Weight (with mounting plate) |
≤ 93 kg |
| Protection degree |
IP66 |
Warranty years are not stated on this datasheet; refer to Huawei’s official warranty terms.
Official Datasheet: Huawei SUN2000-100KTL-M2 Datasheet (PDF)
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
