Description

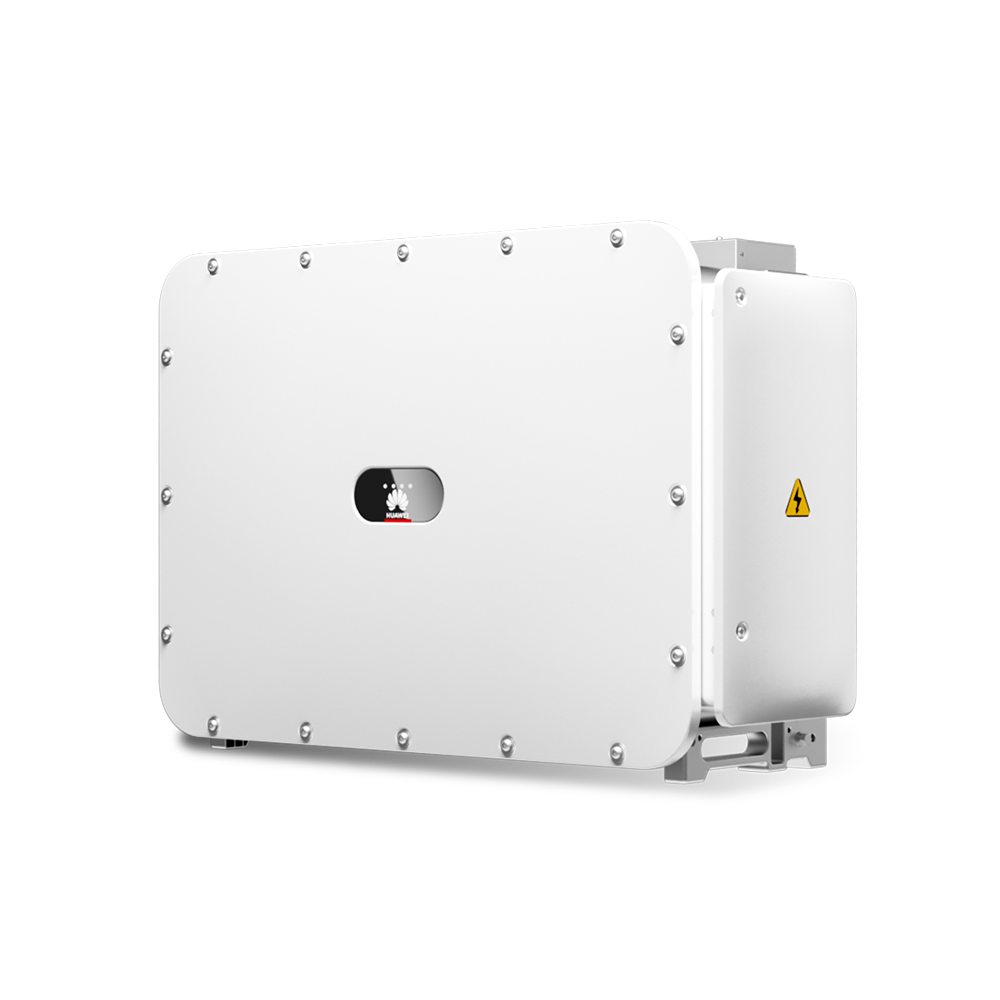

The Huawei SUN2000-150KTL-MG0 listing is Huawei’s SUN2000-150K-MG0 150 kW three-phase smart PV controller, as named on the official English datasheet (the store title uses the 150KTL-MG0 form).
- Official model on the English datasheet: SUN2000-150K-MG0
- Nominal AC active power: 150 000 W; max. apparent power 165 000 VA
- 7 MPP trackers; max. input voltage 1 100 V
- IP66; weight without mounting plate ≤ 99 kg; 1 000 × 710 × 395 mm
- Max. efficiency 98.6% at 400 V, 98.8% at 480 V
Technical specifications (SUN2000-150K-MG0)
Figures in the table are from Huawei’s official English SUN2000-150K-MG0 Smart PV Controller datasheet, hosted on solar.huawei.com.
| Official model (English datasheet) |
SUN2000-150K-MG0 |
| Type |
Three-phase smart PV controller / string inverter |
| Max. efficiency |
98.6% at 400 V; 98.8% at 480 V |
| European efficiency |
98.4% |
| Max. input voltage |
1 100 V |
| Max. current per MPPT |
48 A |
| Max. current per input |
23 A |
| Max. short-circuit current per MPPT |
66 A |
| Start voltage |
200 V |
| MPPT operating voltage range |
200 V – 1 000 V |
| Number of MPP trackers / max. inputs per tracker |
7 / 3 |
| Nominal AC active power |
150 000 W |
| Max. AC apparent power / max. AC active power (cosφ=1) |
165 000 VA / 165 000 W |
| Nominal output voltage |
380 V / 400 V / 480 Vac |
| Rated AC grid frequency |
50 Hz / 60 Hz |
| Nominal / max. output current |
227.9 A / 253.2 A at 380 V; 216.5 A / 240.5 A at 400 V; 180.4 A / 200.5 A at 480 Vac |
| Adjustable power factor |
0.8 leading … 0.8 lagging |
| AC THDi |
< 1% |
| Dimensions (W × H × D) |
1 000 × 710 × 395 mm |
| Weight (without mounting plate) |
≤ 99 kg |
| Operating temperature |
−25 °C to 60 °C |
| Cooling |
Smart air cooling |
| Max. operating altitude |
4 000 m |
| Protection degree |
IP66 |
| Topology |
Transformerless |
Warranty years are not stated on this datasheet; refer to Huawei’s official warranty terms.
Official Datasheet: Huawei SUN2000-150K-MG0 Datasheet (PDF, English)
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
