Description

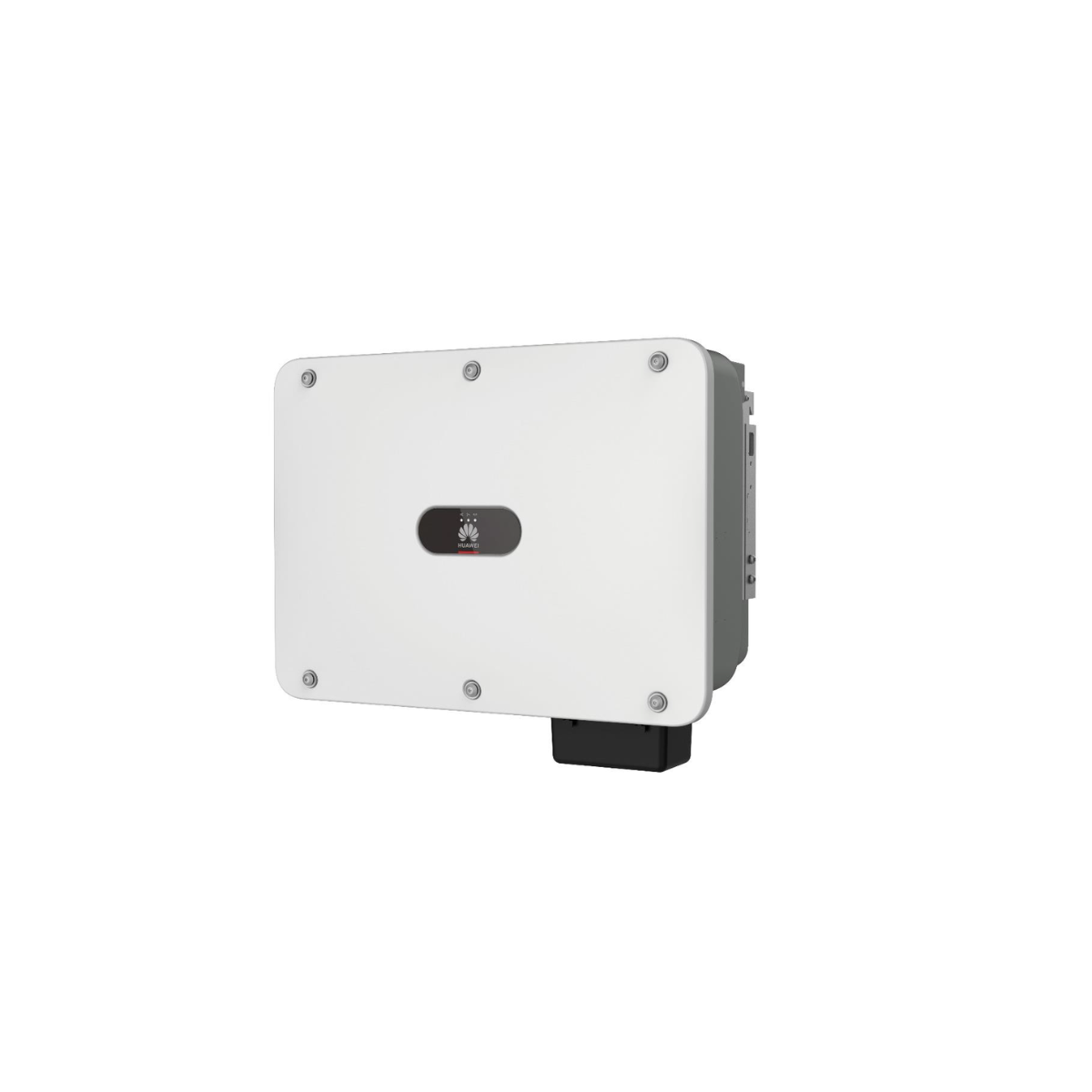

The Huawei SUN2000-50KTL-M3 is a 50 kW three-phase smart PV controller / string inverter.
- Official model: SUN2000-50KTL-M3
- Rated AC active power: 50 000 W; max. apparent power 55 000 VA
- 4 MPP trackers; 8 inputs; max. input voltage 1 100 V
- IP66; 49 kg with mounting plate; 640 × 530 × 270 mm
- Max. / European efficiency: 98.5% / 98.0%
Technical specifications (SUN2000-50KTL-M3)
Figures in the table are from Huawei’s official SUN2000-50KTL-M3 datasheet, hosted on solar.huawei.com.
| Official model |
SUN2000-50KTL-M3 |
| Type |
Three-phase smart PV controller / string inverter |
| Max. / European efficiency |
98.5% / 98.0% |
| Max. input voltage |
1 100 V |
| Max. current per MPPT |
30 A |
| Max. short-circuit current per MPPT |
40 A |
| MPPT operating voltage range |
200 V – 1 000 V |
| Rated input voltage |
600 V |
| Start voltage |
200 V |
| Number of MPP trackers / number of inputs |
4 / 8 |
| Rated AC active power |
50 000 W |
| Max. AC apparent power / max. AC active power (cosφ=1) |
55 000 VA / 55 000 W |
| Rated output voltage |
400 Vac / 480 Vac, 3W+(N)+PE |
| Rated AC grid frequency |
50 Hz / 60 Hz |
| Rated / max. output current |
72.2 A / 79.8 A at 400 Vac; 60.1 A / 66.5 A at 480 Vac |
| Adjustable power factor range |
0.8 leading … 0.8 lagging |
| Max. THD |
< 3% |
| Dimensions (W × H × D) |
640 × 530 × 270 mm |
| Weight (with mounting plate) |
49 kg |
| Operating temperature |
−25 °C to 60 °C |
| Cooling |
Smart air cooling |
| Max. operating altitude |
4 000 m |
| Relative humidity |
0 – 100% RH |
| Protection degree |
IP66 |
| Topology |
Transformerless |
| Nighttime power consumption |
≤ 5.5 W |
Warranty years are not stated on this datasheet; refer to Huawei’s official warranty terms.
Official Datasheet: Huawei SUN2000-50KTL-M3 Datasheet (PDF)
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
