Description

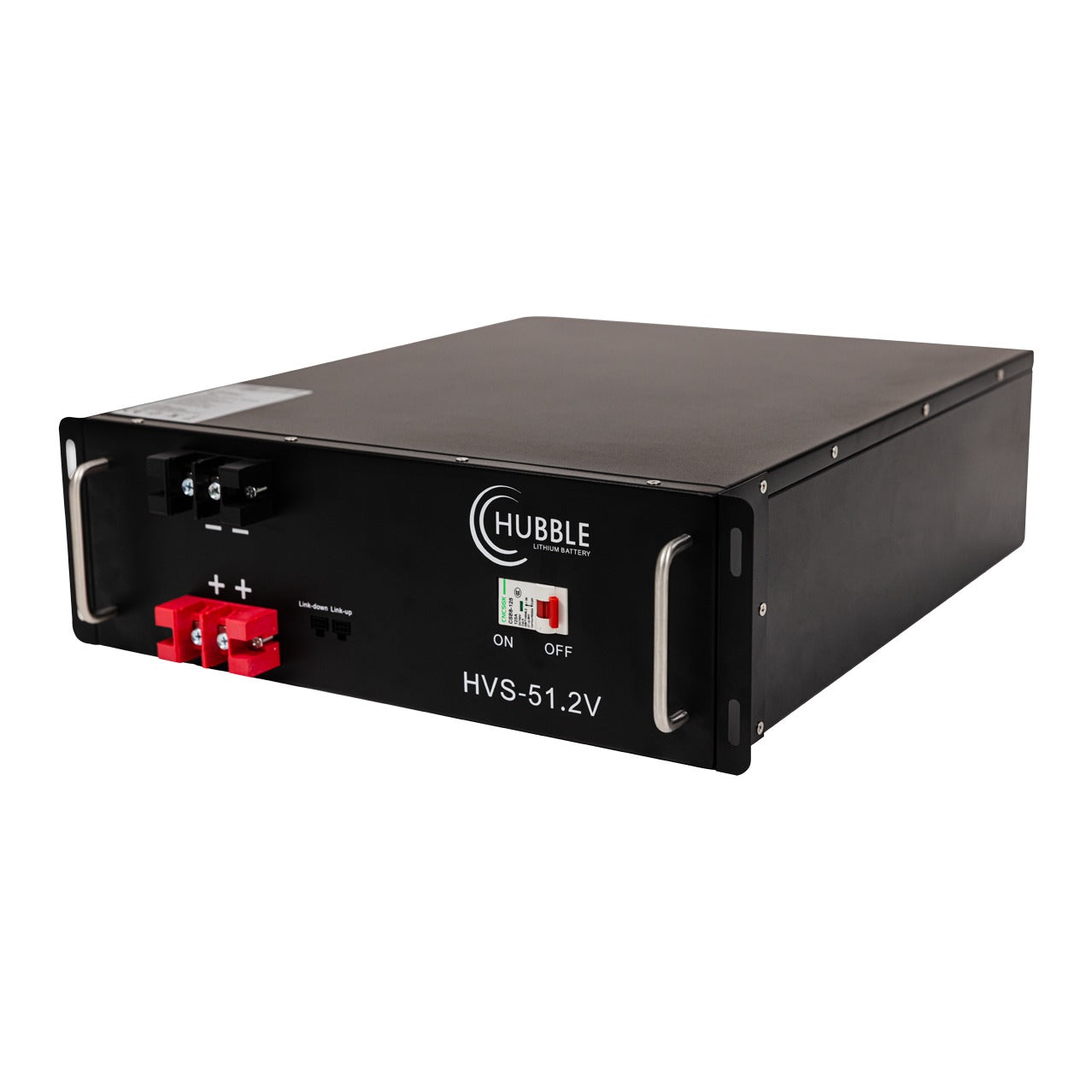

The Hubble HV 5.12kWh Battery Module (Grey) is a 51.2V 100Ah LiFePO4 rack-mount module for building Hubble 100Ah high-voltage battery racks (HV-307 to HV-768, 30.7–76.8kWh) for commercial and large residential systems. It is an add-on/expansion module: a Hubble HV BMU and cabinet are required and are sold separately.
- Module: 16 new prismatic LiFePO4 cells | 51.2V nominal | 100Ah rated (5HR) | 5.12kWh
- Max continuous charge/discharge current: 100A (1C) | Depth of discharge: 100%
- Cycle life at 1C: ±6000 cycles at 50% DoD, above 3000 cycles at 100% DoD | Design life ±15 years
- Rack systems from 6 to 15 modules (307–768V nominal) | Parallel up to 8 ESS systems per string
- Smart BMU with touch screen, Wi-Fi Cloudlink monitoring and CAN bus communication with leading HV inverter brands (BMU sold separately)
- Protection: electronic circuit breaker, BMS voltage protection, current limiting
- Operating temperature: 0 to +55°C (charge and discharge)
- Black/dark grey baked lacquer steel case | Rack-mount in a 47U cabinet (2200 x 610 x 810mm, sold separately)
- Weight: approx. 50kg per module (derived from Hubble's published rack weights)
- Certification: CE, UN38.3, GB/T 31484/31485/31486-2015
- Indoor installation
Official Datasheet: Hubble High Voltage Catalogue (100Ah HV Racks)
Installation Manual: Hubble HV Manual
Official Product Page: Hubble High Voltage
Available on backorder – please contact us for lead time.
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
