Description

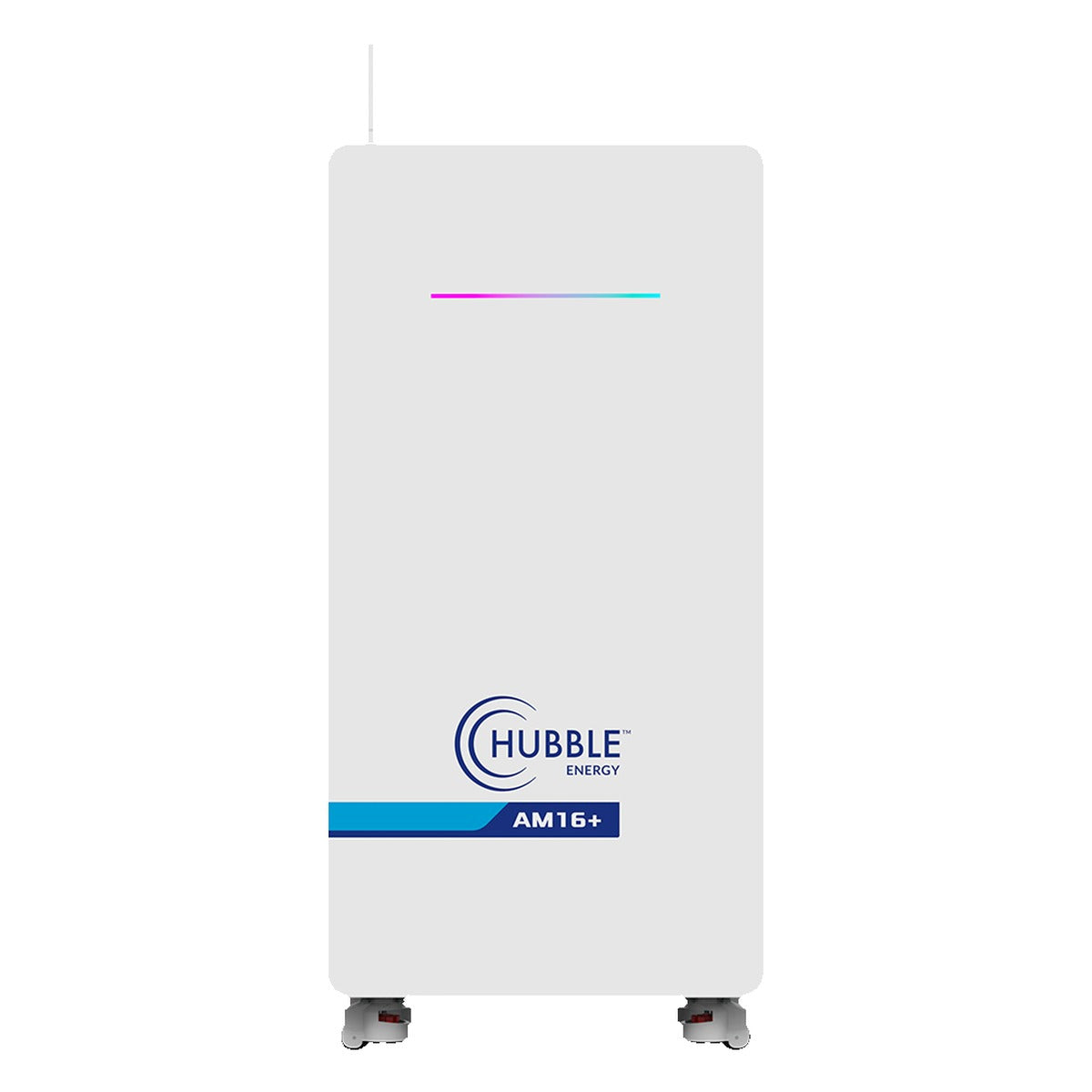

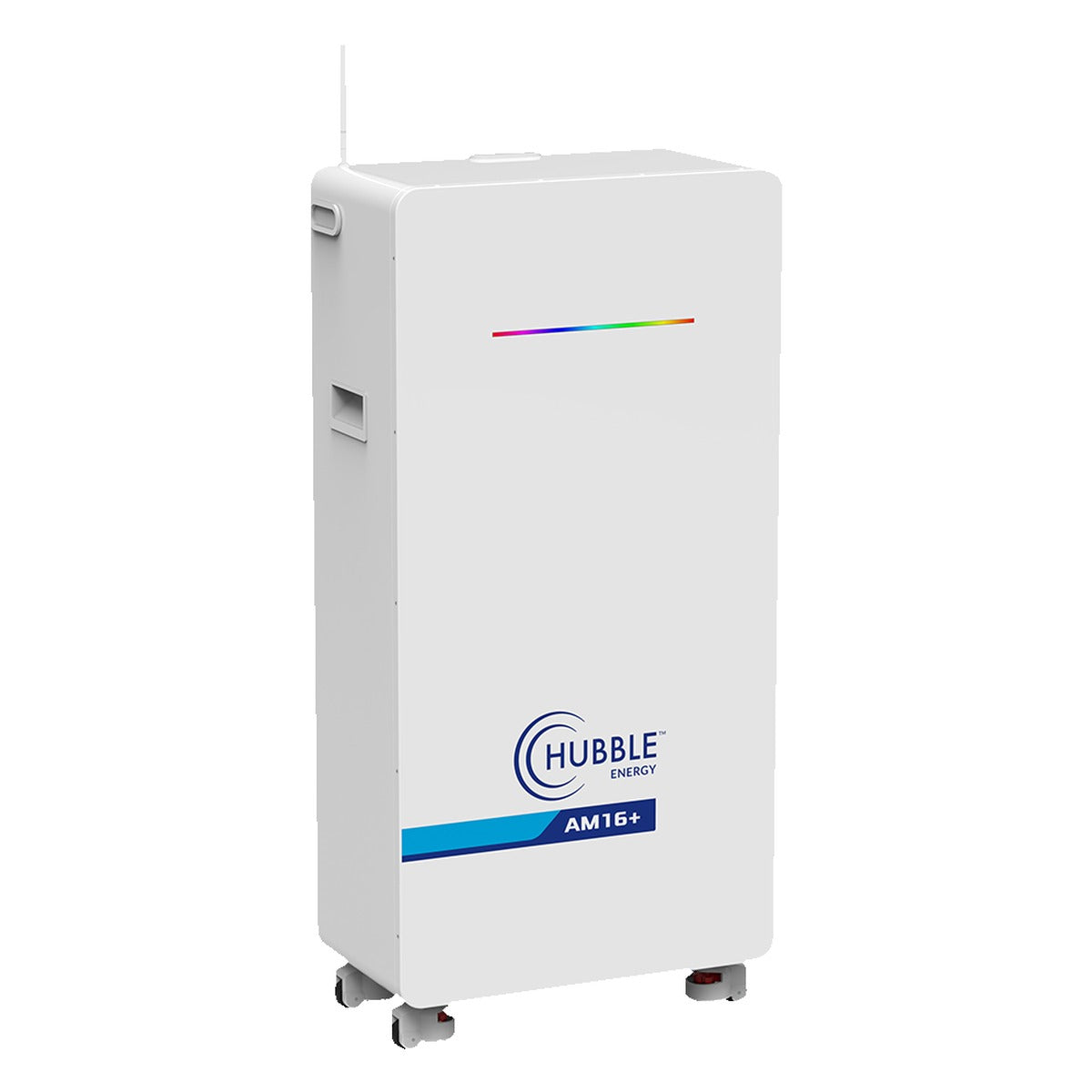

The Hubble Lithium AM-16+ is a 16.1kWh, 51.2V lithium iron phosphate (LiFePO4) battery for home and small-business solar and backup power systems. It stands on the floor on lockable wheels, so no wall mounting is needed. A Cloudlink Wi-Fi monitoring module is built in, so you can monitor and manage the battery through the Hubble Cloudlink mobile app or web portal. The battery keeps working normally without Wi-Fi.
-
Model: Hubble AM16+ (AM-16+)
-
Nominal energy: 16.1 kWh
-
Rated capacity: 314 Ah
-
Nominal voltage: 51.2 Vdc
-
Chemistry: LiFePO4 (LFP), 16 cells per battery
-
Operating voltage range: 43.2 – 58.4 Vdc
-
Charging voltage: 55.2 Vdc
-
Inverter cut-off voltage: 49 V recommended / 47 V minimum
-
Charge current: 130 A max (0.5C)
-
Discharge current: 200 A max (157 A continuous)
-
Cycle life: unlimited cycles within the 10-year Hubble Energy warranty (Ts & Cs apply)
-
BMS: passive cell balancing, intelligent charge-current limiter, and protection against over-charge, over-discharge, over-current, short circuit and over/under temperature. Self-consumption ≤2 W
-
Monitoring: built-in Cloudlink Wi-Fi (802.11 b/g/n)
-
Communication: CAN / RS485 / RS232
-
Expansion: up to 15 batteries in parallel (never connect in series)
-
Dimensions (H × W × D): 970 × 500 × 260 mm
-
Weight: approx. 131.5 kg
-
Installation: floor-standing on lockable wheels, with a wall support bracket included
-
Operating temperature: -10 °C to 50 °C
-
Humidity: 15% to 75%
-
Certification: CE, UN38.3
-
Use: indoor installation only. Do not install outdoors, in direct sunlight or in damp environments (per the Hubble installation manual). No IP rating is published.
-
In the box: AM16+ battery, wall support bracket with fixings, 1.5 m RJ45 battery link cable, 3 m RJ45 communication cable, 1 m red and 1 m black battery cables
Warranty: 10-year Hubble Energy warranty (Ts & Cs apply).
Official documents: AM-16+ datasheet | AM16+ user manual
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
