Description

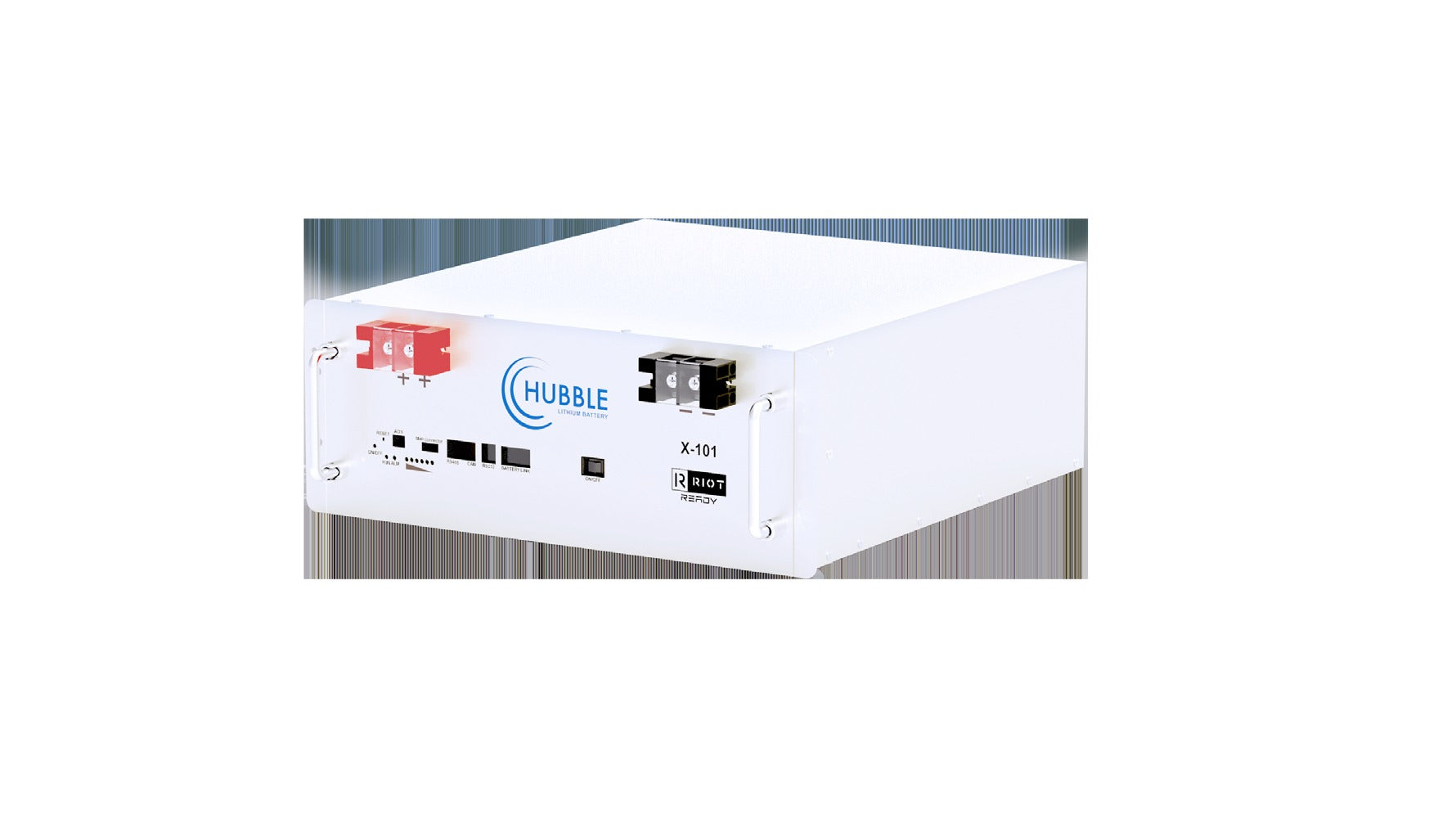

The Hubble Lithium X-101 is a 48 V, 5.5 kWh low-voltage lithium battery in Hubble Energy’s X-series. Officially it is a 1C pack using new lithium-ion prismatic cells, with built-in CAN-bus, optional Cloudlink monitoring and an internal fire-suppression system.
- 5.5 kWh nominal energy; 48 V nominal; rated capacity 116 Ah (official note: Ah design capacity is nominally between 110 Ah and 120 Ah)
- New lithium-ion prismatic cells (as stated on the official low-voltage datasheet)
- Maximum continuous charge / discharge current 105 A; 1.0C; equalized charge voltage 53.8 V
- Parallel up to 15 packs with full communications
- Weight approx. 42 kg; dimensions 442 × 495 × 177.5 mm (W × D × H)
Figures in the table are from Hubble Energy’s official Low Voltage Solutions brochure on hubbleenergy.com (X-101 technical data table). The official recommended charge current to prolong battery life is 30 A. Hubble’s later X5+ is a different official model (5.12 kWh / 51.2 V) and is not this listing.
Technical specifications
| Official model |
Hubble X-101 |
| Cells |
New lithium-ion prismatic cells (as stated) |
| Nominal energy |
5.5 kWh |
| Rated capacity |
116 Ah |
| Nominal voltage |
48 V |
| Equalized charge voltage |
53.8 V |
| Maximum continuous charge current |
105 A |
| Maximum continuous discharge current |
105 A |
| C rating |
1.0C |
| Depth of discharge |
100% |
| Cycle life @ 1C |
±6 000 cycles at 50% DOD; above 3 000 cycles at 100% DOD |
| Design life |
±15 years |
| Parallel |
Up to 15 packs with full communications |
| Ports |
1× CAN-bus, 2× battery-link ports |
| Monitoring |
Optional Cloudlink |
| Weight |
Approx. 42 kg |
| Dimensions (W × D × H) |
442 × 495 × 177.5 mm |
| Operating temperature |
Charge 0 °C to +55 °C; discharge −20 °C to +55 °C; storage −20 °C to +55 °C |
| Outer package |
White bake lacquer steel case |
| Protection |
Electronic circuit breaker, BMS voltage protection, current limiting |
| Certification |
CE, UN38.3, GBT31484-2015, GBT31485-2015, GBT31486-2015 |
| Other official features |
Internal fire-suppression system (as stated on the official X-series brochure page) |
Warranty: The official Hubble low-voltage brochure states a 10-year warranty (terms and conditions apply). Refer to Hubble Energy’s official warranty terms for this product.
Official Datasheet: Hubble Energy Low Voltage Solutions – X-101 (PDF, official, hubbleenergy.com)
Official Product Page: Hubble X-series
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
