| Official model / store SKU |

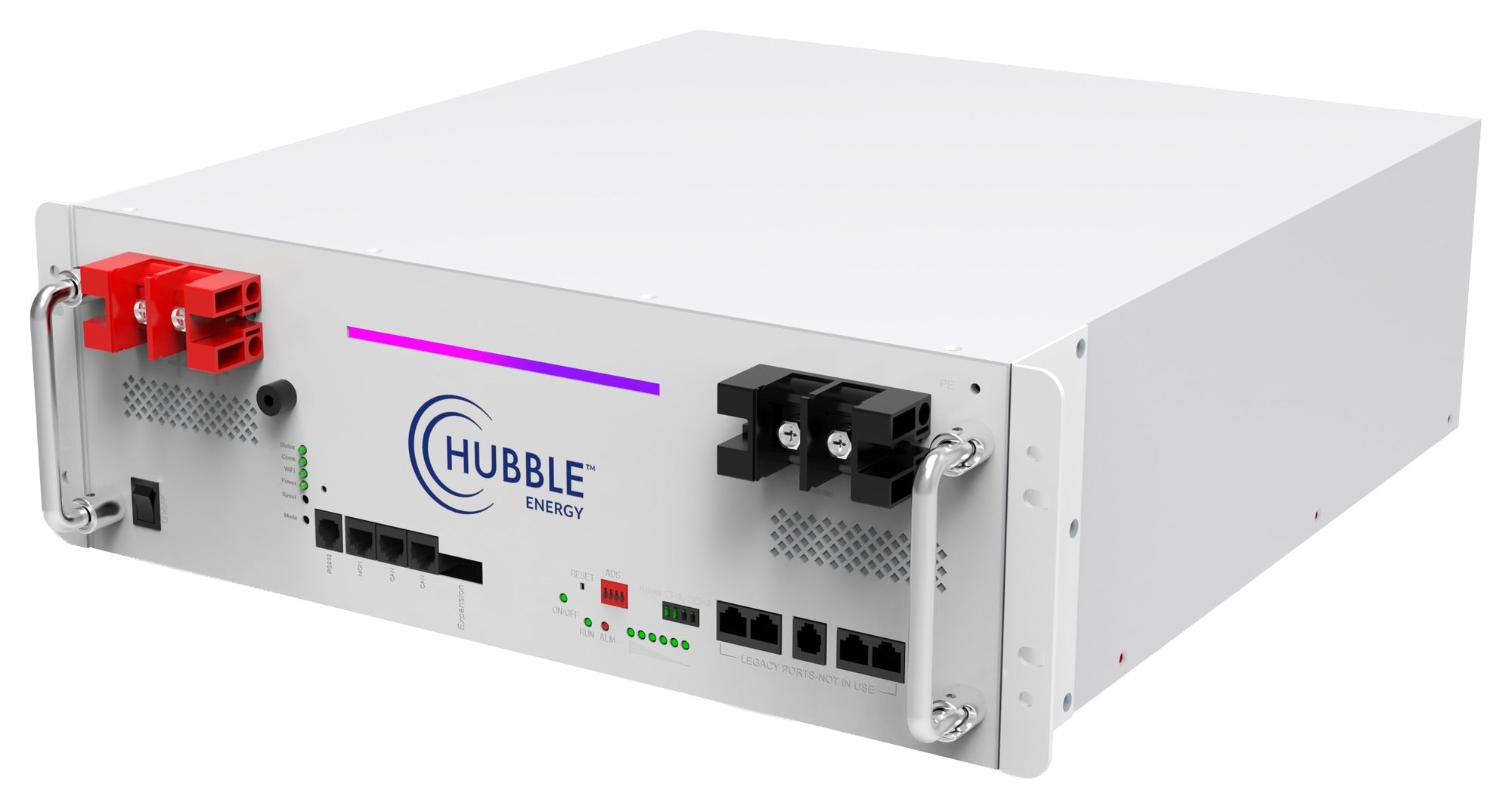

Hubble X5+ / X-5+ |
| Type |
Rack-mounted 1C LiFePO4 battery with integrated Cloudlink |
| Nominal energy / rated capacity |
5.12 kWh / 100 Ah |
| Nominal voltage |
51.2 V |
| Battery type |
LiFePO4 (LFP), 16 cells per battery |
| Inverter cut-off / charging voltage |
49 V / 56 V |
| Charge / discharge current |
100 A max. charge (30 A recommended to prolong life); 100 A max. discharge |
| Cycle life |
Unlimited cycles at 1C within the Hubble Energy 10-year warranty (terms apply) |
| BMS |
Passive cell balancing; current limiter reduces charge to 20 A if it exceeds 100 A; over-charge, over-discharge, over-current, short-circuit, over- and under-temperature protection |
| Communication |
CAN / RS485 / RS232; Wi-Fi 2.4 GHz IEEE 802.11 b/g/n |
| Dimensions (W × D × H) / weight |
440 (482) × 490 × 153 mm / 48 kg |
| Installation |
Rack mounted |
| Operating / storage temperature |
−10 °C to 50 °C / 10 °C to 50 °C |
| Humidity / certification |
15% to 75%; CE, UN38.3, MSDS |
| Scalability |
Up to 120 units |
