Description

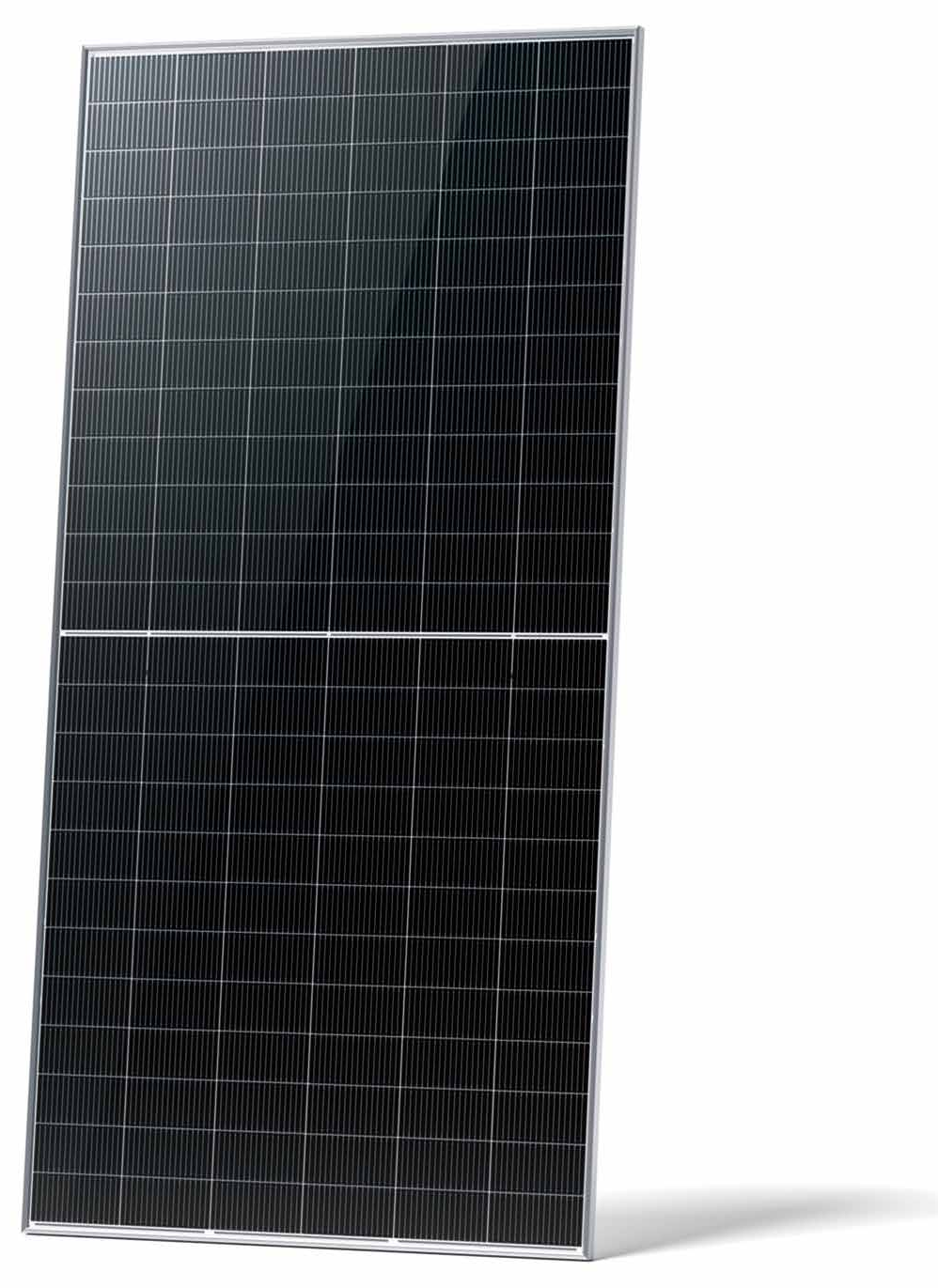

The Jinko Tiger Neo JKM590N-72HL4-BDV is a 590W N-type TOPCon bifacial dual-glass solar panel (144 half-cells) with a silver frame and JK03M connectors, designed for residential, commercial and utility solar systems in South Africa.
- Maximum power (STC): 590Wp | Power tolerance 0 to +3%
- Module efficiency (STC): 22.84%
- Vmp 44.17V | Imp 13.36A | Voc 52.90V | Isc 14.07A
- Bifacial power (BNPI, rear 135W/m²): up to 649Wp
- N-type mono-crystalline TOPCon cells, 144 (72 x 2) | HOT 3.0 and SMBB technology
- Dual glass: 2.0mm anti-reflection front glass + 2.0mm heat-strengthened back glass
- Anodised aluminium alloy frame (silver)
- Junction box IP68 | Protection class II | Fire type Class C
- Connector type: JK03M | 4.0mm² cables, (+) 400mm / (-) 200mm
- Max system voltage: 1500V DC (IEC)
- Temperature coefficient of Pmax: -0.29%/°C | Voc -0.25%/°C | Isc +0.045%/°C
- Operating temperature: -40°C to +70°C
- Mechanical load: 5400Pa front, 2400Pa rear | Anti-PID
- Dimensions: 2278 x 1134 x 30mm | Weight: 31.0kg
- Packing: 36 pcs per pallet, 720 pcs per 40ft HQ container
- IEC 61215:2021 / IEC 61730:2023, IEC 61701, IEC 62716
- 12-year product warranty | 30-year linear power warranty (1% first year, 0.40% per year, 87.4% at 30 years)
Official Datasheet: JinkoSolar JKM575-600N-72HL4-BDV Datasheet
Official Product Page: JinkoSolar Tiger Neo
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
