Description

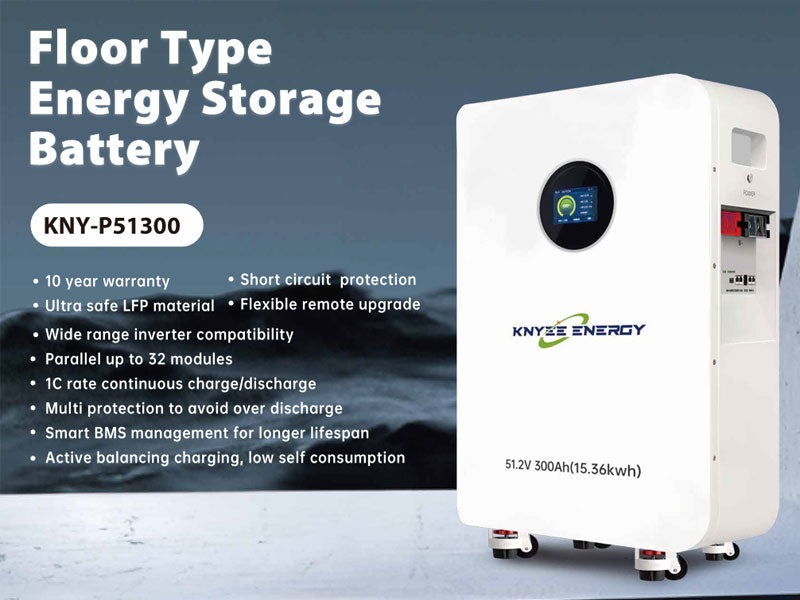

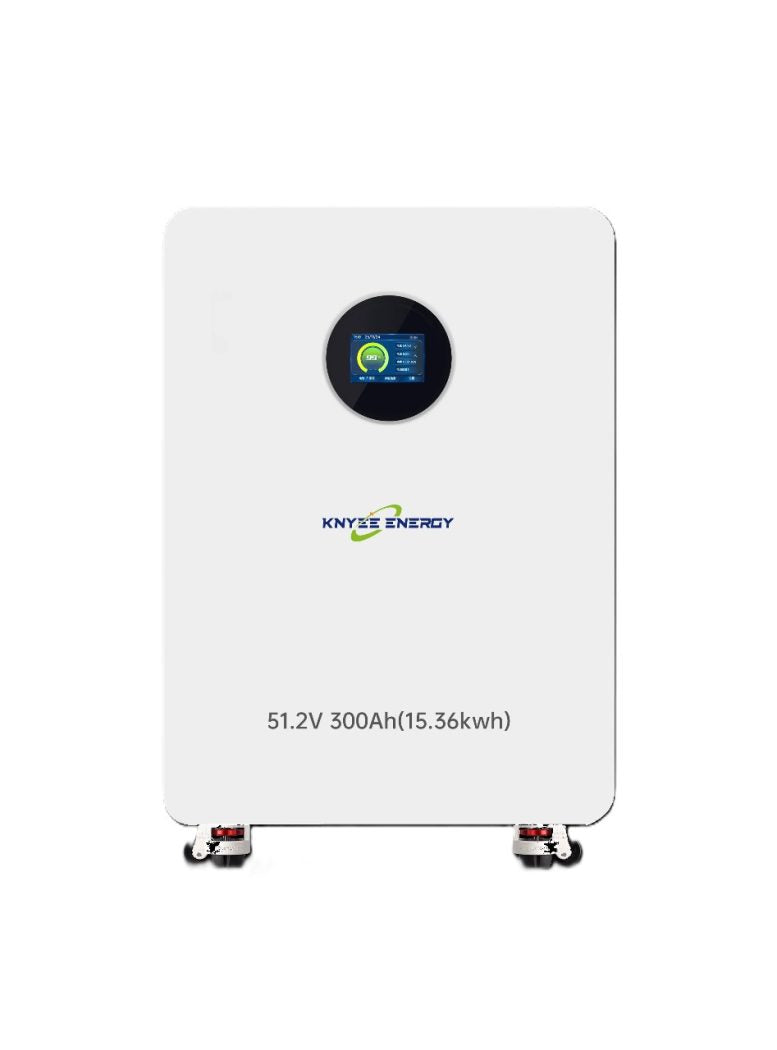

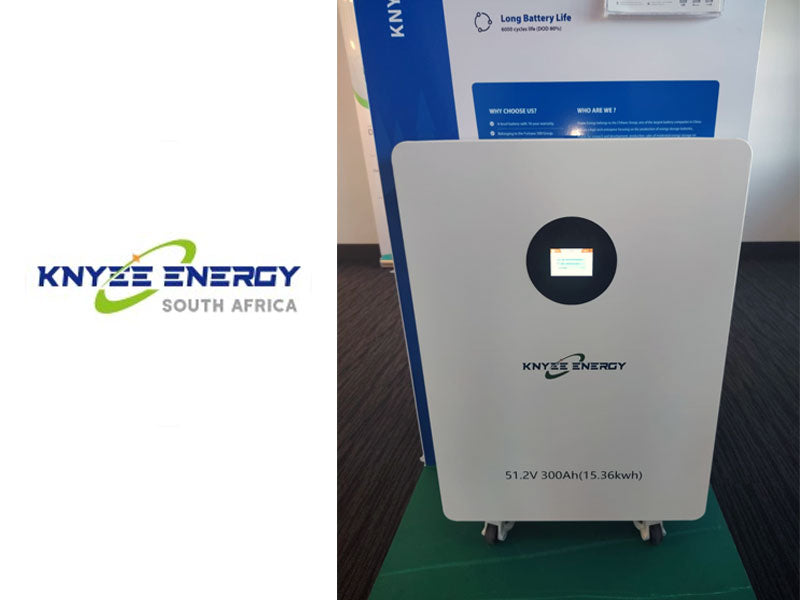

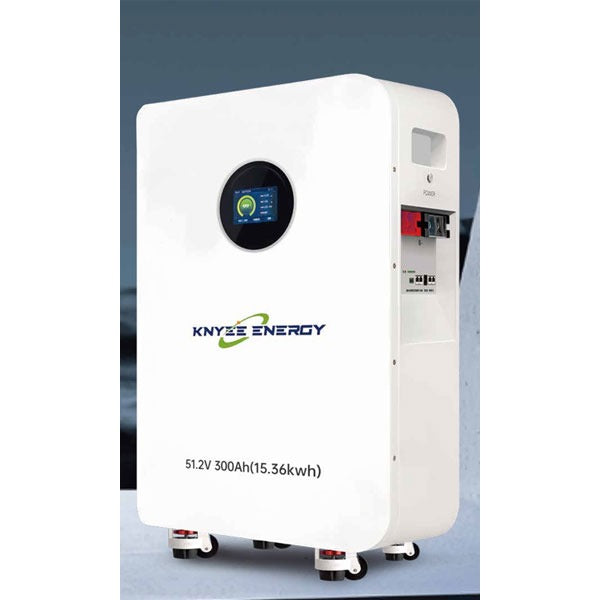

The Knyee KNY-P51300 is a 15.36kWh 51.2V low-voltage LiFePO4 floor-standing battery from Knyee Energy (CHILWEE Group), designed for residential solar and backup systems in South Africa.
- Nominal voltage 51.2V DC | voltage range 44-58.4V
- Nominal capacity 300Ah | rated energy 15.36kWh
- LiFePO4 cells, 6000 cycles @ 80% DoD
- Max charge/discharge current 200A | recommended 100A
- Recommended charge voltage 58V | max 58.4V
- Discharge cut-off 44V (recommended) / 43.2V | recovery 48V
- Communication: CAN / RS485 / RS232 | up to 32 modules in parallel
- BMS protection: temperature, over-current, short-circuit, over-charge, over-discharge, low-voltage
- IP65 protection, suitable for indoor and outdoor installation
- Floor-standing sheet-metal enclosure | 800 x 580 x 255mm | 130kg net (150kg gross)
- Operating temperature: charge 0-55°C, discharge -20-65°C
- Certification: CE, UN38.3, Class 9
- Works with popular 48V hybrid inverters with CAN/RS485 battery communication (e.g. Hinen, Solis, Deye, Sunsynk)
- 10-year warranty (Knyee)
Official Datasheet: Knyee KNY51300 15.36kWh Datasheet
Official Product Page: Knyee KNY51300
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
