Description

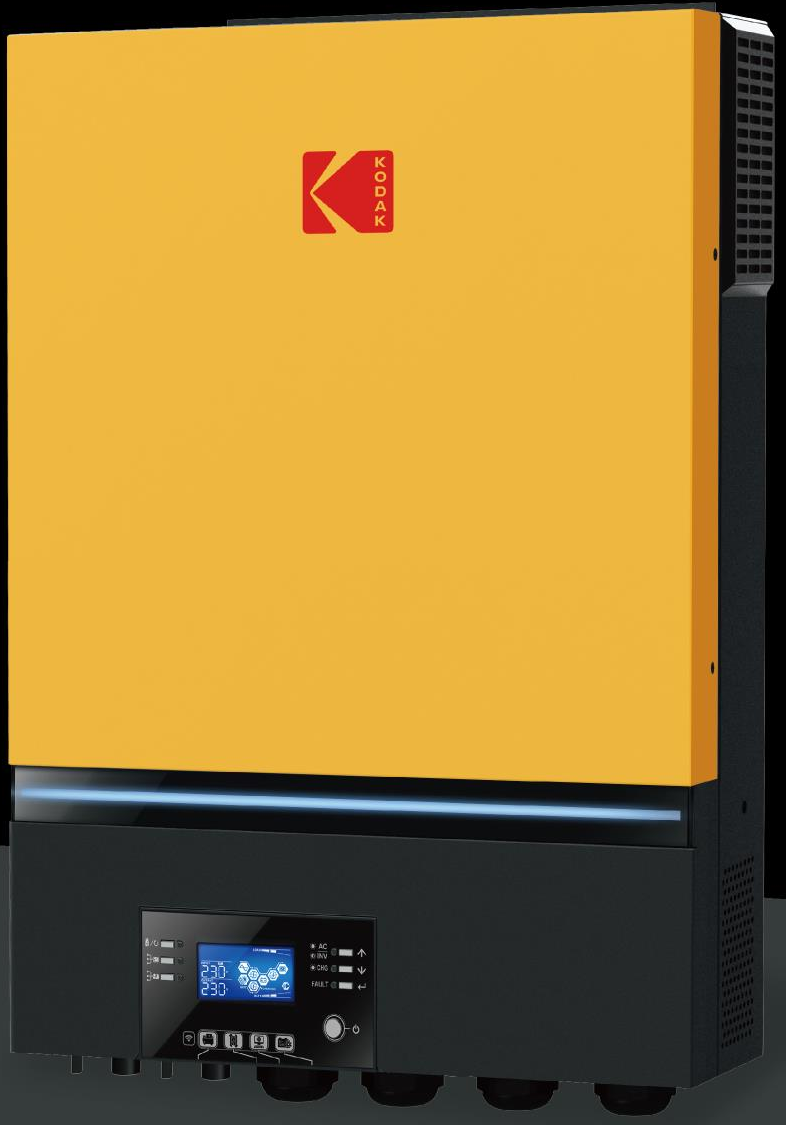

The Kodak OG-7.2 is a 7.2kW single-phase 48V off-grid solar inverter with dual MPPT solar charging, designed for off-grid and backup solar systems in South Africa.
- LCD display with touch keys | IP rating not stated in the official datasheet; wall-mounted unit
- Rated output power: 7200W | Pure sine wave | 230V ±5%, 50/60Hz
- Surge capacity: 2 x rated power for 5 seconds
- Nominal battery voltage: 48V DC (lead-acid or lithium)
- Utility charging current: 80A | 3-step charging
- Solar input rated power: 8000W | dual MPPT, max 18A per input
- Max PV open-circuit voltage: 500V | MPPT range: 90-450V | Start-up voltage 80V
- AC input: 230V nominal | max AC input current 60A
- Transfer time: 10ms (UPS) / 20ms (appliances)
- Peak efficiency: 93% (inverter) | >95% in line mode
- Up to 6 units in parallel (parallel model)
- Optional 12V DC output (100W)
- Overload protection and output short-circuit protection
- Operating temperature -10°C to 50°C | Humidity 5-95% non-condensing
- Dimensions (D x W x H): 147.4 x 432.5 x 553.6mm | Net weight 18.4kg
- CE safety certification
- 3-year warranty
Official Datasheet: Kodak OG-3.6/OG-7.2 Installation & User Manual
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
