Description

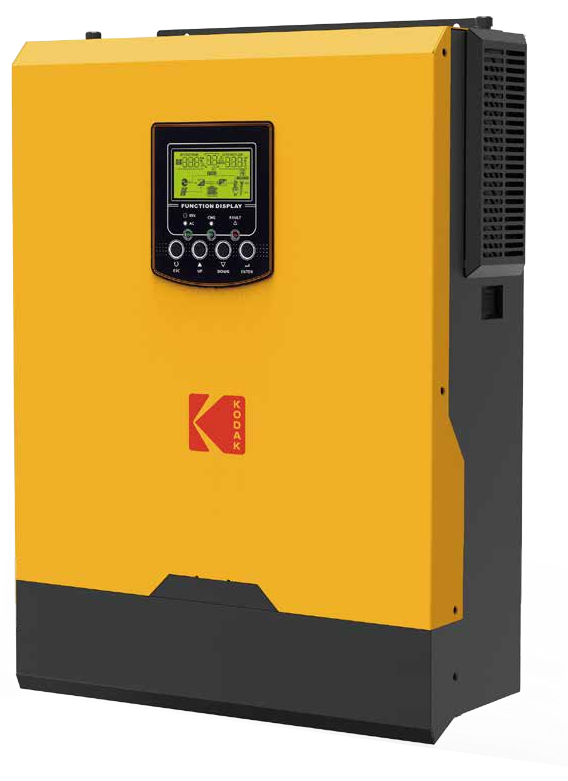

The Kodak OG-LP3.2 is a 3.2kW single-phase 24V off-grid solar inverter with a built-in MPPT solar charger, designed for small off-grid and backup solar systems in South Africa.
- LCD control panel, IP20 protection, indoor installation only
- Rated power: 3200VA/3200W | Pure sine wave | 230V ±5%
- Surge power: 6400VA
- Battery voltage: 24V DC | Floating charge 27V | Overcharge protection 32V
- Battery independent design | Battery equalisation function
- MPPT solar charger | Max PV array power: 3000W
- Max PV open-circuit voltage: 450V | MPPT range: 60-400V
- Max solar charge current: 80A | Max AC charge current: 80A | Max charge current 80A
- Configurable charging current and AC/solar charger priority via LCD
- AC input: 230V | Selectable range 170-280V (PCs) or 90-280V (appliances) | 50/60Hz auto sensing
- Transfer time: 10ms (PCs) / 20ms (appliances)
- Peak efficiency: 93%
- Built-in WiFi for mobile monitoring (app) | RS232/RS485/CAN | BMS communication
- Overload, over-temperature and short-circuit protection | Built-in anti-dust kit
- Operating temperature -10°C to 50°C | Humidity 5-95% non-condensing
- Dimensions (D x W x H): 110 x 288 x 390mm | Net weight 7.2kg
- 3-year warranty
Official Datasheet: Kodak OG-LP 3.2/5.6 Datasheet
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
