Description

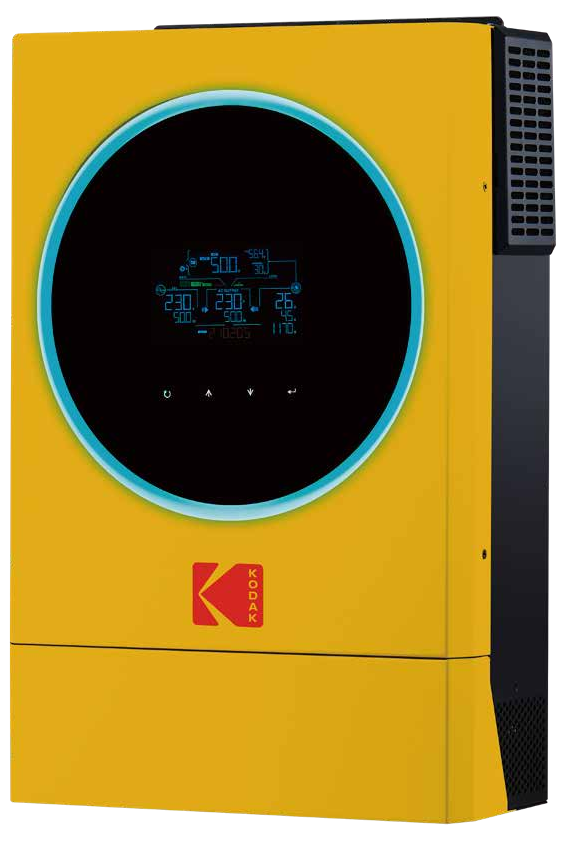

The Kodak OG-PLUS6.2 is a 6.2kW single-phase 48V off-grid solar inverter with zero-transfer-time output and dual outputs, designed for off-grid and backup solar systems in South Africa.
- Removable 4.3" colour touch LCD with RGB LED ring | IP rating not stated in the official datasheet; wall-mounted unit
- Rated power: 6200VA/6200W | Pure sine wave | 230V ±5%
- Zero (0ms) transfer time from AC to battery mode | 4ms inverter to bypass
- Battery voltage range: 40-66V DC (48V) | Floating charge 54V
- MPPT solar charger | Max PV array power: 7000W
- Max PV open-circuit voltage: 500V | MPPT range: 120-450V
- Max solar charge current: 120A | Max AC charge current: 120A
- Grid input: 230V (110-280V), 50/60Hz | PF ≥0.98 | THDi ≤10%
- Output THD ≤3% (linear) / ≤5% (non-linear)
- Parallel operation up to 9 units
- Dual output for smart load control
- Built-in WiFi (app) | USB On-the-Go | USB/RS232/RS485/dry contact
- Reserved BMS port (RS485 or CAN-bus) for lithium batteries
- Selectable input range for home appliances and PCs | configurable AC/solar priority
- Operating temperature -10°C to 50°C | Humidity 5-95% non-condensing
- Dimensions (D x W x H): 140 x 295 x 468mm | Net weight 12.0kg
- 3-year warranty
Official Datasheet: Kodak OG-PLUS6.2 Datasheet
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
