Description

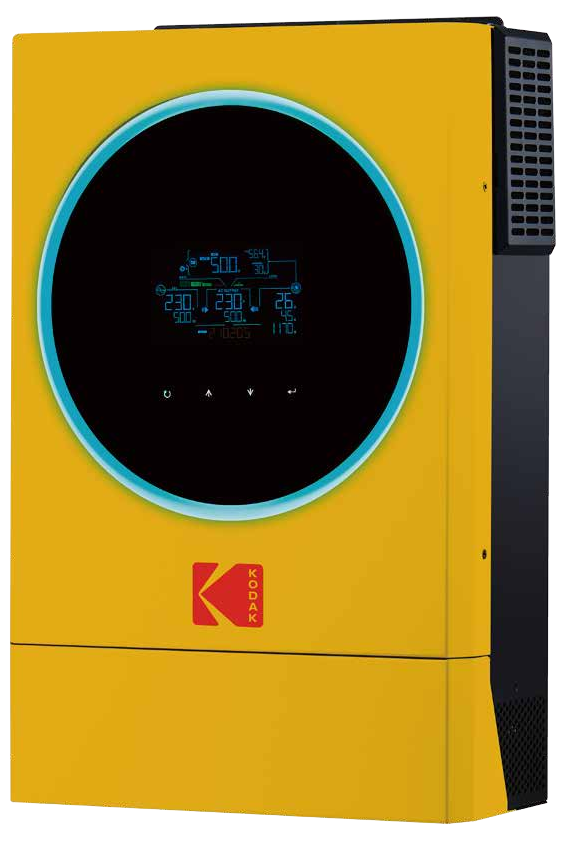

The Kodak OGS5.6 is a 5.6kW single-phase 48V off-grid solar inverter with a built-in MPPT solar charger, designed for off-grid and backup solar systems in South Africa.
- 4.3" colour LCD with touchable keys and RGB LED status ring | IP rating not stated in the official datasheet; wall-mounted unit
- Rated power: 5600VA/5600W | Pure sine wave | 230V ±5%
- Overload capacity: 5s @150%, 10s @110-150%, 100ms @200%
- Battery voltage: 48V DC | Floating charge 54V | Overcharge protection 66V
- Battery independent function
- MPPT solar charger | Max PV array power: 6000W
- Max PV open-circuit voltage: 450V | MPPT range: 120-450V
- Max solar charge current: 120A | Max AC charge current: 120A
- AC input: 230V (110-280V) | 50/60Hz auto sensing
- Transfer time: 10ms (PCs) / 20ms (appliances)
- Peak efficiency: 93%
- Parallel operation up to 9 units
- Built-in WiFi (app) | USB On-the-Go | data log events stored in the inverter
- Reserved communication port for BMS | USB/RS232/RS485/dry contact
- Operating temperature -10°C to 50°C | Humidity 5-95% non-condensing
- Dimensions (D x W x H): 140 x 295 x 468mm | Net weight 12.0kg
- 3-year warranty
Official Datasheet: Kodak OGS3.6/OGS5.6 Datasheet
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
