Description

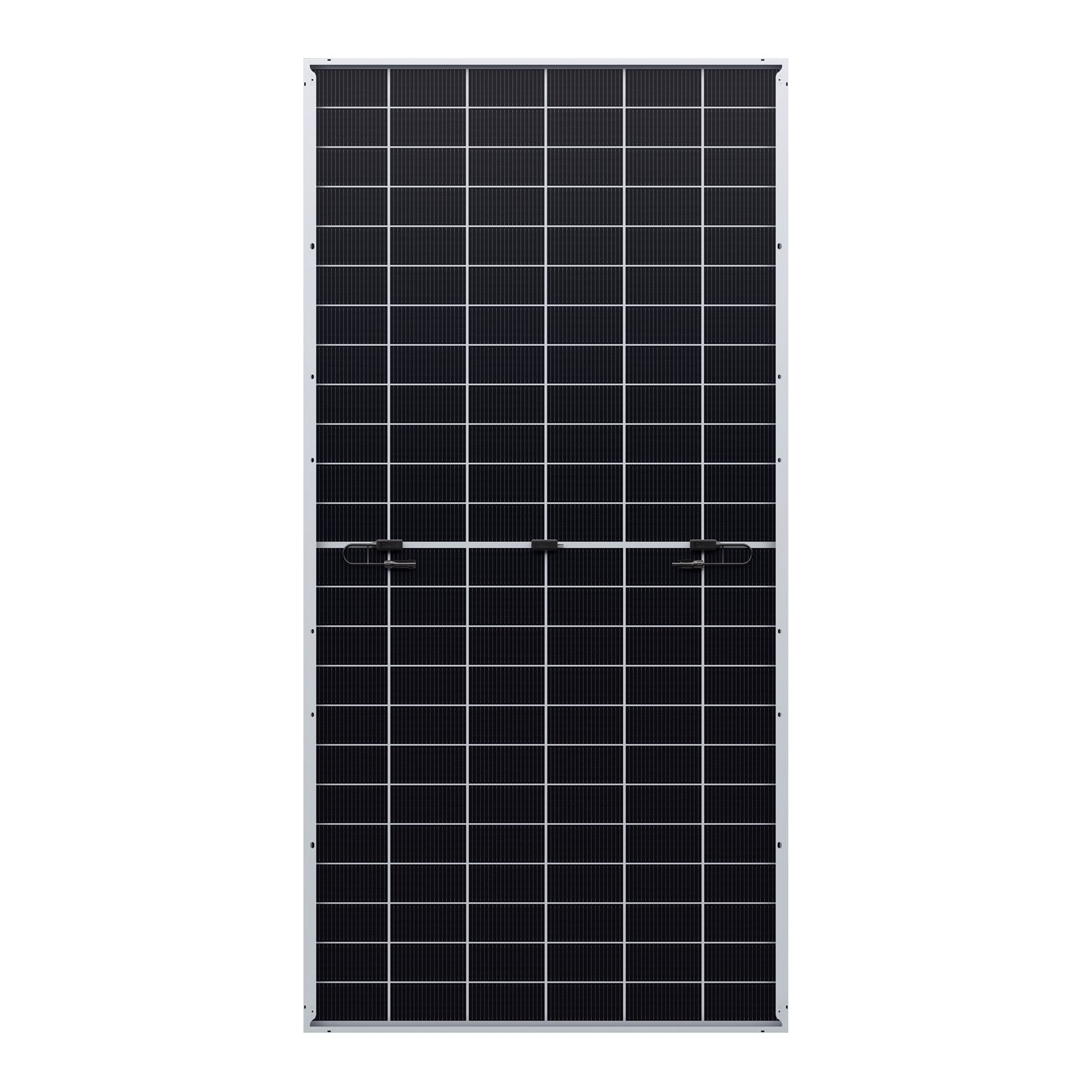

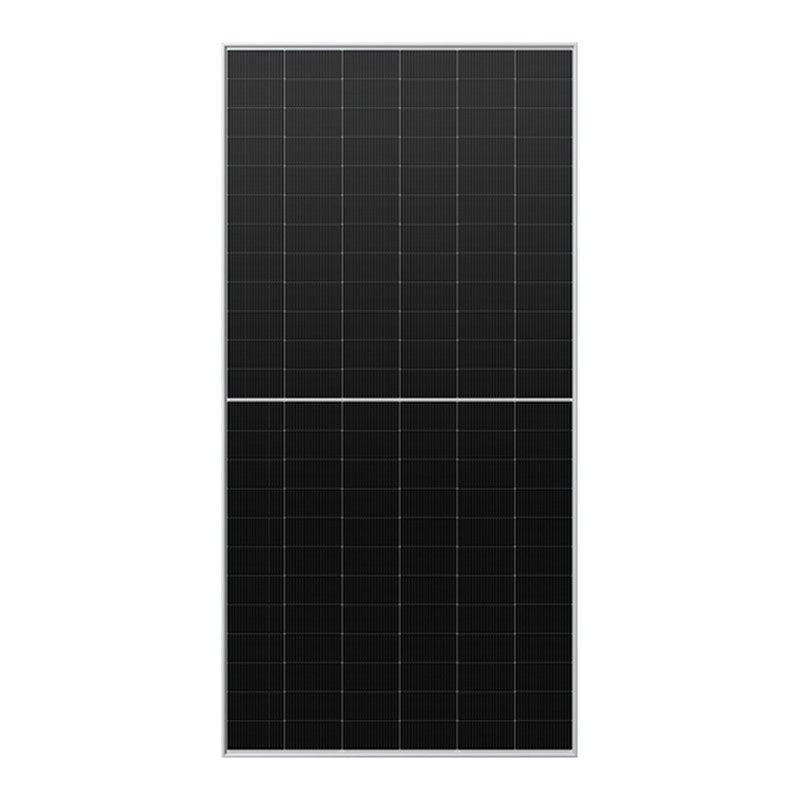

The LONGi Hi-MO 7 LR5-72HGD-590M is a 590W, 144 half-cell bifacial module from LONGi's Hi-MO 7 range, using n-type HPDC (Hybrid Passivated Dual-junction Cell) technology. The dual-glass build and 80% bifaciality harvest extra energy from reflected light, making it well suited to ground-mount and commercial rooftop projects.
- 590W front-side output with 22.8% module efficiency
- N-type HPDC (Hybrid Passivated Dual-junction Cell) half-cell technology for lower operating temperature and reduced mismatch losses
- Bifacial dual glass (2.0 + 2.0mm heat-strengthened) – bifaciality 80 ±5%
- Low degradation: <1% in year one and 0.4% per year thereafter
- Rated for 5400Pa front / 2400Pa rear static load and 25mm hail
- 12-year product and 30-year linear power warranty
Specifications (LR5-72HGD-590M)
| Series |
LONGi Hi-MO 7 |
| Maximum power (Pmax) |
590W |
| Open-circuit voltage (Voc) |
51.63V |
| Short-circuit current (Isc) |
14.38A |
| Voltage at max power (Vmp) |
43.44V |
| Current at max power (Imp) |
13.59A |
| Module efficiency |
22.8% |
| Power tolerance |
0 ~ +3% |
| Cells |
144 half-cells (6×24), n-type HPDC |
| Bifaciality |
80 ±5% |
| Temperature coefficient of Pmax |
-0.280%/°C |
| Maximum system voltage |
DC 1500V (IEC/UL) |
| Maximum series fuse rating |
30A |
| Operating temperature |
-40°C to +85°C |
| Dimensions |
2278 × 1134 × 30mm |
| Weight |
31.8kg |
| Glass / frame |
Dual glass 2.0 + 2.0mm / anodised aluminium |
| Junction box |
IP68, three diodes |
| Warranty |
12 years product / 30 years linear power |

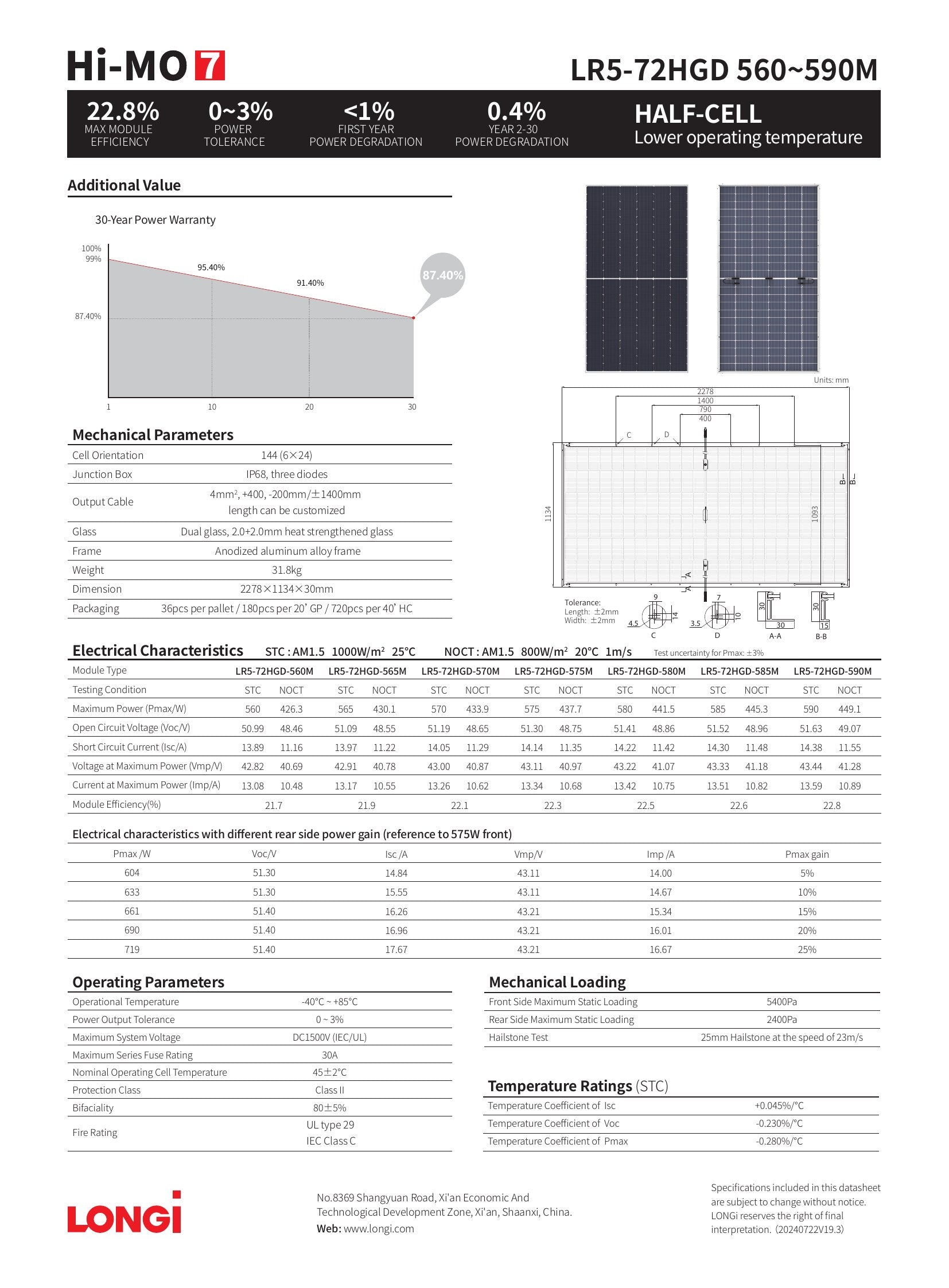

Official Datasheet: LONGi LR5-72HGD 560–590M Datasheet
Available on backorder – please contact us for lead time.
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
