Description

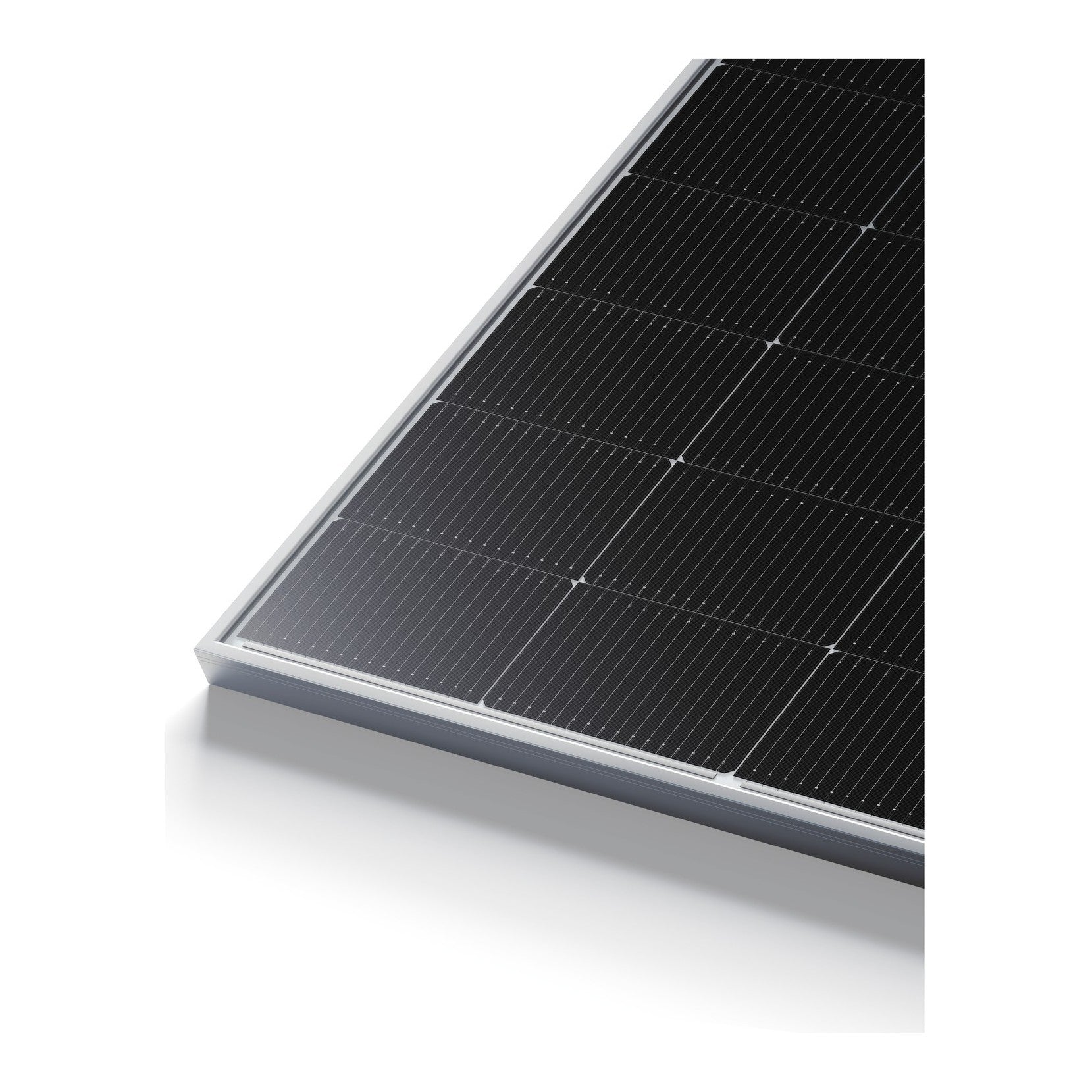

The LONGi Hi-MO 7 LR8-66HGD-620M is a 620W, 132 half-cell bifacial module from LONGi's Hi-MO 7 range, built on n-type HPDC (Hybrid Passivated Dual-junction Cell) technology. Its dual-glass construction and up to 80% bifaciality make it a strong choice for ground-mount, carport and large rooftop systems where rear-side gain adds real yield.
- 620W front-side output with 23.0% module efficiency
- N-type HPDC (Hybrid Passivated Dual-junction Cell) half-cell technology for lower operating temperature
- Bifacial dual glass (2.0 + 2.0mm heat-strengthened) – bifaciality 80 ±5%
- Low degradation: <1% in year one and 0.4% per year thereafter
- Positive power tolerance of 0 to +3%
- Rated for 5400Pa front / 2400Pa rear static load and 25mm hail
- 12-year product and 30-year linear power warranty
Specifications (LR8-66HGD-620M)
| Series |
LONGi Hi-MO 7 |
| Maximum power (Pmax) |
620W |
| Open-circuit voltage (Voc) |
48.78V |
| Short-circuit current (Isc) |
16.05A |
| Voltage at max power (Vmp) |
40.91V |
| Current at max power (Imp) |
15.16A |
| Module efficiency |
23.0% |
| Power tolerance |
0 ~ +3% |
| Cells |
132 half-cells (6×22), n-type HPDC |
| Bifaciality |
80 ±5% |
| Temperature coefficient of Pmax |
-0.280%/°C |
| Maximum system voltage |
DC 1500V (IEC/UL) |
| Maximum series fuse rating |
35A |
| Operating temperature |
-40°C to +85°C |
| Dimensions |
2382 × 1134 × 30mm |
| Weight |
33.5kg |
| Glass / frame |
Dual glass 2.0 + 2.0mm / anodised aluminium |
| Junction box |
IP68, three diodes |
| Certifications |
IEC 61215, IEC 61730, UL 61730 |
| Warranty |
12 years product / 30 years linear power |

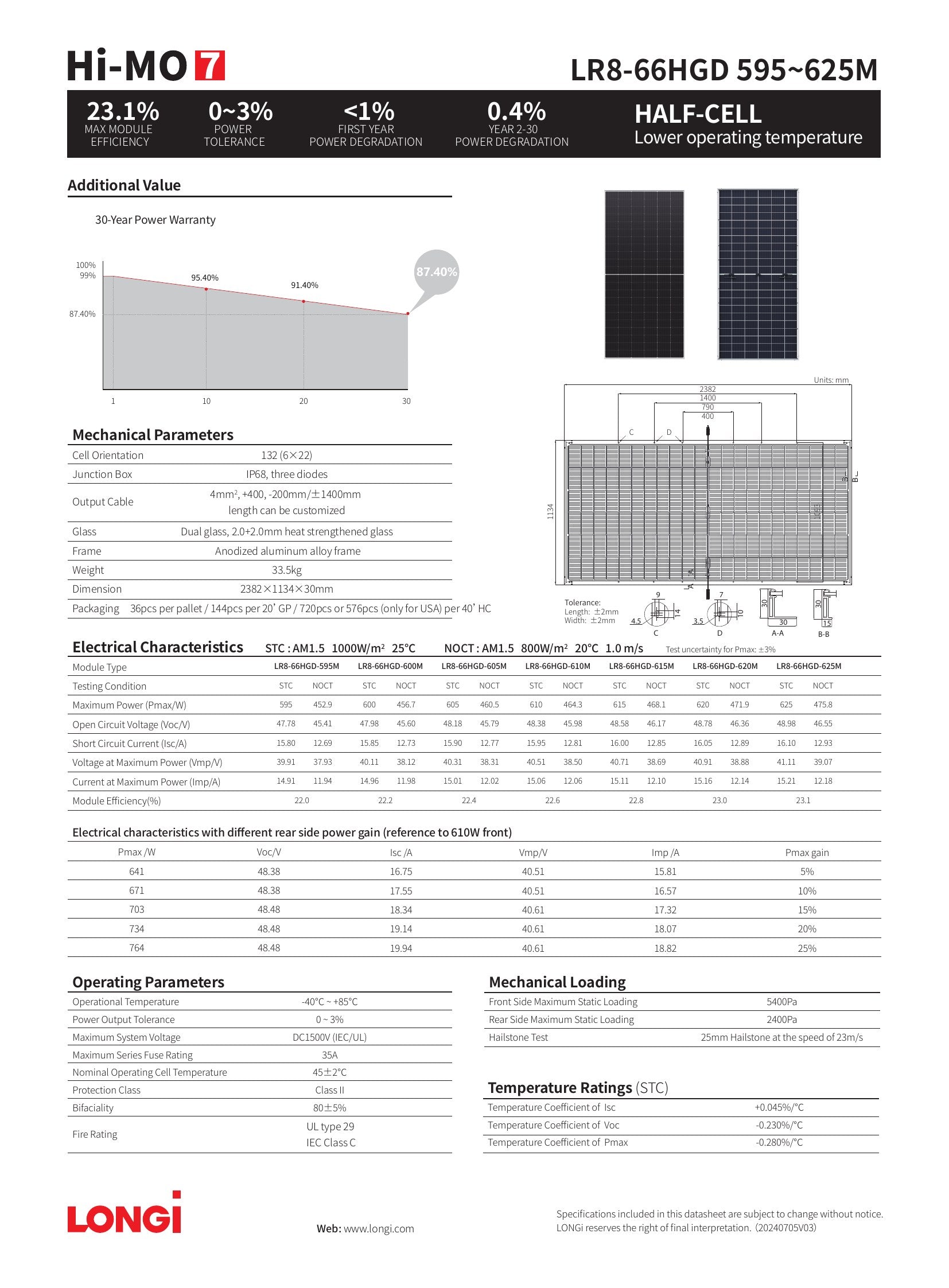

Official Datasheet: LONGi LR8-66HGD 595–625M Datasheet
Available on backorder – please contact us for lead time.
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
