Description
The Luminous Litcore Ultra LU100AH 25.6V (LUM-LCU-2.56) is a 2.56kWh 25.6V lithium battery with a touch screen display, from the Luminous Litcore Ultra range, designed for residential and commercial solar storage in South Africa.
- Touch screen LCD + button display | IP rating not stated in the official datasheet
- Usable energy: 2560Wh | Rated capacity: 100Ah | Cell configuration: 8S1P
- Nominal voltage: 25.6V | Operating voltage range: 20-29.2V
- Charging voltage: 29.2V | End-of-discharge voltage: 20V
- Max continuous charge current: 100A | Max continuous discharge current: 100A
- Standard charge: CC 20A, CV 29.2V, cut-off 5A
- Standard discharge: CC 50A, end voltage 20V
- Recommended depth of discharge: 90% | Efficiency >99%
- Cycle life: 6000 cycles (0.5C, 25°C, 80% DoD)
- Up to 15 batteries in parallel (manual configuration)
- Communication: RS485 and CAN | compatible with a wide range of high-frequency inverters
- Multi-level protection: voltage, current and temperature
- Operating temperature: charge 0-55°C, discharge -10-60°C
- Storage >1 month: 0-35°C at 30-50% SoC
- Terminal: WL-CNT120-A
- Weight: 26kg
- 5-year warranty
Official Datasheet: Luminous Litcore Ultra Technical Data Sheet
Official Product Page: Luminous Lithium Solutions
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.

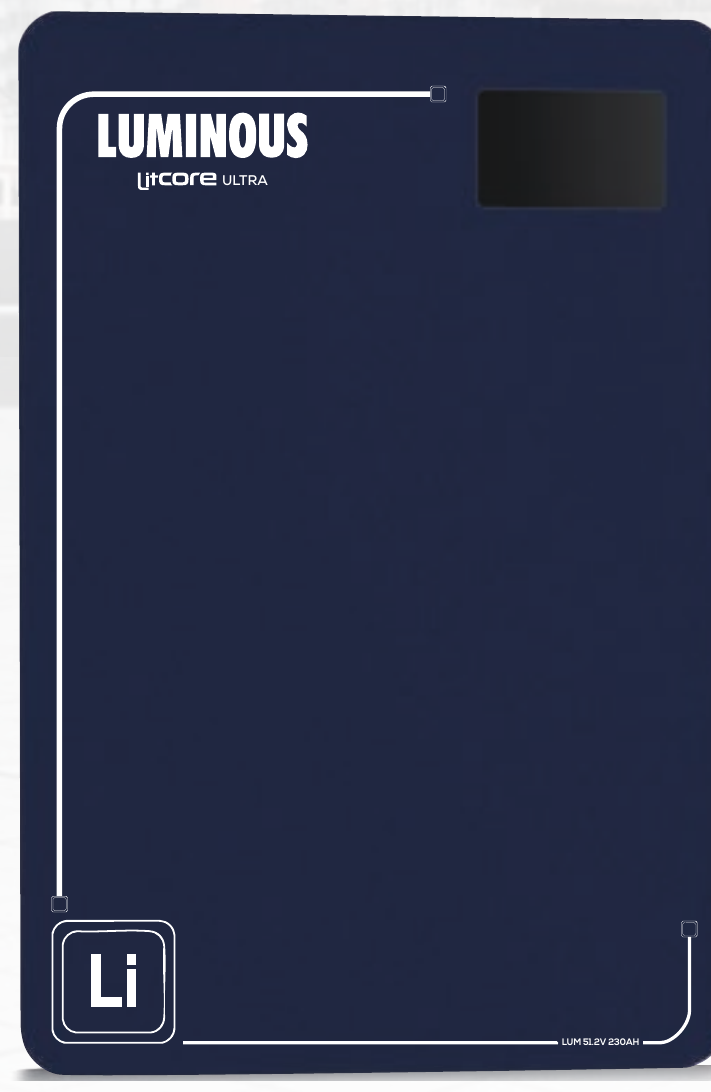

Please note: the image is for illustration purposes only. The actual product may not look exactly like the picture.
