Description
The Luminous Litcore Ultra LU100AH 51.2V (LUM-LCU-5.12) is a 5.12kWh 51.2V lithium battery with a touch screen display, from the Luminous Litcore Ultra range, designed for residential and commercial solar storage in South Africa.
- Touch screen LCD + button display | IP rating not stated in the official datasheet
- Usable energy: 5120Wh | Rated capacity: 100Ah | Cell configuration: 16S1P
- Nominal voltage: 51.2V | Operating voltage range: 40-58.4V
- Charging voltage: 58.4V | End-of-discharge voltage: 40V
- Max continuous charge current: 100A | Max continuous discharge current: 100A
- Standard charge: CC 20A, CV 58.4V, cut-off 5A
- Standard discharge: CC 50A, end voltage 40V
- Recommended depth of discharge: 90% | Efficiency >99%
- Cycle life: 6000 cycles (0.5C, 25°C, 80% DoD)
- Up to 15 batteries in parallel (manual configuration)
- Communication: RS485 and CAN | compatible with a wide range of high-frequency inverters
- Multi-level protection: voltage, current and temperature
- Operating temperature: charge 0-55°C, discharge -10-60°C
- Storage >1 month: 0-35°C at 30-50% SoC
- Terminal: WL-CNT120-A
- Weight: 46kg
- 5-year warranty
Official Datasheet: Luminous Litcore Ultra Technical Data Sheet
Official Product Page: Luminous Lithium Solutions
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.

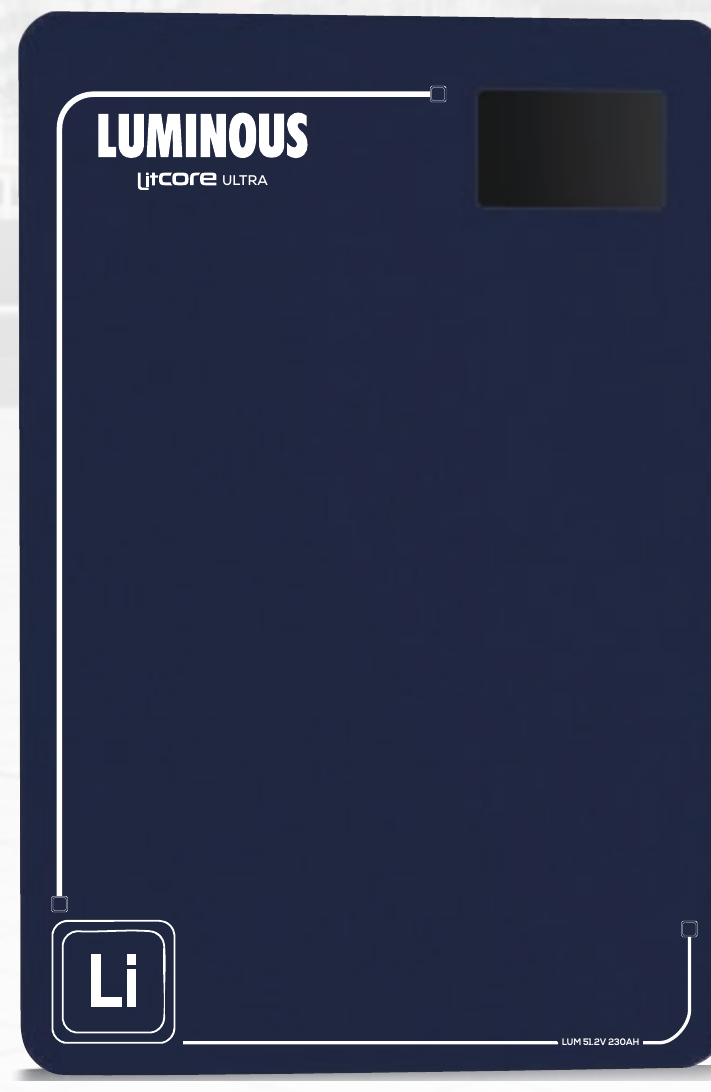

Please note: the image is for illustration purposes only. The actual product may not look exactly like the picture.
