Description

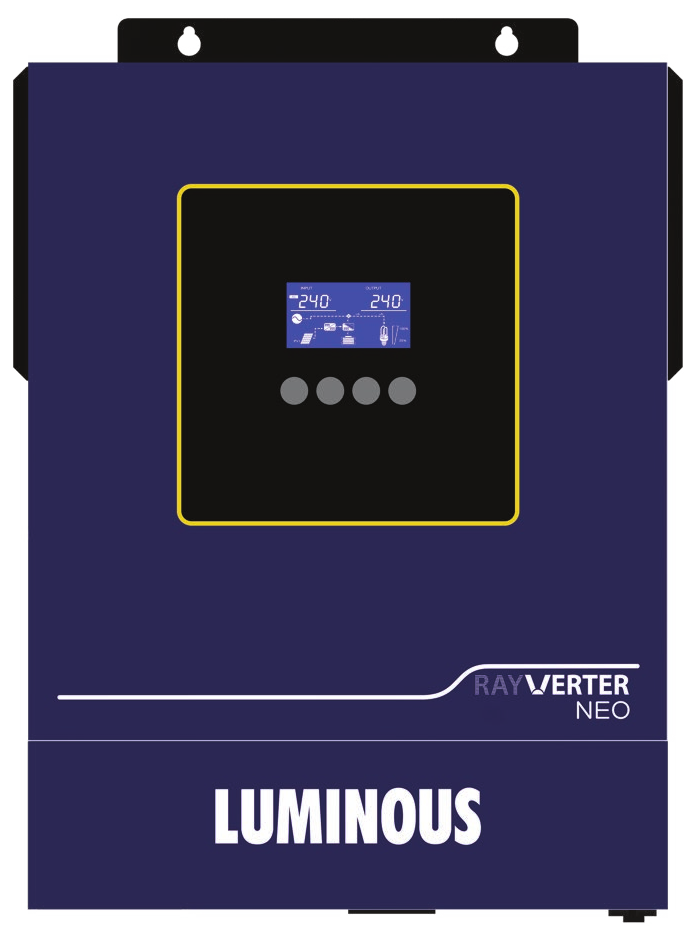

The Luminous Rayverter Neo 3.2kVA/24V (LUM-NEO-3.24) is a 3.2kW single-phase 24V pure sine wave MPPT solar inverter from the Luminous Rayverter Neo range, designed for off-grid and backup solar systems in South Africa.
- Interactive LCD screen | IP rating not stated in the official datasheet
- Rated power: 3200VA/3200W | Pure sine wave | 230V ±5%, 50/60Hz
- Surge power: 6400VA
- Battery voltage: 24V DC (lithium or lead-acid) | Floating charge 27V | Overcharge protection 33V
- Battery independent operation | Battery equalisation function
- Built-in MPPT solar charger | Max PV array power: 3500W
- Max PV open-circuit voltage: 500V | MPPT range: 30-450V | Max input current 15A
- 1 MPPT tracker
- Max solar charge current: 80A | Max AC charge current: 60A
- AC input: 230V | 170-280V (PCs) or 90-280V (appliances) | 50/60Hz auto sensing
- Transfer time: 10ms (PCs) / 20ms (appliances)
- Peak efficiency: 93%
- Reserved communication port (RS485, CAN) for BMS | RS232, USB | built-in WiFi with app and web monitoring
- AC over-current, AC over-voltage and over-temperature protection
- Operating temperature -10°C to 50°C | Humidity 5-95% non-condensing
- Dimensions (D x W x H): 348 x 270 x 95mm | Net weight 5.5kg
- EN/IEC 62109-1, EN/IEC 62109-2 | 2-year warranty
Official Datasheet: Luminous Rayverter Neo / Neo+ Technical Data Sheet
Official Product Page: Luminous Solar Range
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
