Description
The Luminous Rayverter Neo+ 6kVA/48V (LUM-NEO-PLUS-6.48) is a 6kW single-phase 48V pure sine wave MPPT solar inverter from the Luminous Rayverter Neo range, designed for off-grid and backup solar systems in South Africa.
- Interactive LCD screen | IP rating not stated in the official datasheet
- Rated power: 6000VA/6000W | Pure sine wave | 230V ±5%, 50/60Hz
- Surge power: 12000VA
- Battery voltage: 48V DC (lithium or lead-acid) | Floating charge 54V | Overcharge protection 63V
- Battery independent operation | Battery equalisation function
- Built-in MPPT solar charger | Max PV array power: 7000W
- Max PV open-circuit voltage: 500V | MPPT range: 60-450V | Max input current 27A
- 1 MPPT tracker
- Max solar charge current: 120A | Max AC charge current: 100A
- AC input: 230V | 170-280V (PCs) or 90-280V (appliances) | 50/60Hz auto sensing
- Transfer time: 10ms (PCs) / 20ms (appliances) | Peak efficiency: 93%
- Dual output for smart load management (optional)
- Reserved communication port (RS485, CAN) for BMS | RS232, USB | built-in WiFi with app and web monitoring
- AC over-current, AC over-voltage and over-temperature protection
- Operating temperature -10°C to 50°C | Humidity 5-95% non-condensing
- Dimensions (D x W x H): 400 x 300 x 115mm | Net weight 9kg
- EN/IEC 62109-1, EN/IEC 62109-2 | 2-year warranty
Official Datasheet: Luminous Rayverter Neo / Neo+ Technical Data Sheet
Official Product Page: Luminous Solar Range
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.

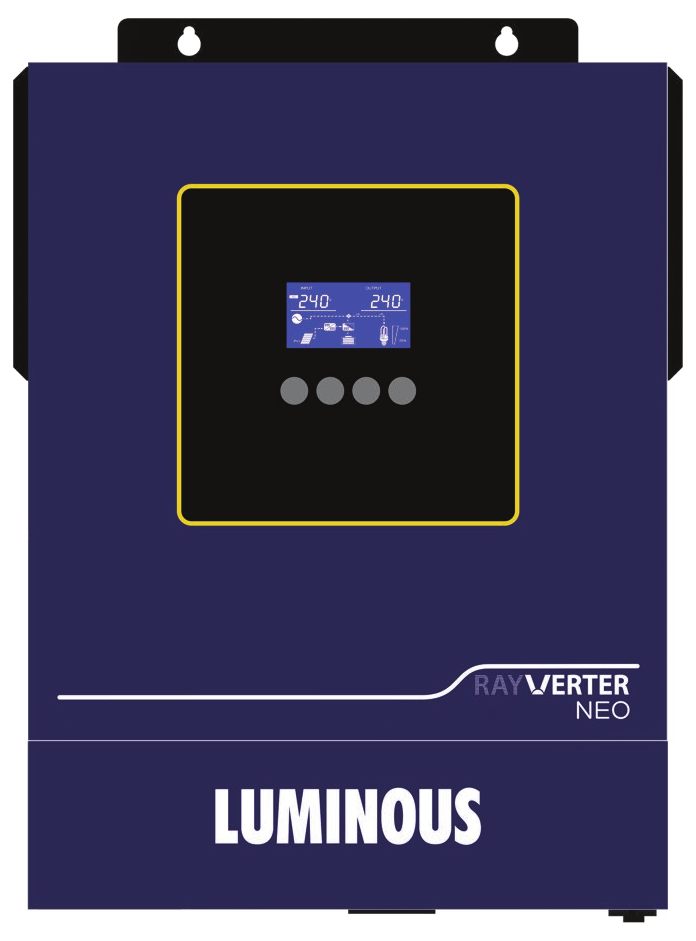

Please note: the image is for illustration purposes only. The actual product may not look exactly like the picture.
