Description

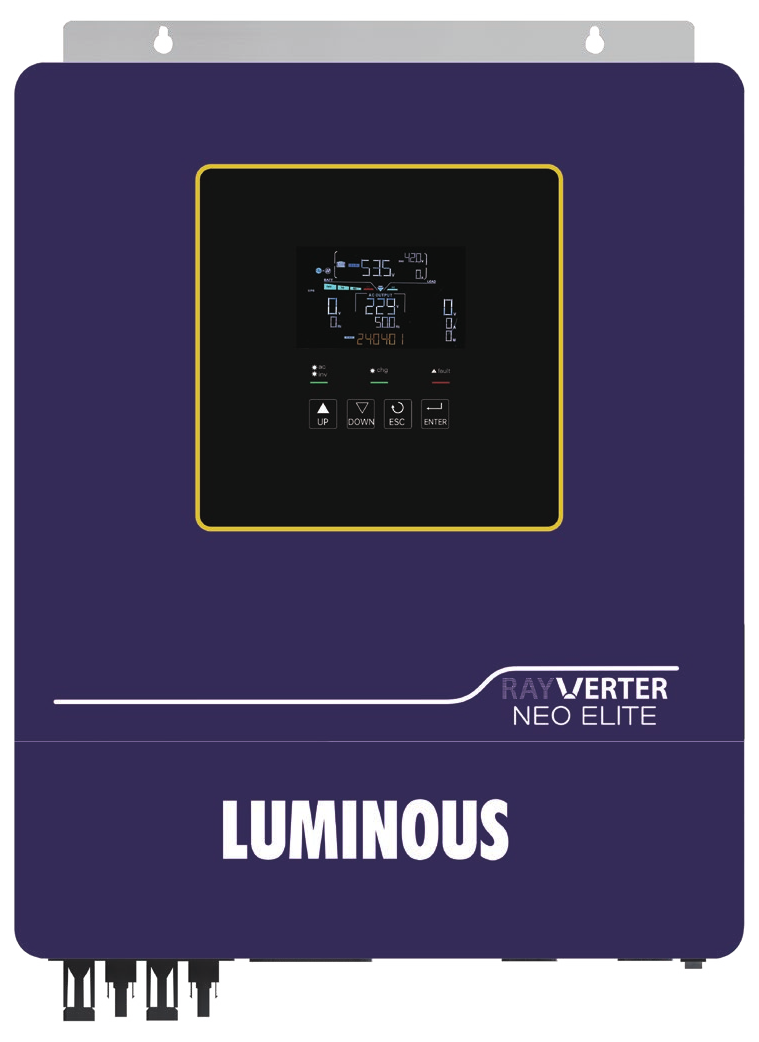

The Luminous Rayverter Neo Elite 11kVA/48V (LUM-NEO-ELITE-11.48) is an 11kW single-phase 48V dual-MPPT solar inverter from the Luminous Rayverter Neo Elite range, designed for off-grid and backup solar systems in South Africa.
- Interactive LCD screen | IP rating not stated in the official datasheet
- Rated power: 11000VA/11000W | Pure sine wave | 220/230/240V ±5%, 50/60Hz
- Surge power: 22000VA
- Battery voltage: 48V DC (lithium or lead-acid) | Floating charge 54V | Overcharge protection 63V
- Battery independent operation | Battery equalisation function
- Max PV array power: 13000W (6500W x 2)
- Max PV open-circuit voltage: 500V | MPPT range: 60-450V
- 2 MPPT trackers | Max input current 27A x 2 (max 40A)
- Max solar charge current: 150A | Max AC charge current: 150A
- AC input: 220/230/240V | 170-280V (PCs) or 90-280V (appliances) | 50/60Hz
- Transfer time: 10ms (PCs) / 20ms (appliances) | Peak efficiency: 93%
- Parallel operation up to 6 units
- Dual output smart load management | CT anti-backflow function
- Reserved communication port (RS485, CAN) for BMS | RS232 | built-in WiFi with app and web monitoring
- AC over-current, AC over-voltage and over-temperature protection
- Dimensions (D x W x H): 553.6 x 432.5 x 147.4mm | Net weight 18kg
- EN/IEC 62109-1, EN/IEC 62109-2 | 2-year warranty
Official Datasheet: Luminous Rayverter Neo Elite 8/11kVA Technical Data Sheet
Official Product Page: Luminous Solar Range
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
