Description

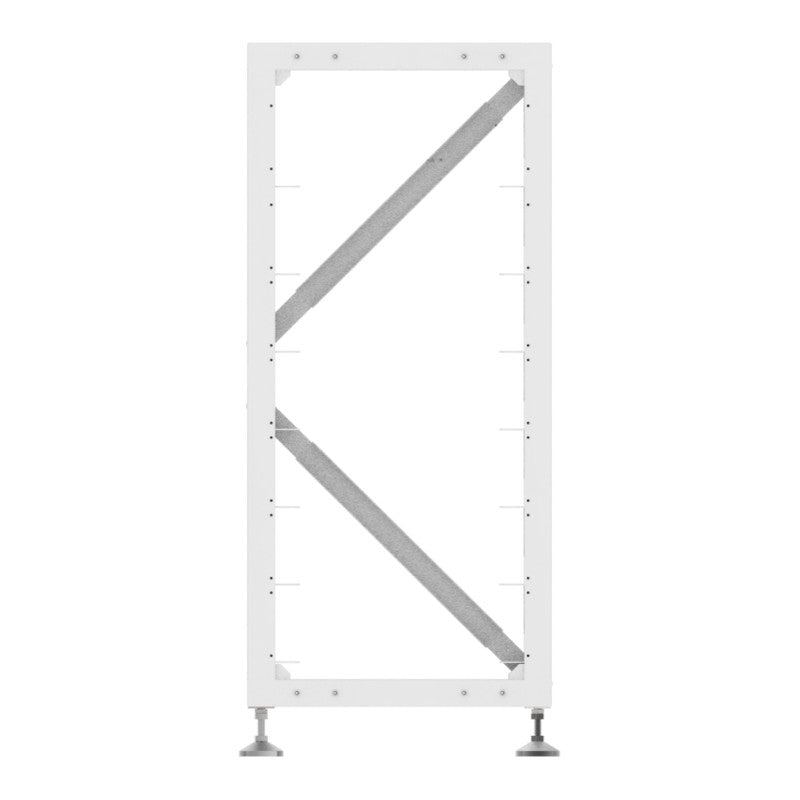

The LUMO 15+1 high-voltage battery rack holds up to fifteen LUMO GRS5000 battery modules plus one high-voltage control box, forming a complete high-voltage string of up to 76.8kWh in a single floor-standing frame.
- Holds up to 15 LUMO GRS5000 modules plus the high-voltage control box
- Drawer design for easy installation, inspection and module servicing
- Industrial steel frame with ventilation for heat dissipation
- Adjustable foot pads (+150mm)
Specifications (LMRACK100 15+1)
| Configuration |
15 + 1 layers |
| Compatible modules |
LUMO GRS5000 |
| Rack width × depth |
560 × 510mm (560 × 550mm with modules installed) |
| Bracket weight |
5.5kg per drawer |
| Installed system weight |
≈ 49.5kg × modules + 25kg (control box) |
Datasheet: Full technical documentation is available on request – please contact us.
Available on backorder – please contact us for lead time.
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
