Description

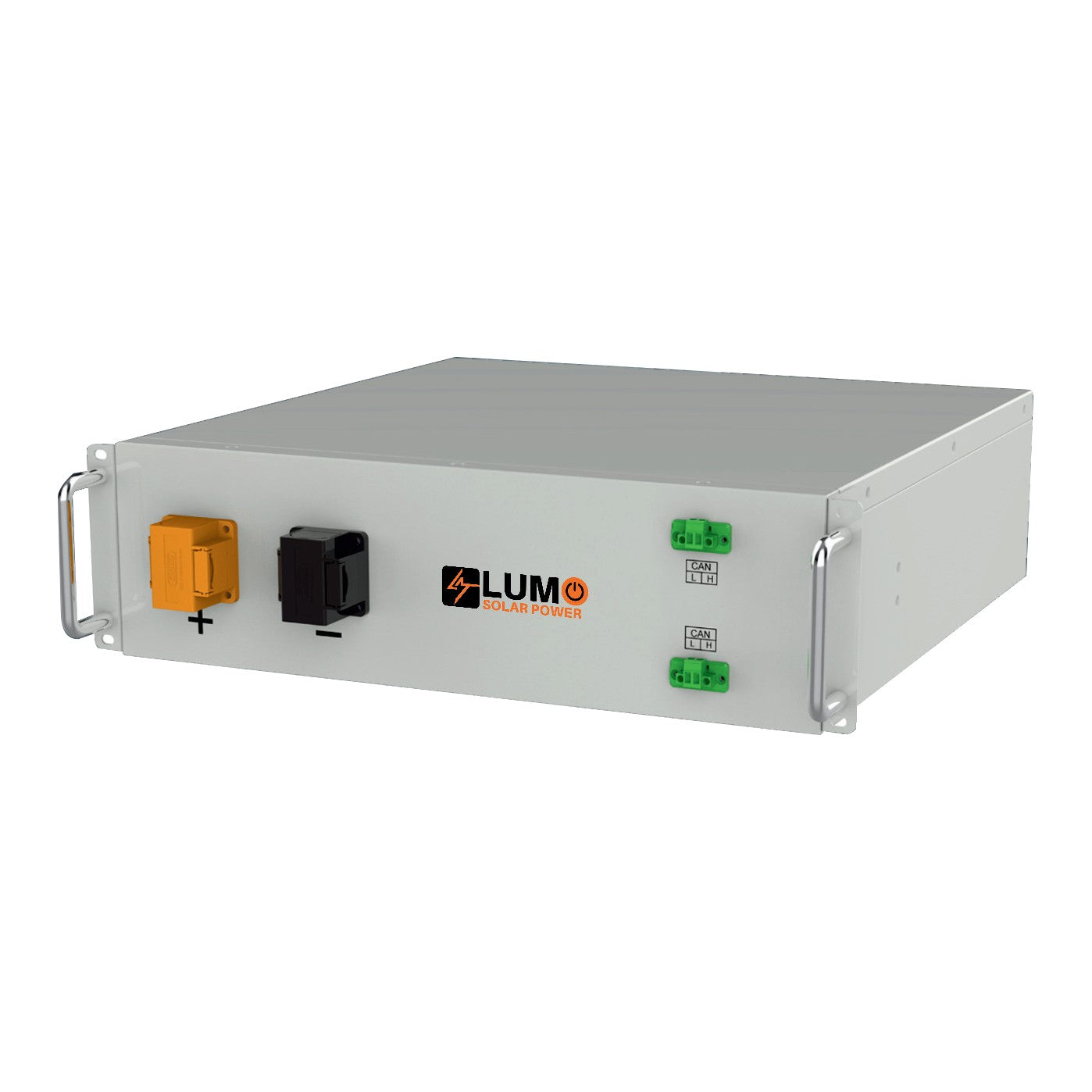

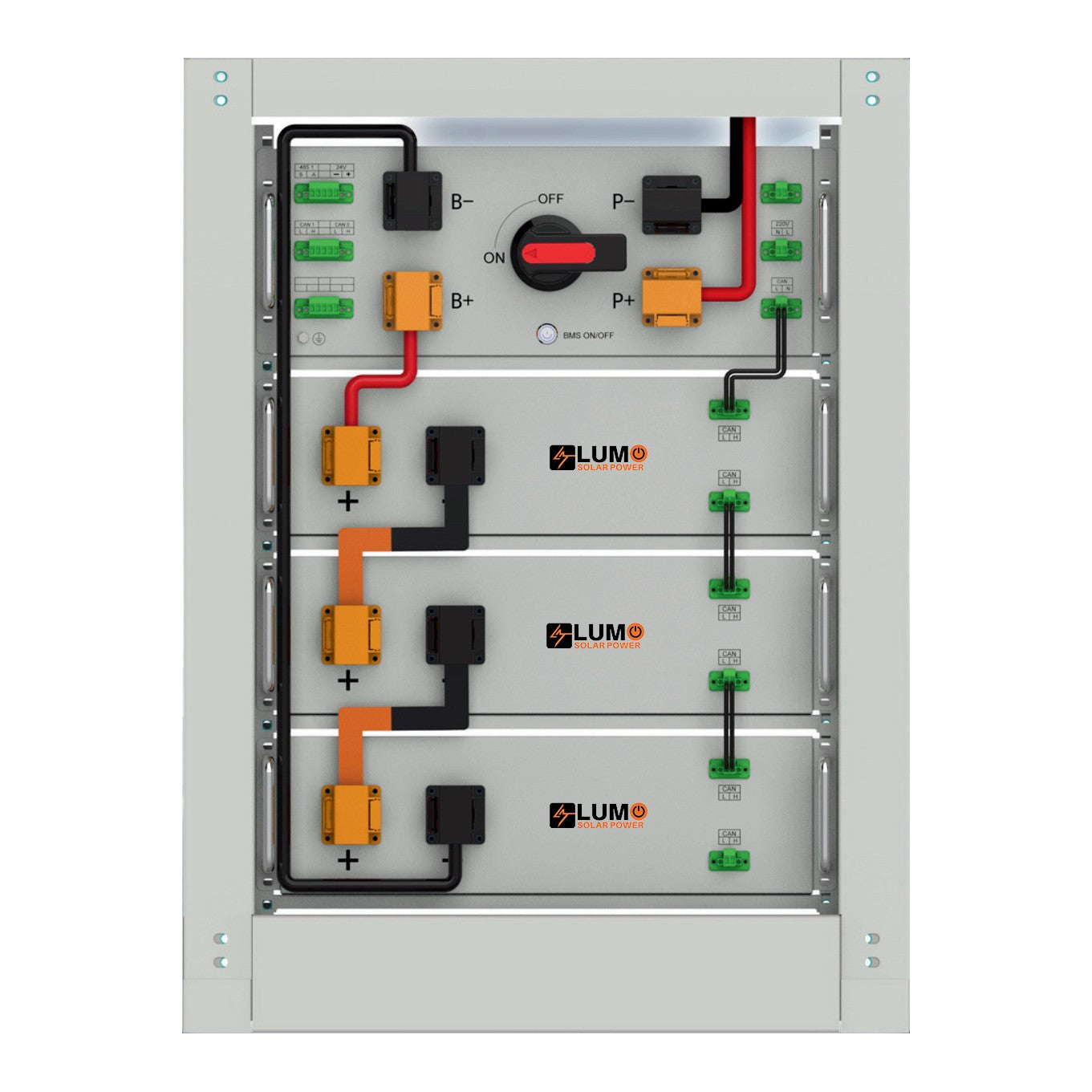

The LUMO GRS5000 is a 5.12kWh, 51.2V / 100Ah lithium iron phosphate module for high-voltage battery systems. Modules are connected in series under a LUMO high-voltage control box to build battery strings for commercial and industrial PCS and hybrid inverters.
- 5.12kWh nominal energy per module (100Ah at 51.2V)
- 50A recommended / 100A maximum charge and discharge current

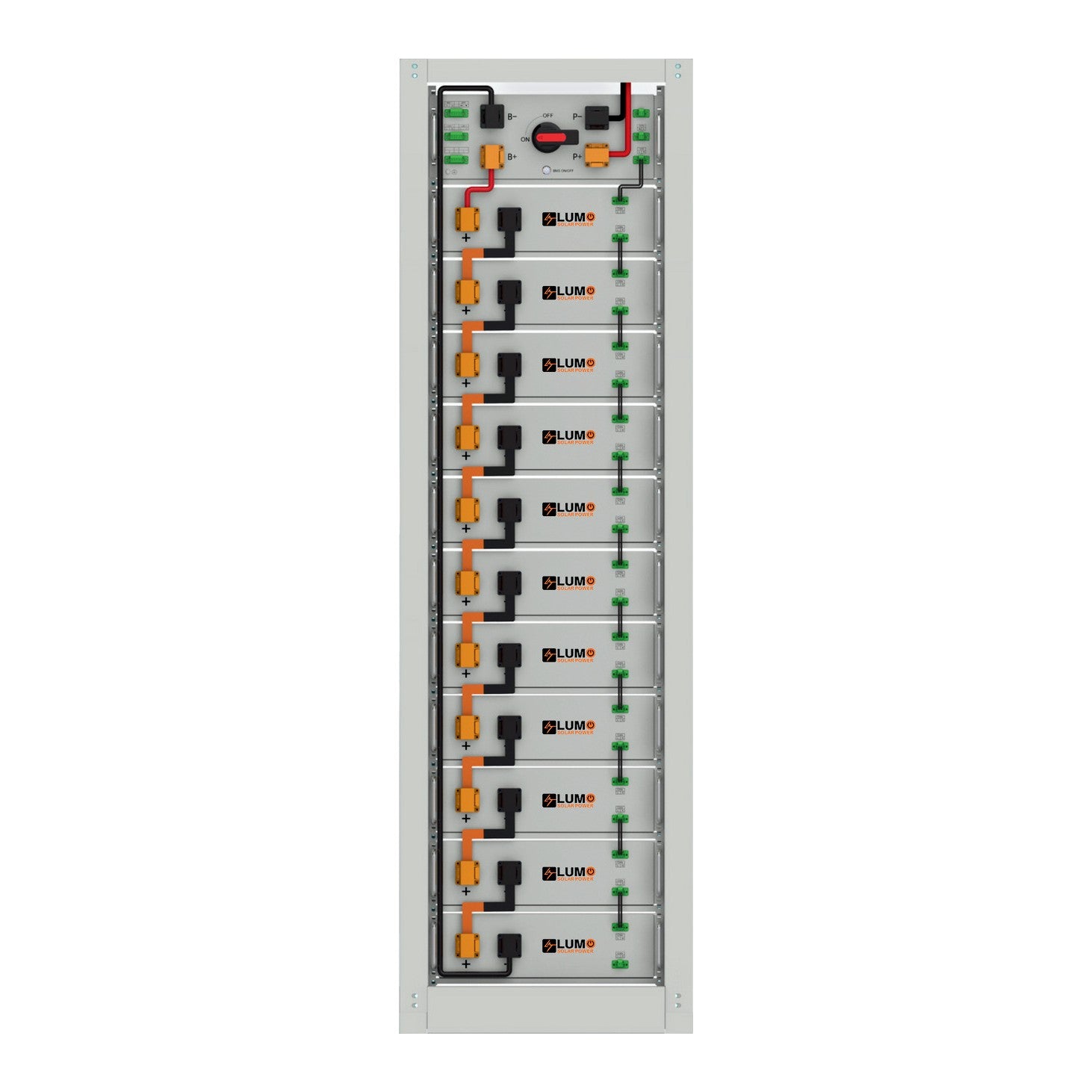

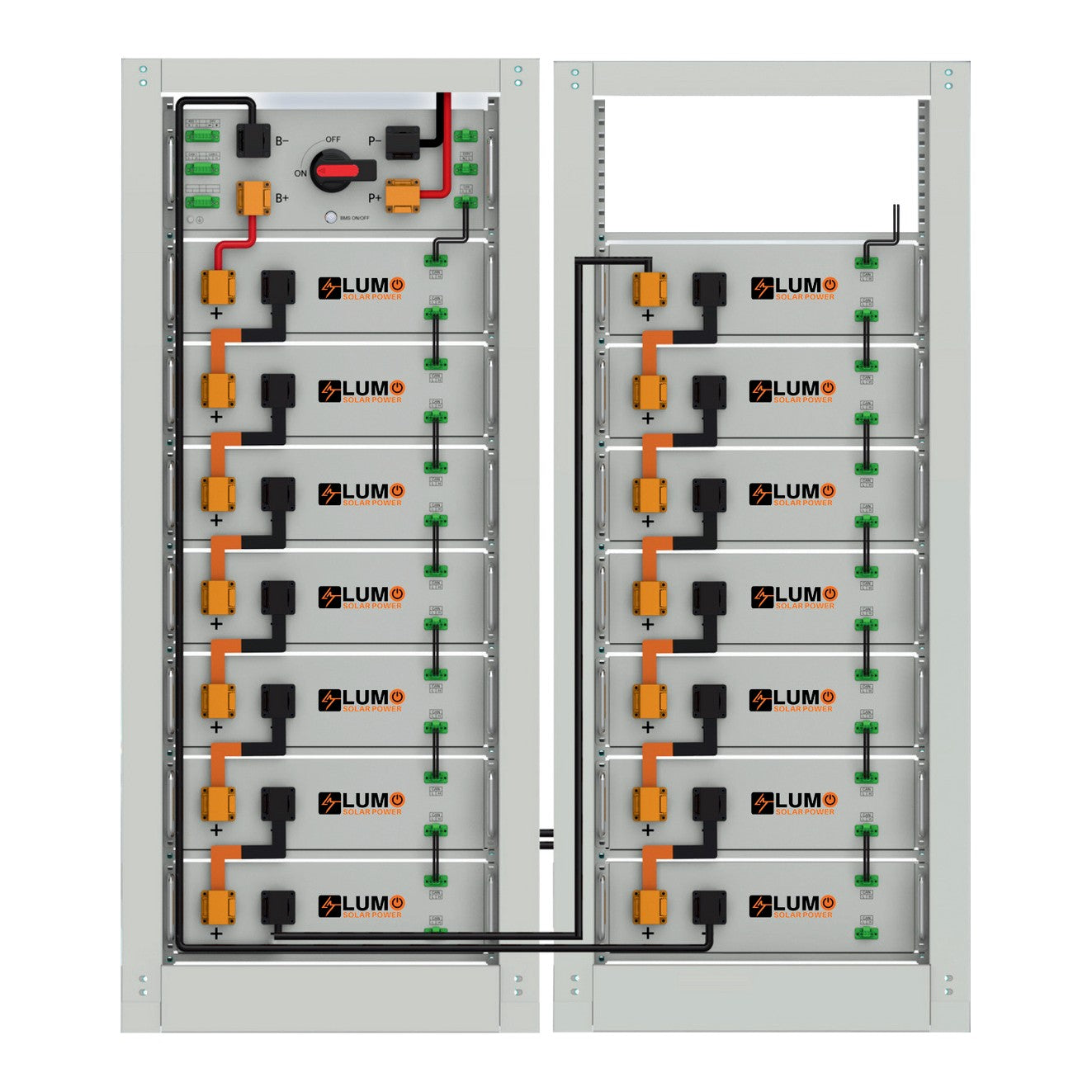

- Up to 15 modules in series and 12 banks in parallel
- More than 6000 cycles; 20+ years design life
- RS485, RS232 and CAN communication
- Strings from 5.12kWh up to 76.8kWh
Specifications (GRS5000)
| Battery type |
LiFePO4 |
| Nominal energy |
5.12kWh |
| Nominal capacity |
100Ah |
| Nominal voltage |
51.2V |
| Recommended charge/discharge current |
50A |
| Max. charge/discharge current |
100A |
| Series capability |
Up to 15 modules |
| Parallel capability |
Up to 12 banks |
| Cycle life |
>6000 (0.5C/0.5C, 80% DoD) |
| Design life |
20+ years |
| Communication |
RS485 / RS232 / CAN |
| Operating temperature |
Charge 0 – 50°C / Discharge -10 – 50°C |
| Dimensions |
440 × 442 × 133mm |
| Weight |
49kg |
| Certifications |
CE, IEC, UN38.3 |
Official Datasheet: LUMO GRS5000 Spec Sheet (PDF)
Available on backorder – please contact us for lead time.
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
