Description

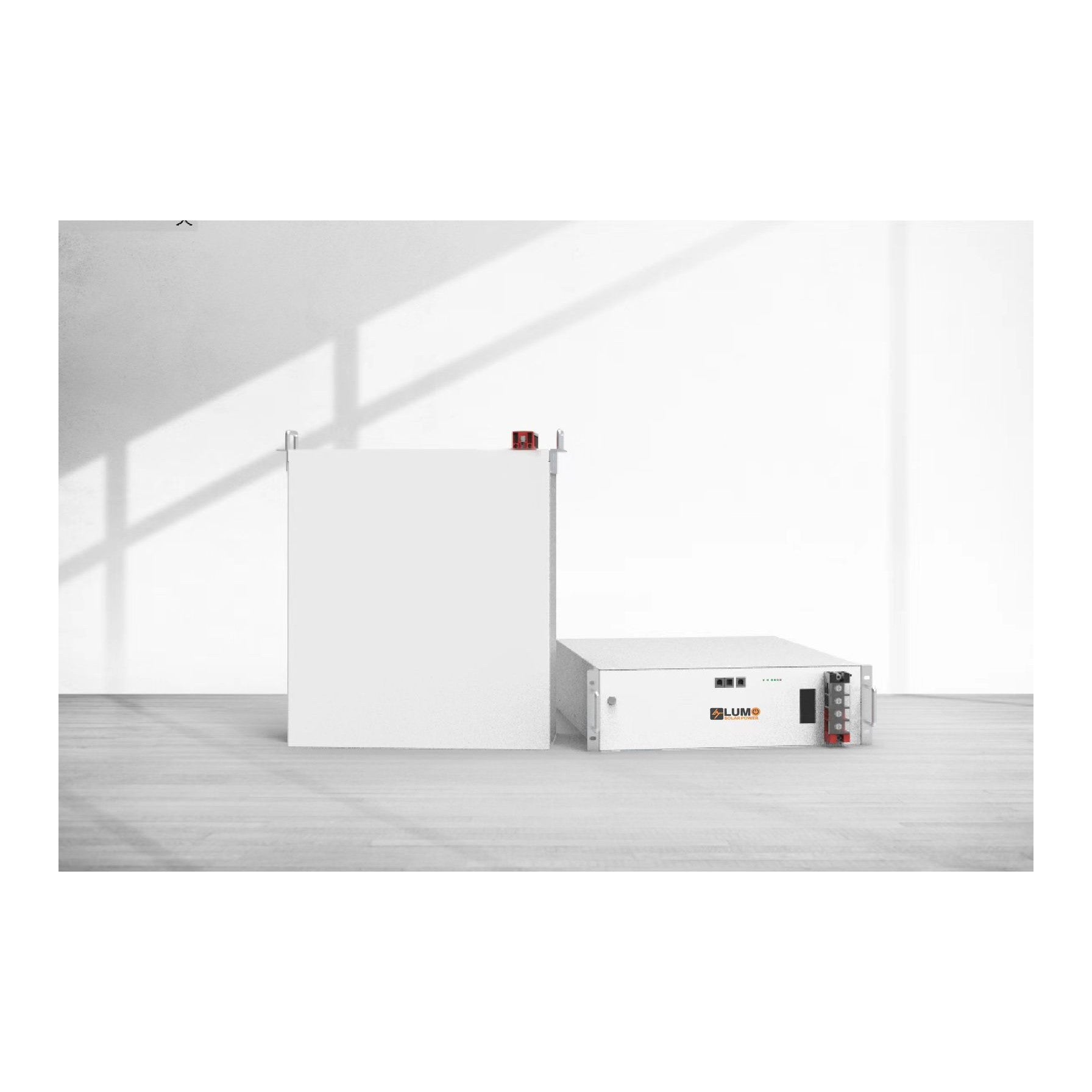

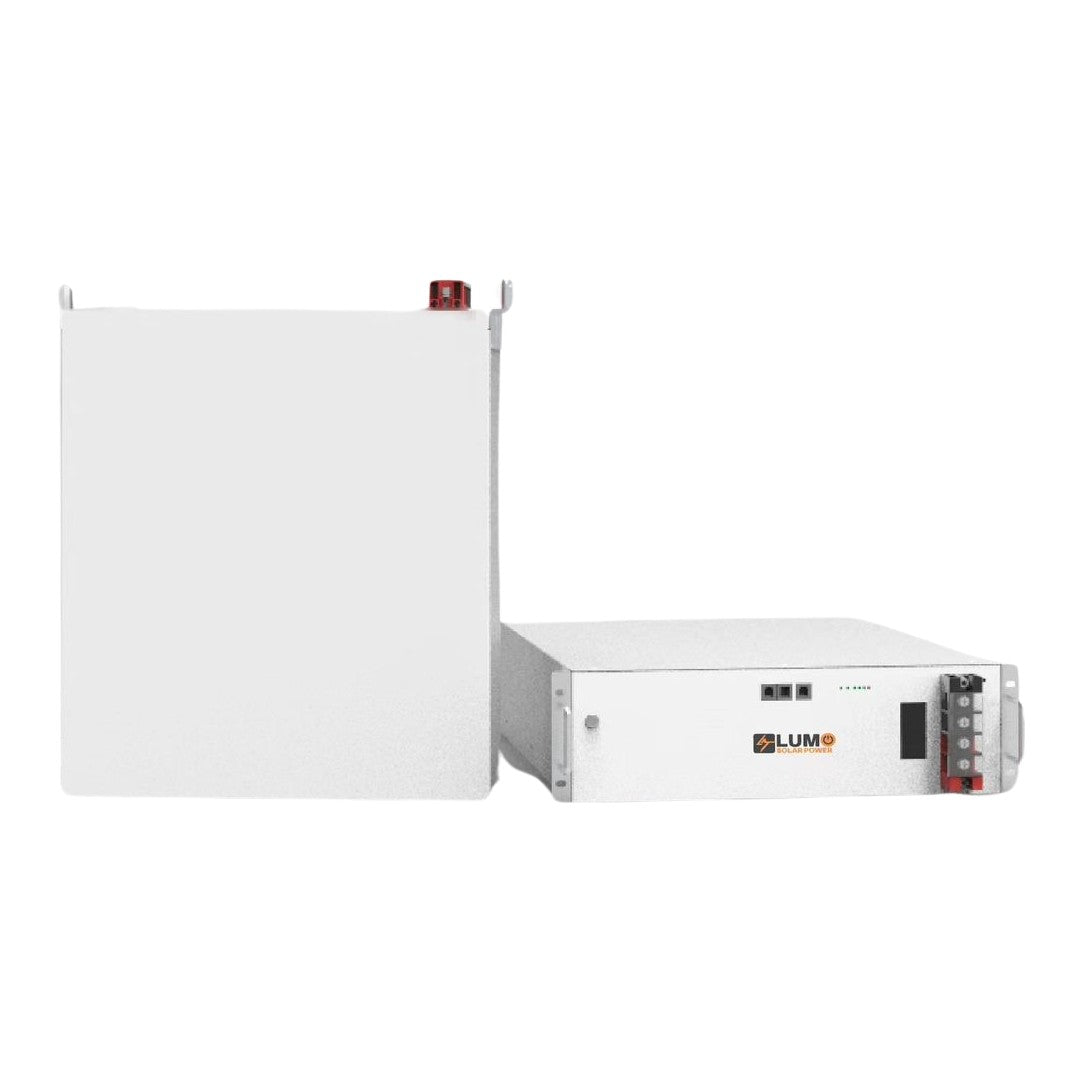

The LUMO L51100 is a 5.12kWh, 51.2V / 100Ah low-voltage lithium iron phosphate battery for residential and small commercial backup and solar storage with 48V inverters. It can be wall-mounted or stacked using battery brackets.
- 5.12kWh (100Ah at 51.2V) LiFePO4
- 100A continuous charge and discharge, 120A peak (3s)
- 90% depth of discharge and 6000 cycle life
- Built-in BMS with over-charge, over-discharge and short-circuit protection
- Wall-mount or stackable installation
Specifications (L51100)
| Battery type |
LiFePO4 |
| Nominal energy |
5.12kWh |
| Nominal capacity |
100Ah |
| Nominal voltage |
51.2V |
| Rated charge/discharge current |
100A |
| Peak discharge current |
120A (3s) |
| Discharge cut-off voltage |
46.4V ±0.1V |
| Depth of discharge |
90% |
| Cycle life |
6000 |
| Operating temperature |
Charge 0 – 55°C / Discharge -20 – 55°C |
| Operating humidity |
5 – 85% RH |
Datasheet: Full technical documentation is available on request – please contact us.
Available on backorder – please contact us for lead time.
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
