Description

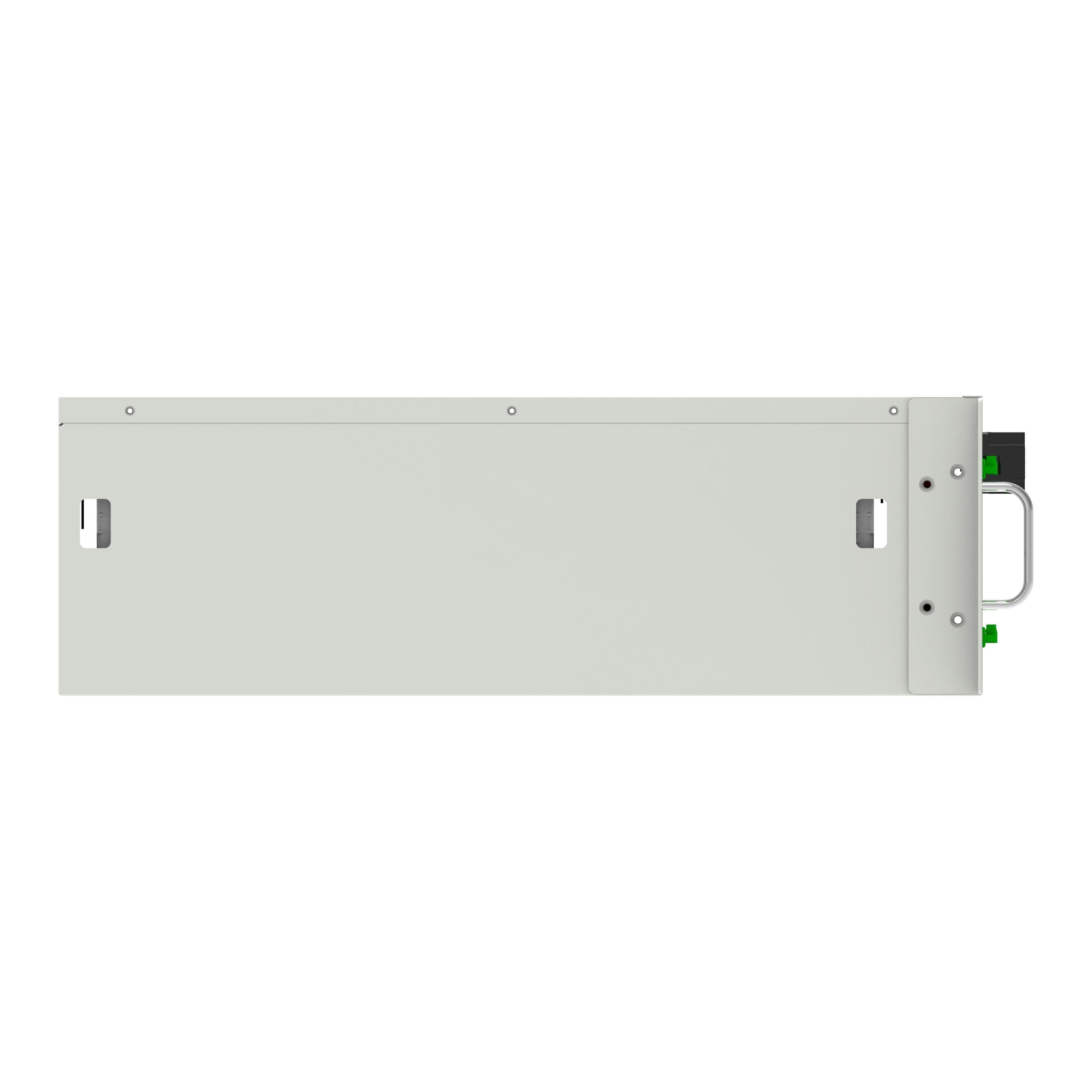

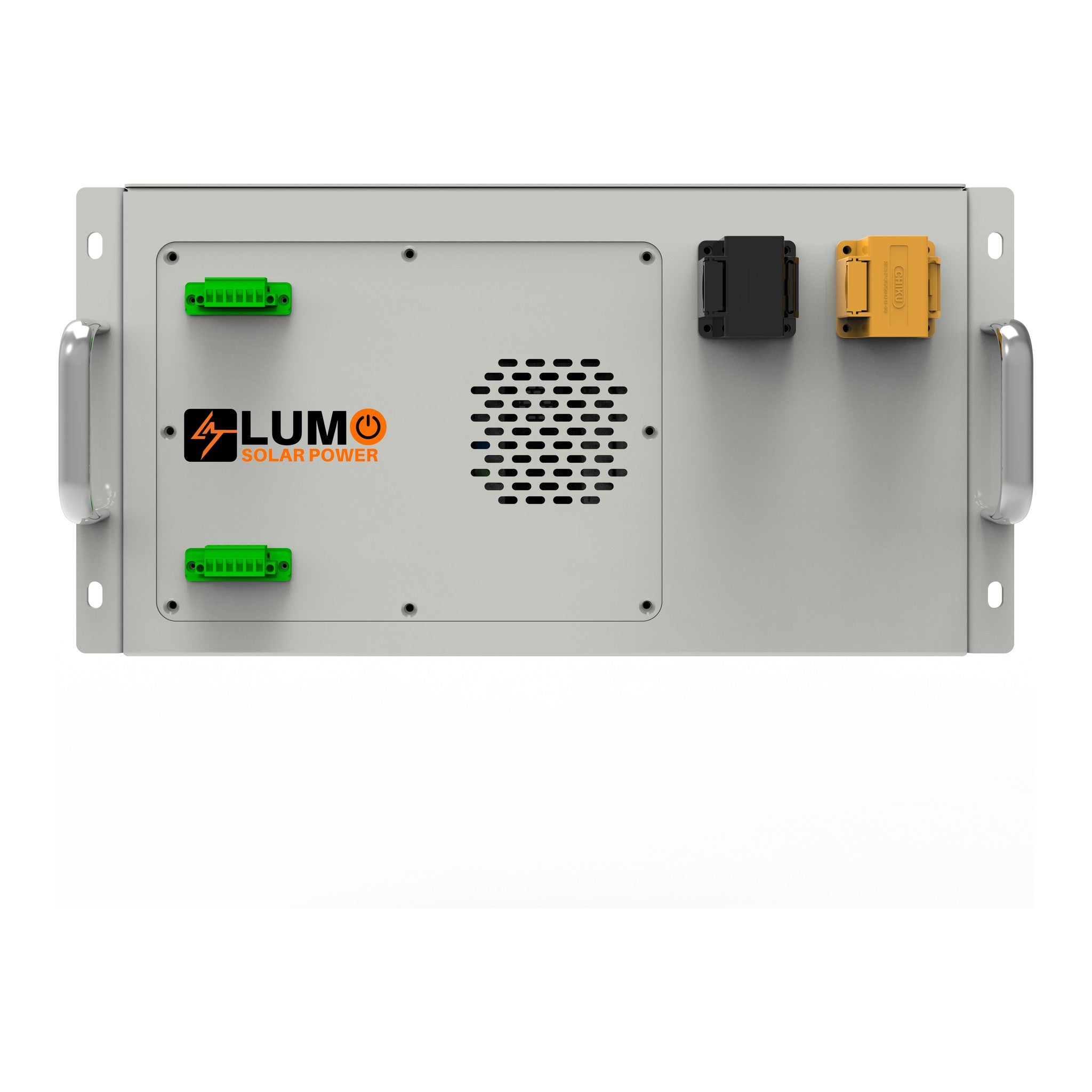

The LUMO OMS51314 is a 16.1kWh, 51.2V / 314Ah lithium iron phosphate module for high-voltage battery systems. Modules are connected in series under a LUMO high-voltage control box to build battery strings for commercial and industrial PCS and hybrid inverters.
- 16.1kWh nominal energy per module (314Ah at 51.2V)
- 100A recommended / 160A maximum charge and discharge current

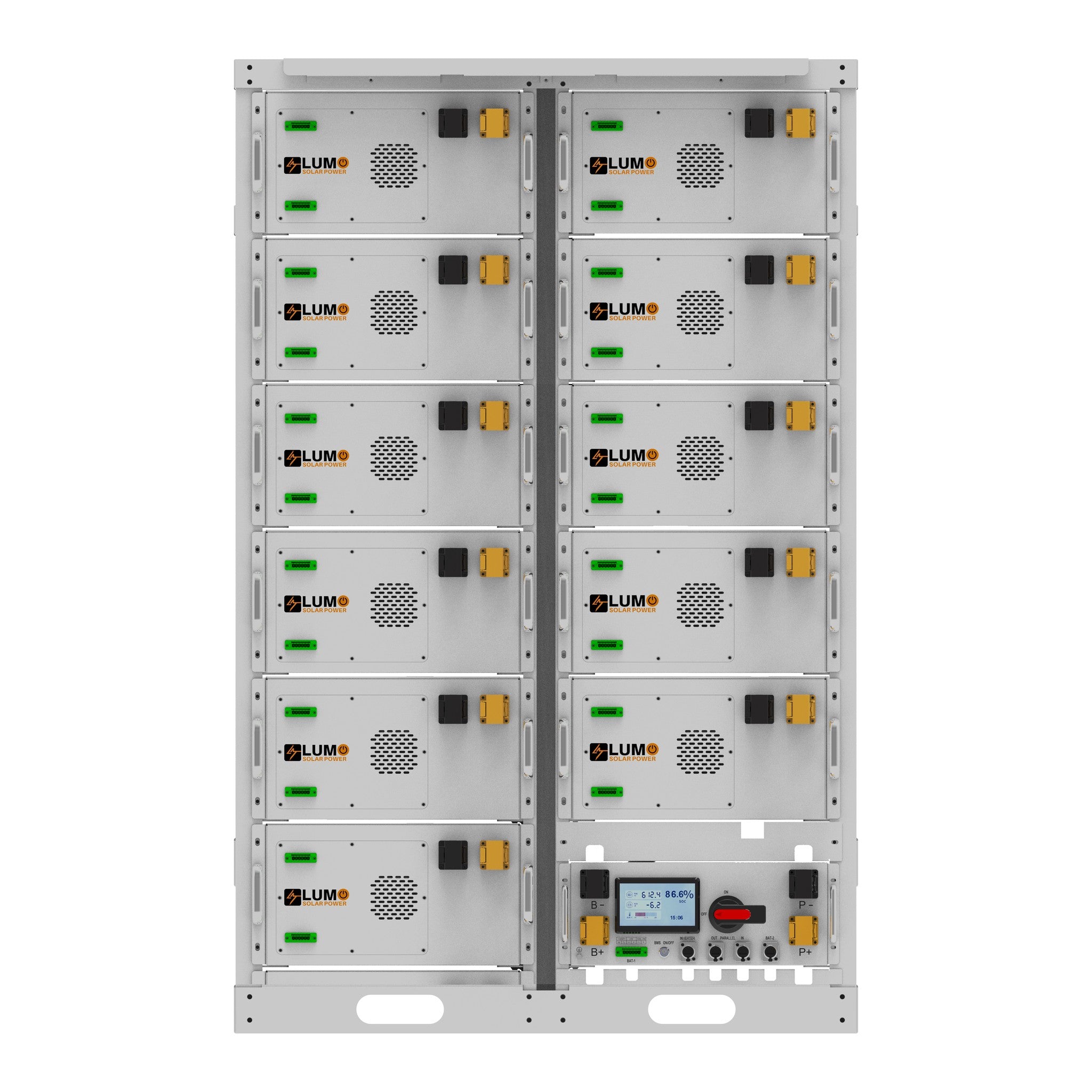

- Up to 16 modules in series
- More than 6000 cycles; 15+ years design life
- RS485, RS232 and CAN communication
- Aerosol fire-suppression device built into every module

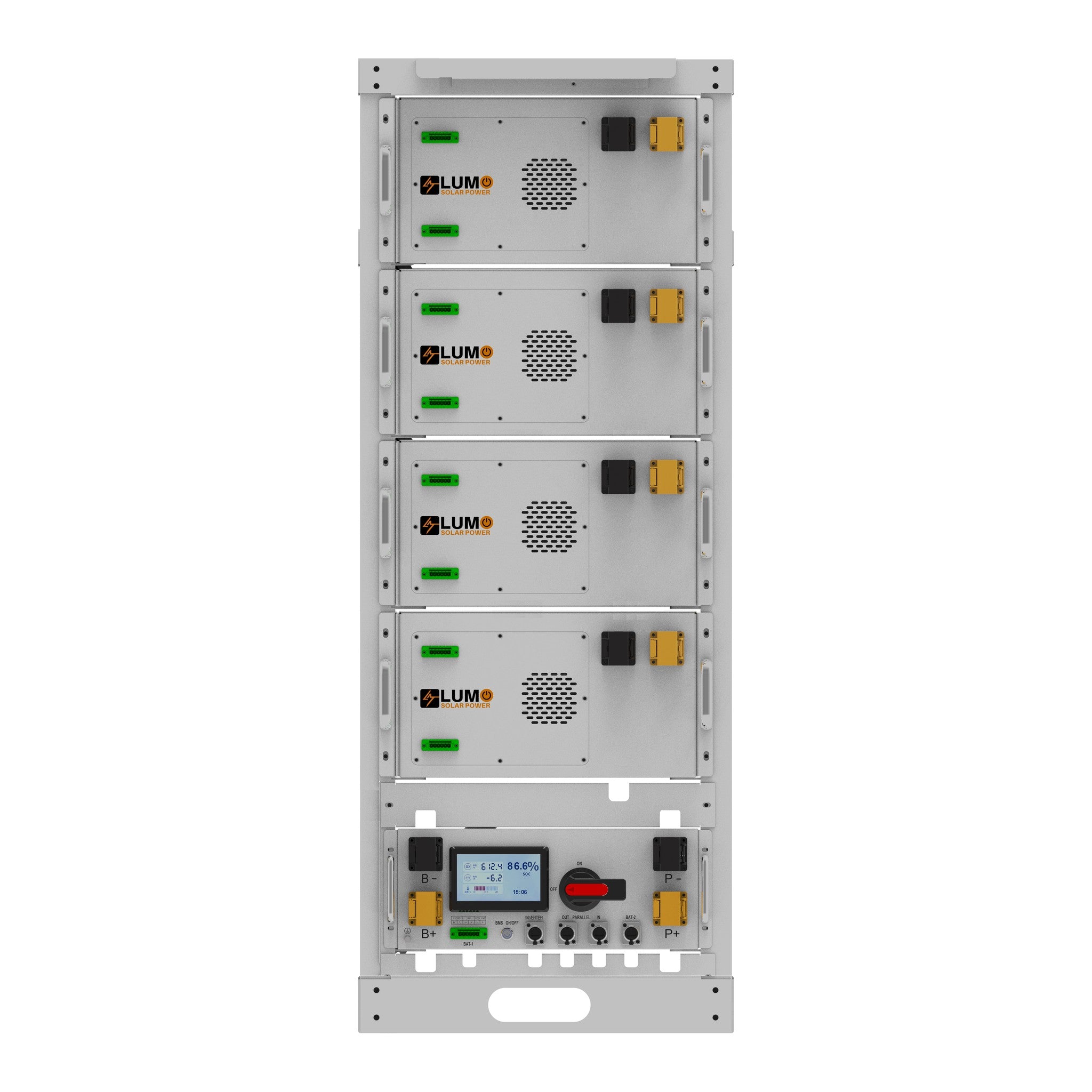

- Pairs with the LUMO LMCB300 control box (1000V / 160A)
Specifications (OMS51314)
| Battery type |
LiFePO4 |
| Nominal energy |
16.08kWh |
| Nominal capacity |
314Ah |
| Nominal voltage |
51.2V |
| Recommended charge/discharge current |
100A |
| Max. charge/discharge current |
160A |
| Series capability |
Up to 16 modules |
| Cycle life |
>6000 (0.5C/0.5C, 80% DoD) |
| Design life |
15+ years |
| Communication |
RS485 / RS232 / CAN |
| Operating temperature |
Charge 0 – 50°C / Discharge -10 – 50°C |
| Dimensions |
483 × 245 × 792mm |
| Weight |
114kg |
| Certifications |
CE, IEC, UL, UN38.3 |
Datasheet: Full technical documentation is available on request – please contact us.
Available on backorder – please contact us for lead time.
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
