Description

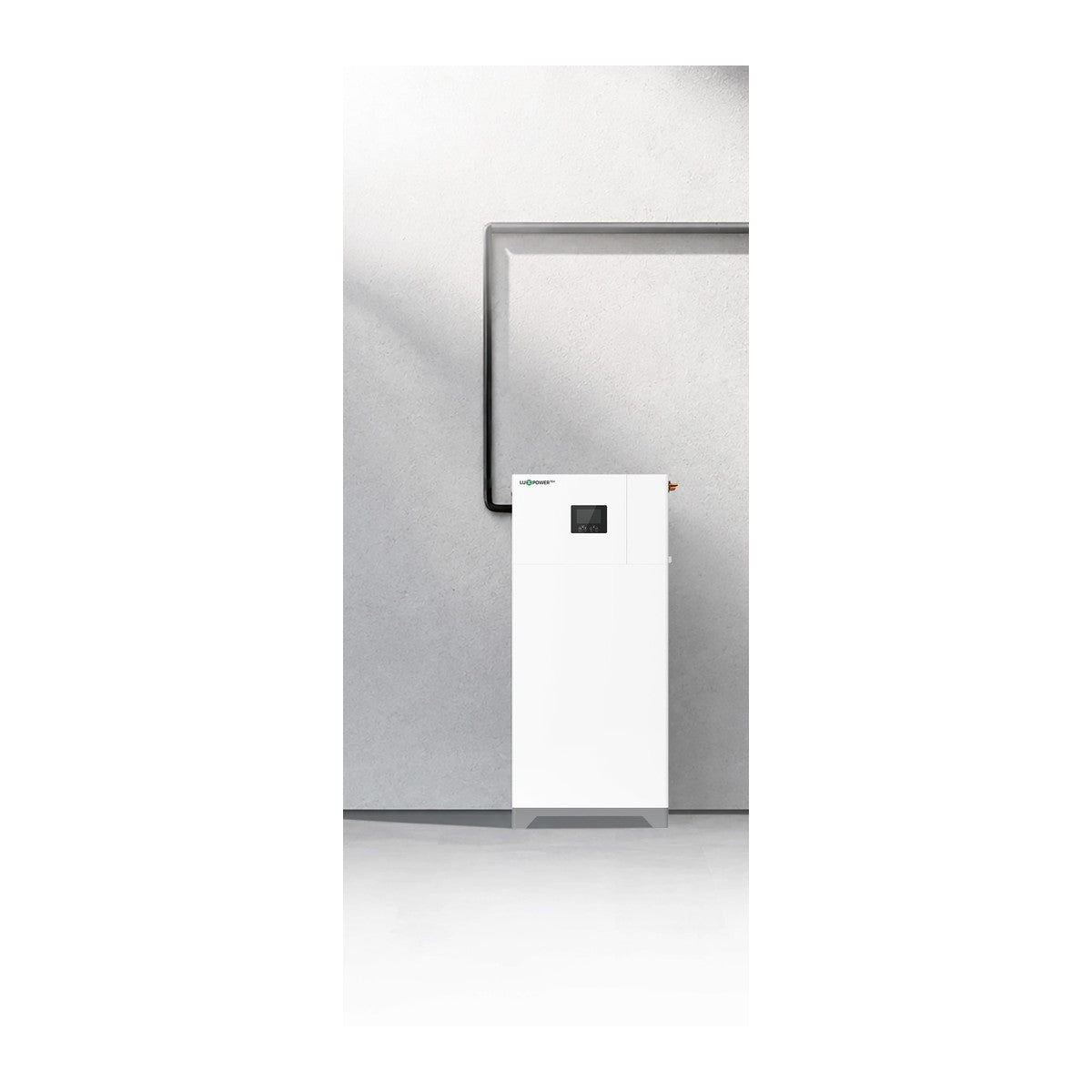

The Luxpower Battery Beast-5 is the 5.12 kWh battery module used with the Eco Beast 6000 single-phase all-in-one energy storage system. The official Eco Beast datasheet lists this module as Battery Beast-5. One to three modules can be used with each Eco Beast 6000 inverter (about 5 kWh, 10 kWh or 15 kWh). This listing is for the battery module, not the inverter.
- Official module model: Battery Beast-5
- 5.12 kWh; 51.2 V rated; 100 Ah
- Lithium-ion (as stated on the official datasheet)
- 100 A maximum charge and 100 A maximum discharge current
- Operating voltage with the Eco Beast 6000: 38.4 – 60 V
Technical specifications (Battery Beast-5)
Figures in the table are from LuxpowerTek’s official Eco Beast (Single-Phase) datasheet dated 30 January 2026 (also published on luxpowertek.com, October 2025) and from LuxpowerTek South Africa’s official Eco Beast product page. This listing is the Battery Beast-5 battery module (SKU ECO-BEAST-6000-Battery), not the inverter or a complete 5/10/15 kWh stack. Shipping weight follows the official Battery Module “Net weight” of 54 kg, which is also the only module weight published on luxpowertek.co.za. The same official all-in-one datasheet also lists “Battery module weight 57.4 kg” under General Specifications; that second figure is recorded below but is not used for shipping on this battery-only SKU.
| Official module model |
Battery Beast-5 |
| Used with |
Eco Beast 6000 all-in-one (1–3 modules per inverter) |
| Battery type |
Lithium-ion |
| Battery energy |
5.12 kWh |
| Rated voltage |
51.2 V |
| Rated capacity |
100 Ah |
| Battery module voltage (system connection) |
38.4 – 60 V |
| Max. charging current |
100 A |
| Max. discharging current |
100 A |
| Dimensions (W × H × D) |
580 × 434 × 165 mm |
| Net weight (Battery Module table — used for shipping) |
54 kg |
| Battery module weight (General Specifications on the same official sheet, not used for shipping) |
57.4 kg |
| Ingress protection rating |
IP20 |
| Operating temperature range |
0 °C to 45 °C |
| Storage temperature |
−15 °C to 60 °C |
| Humidity |
5% to 95% relative humidity (non-condensing) |
| Max. operating altitude |
2 000 m |
| Module standard |
UN38.3; CE |
The official datasheet does not state a warranty period in years for the battery module; refer to LuxpowerTek’s official warranty terms.
Official Datasheet: LuxpowerTek Eco Beast Datasheet (PDF, 30 January 2026)
Official Product Page: LuxpowerTek Eco Beast all-in-one ESS
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
