| Official model |

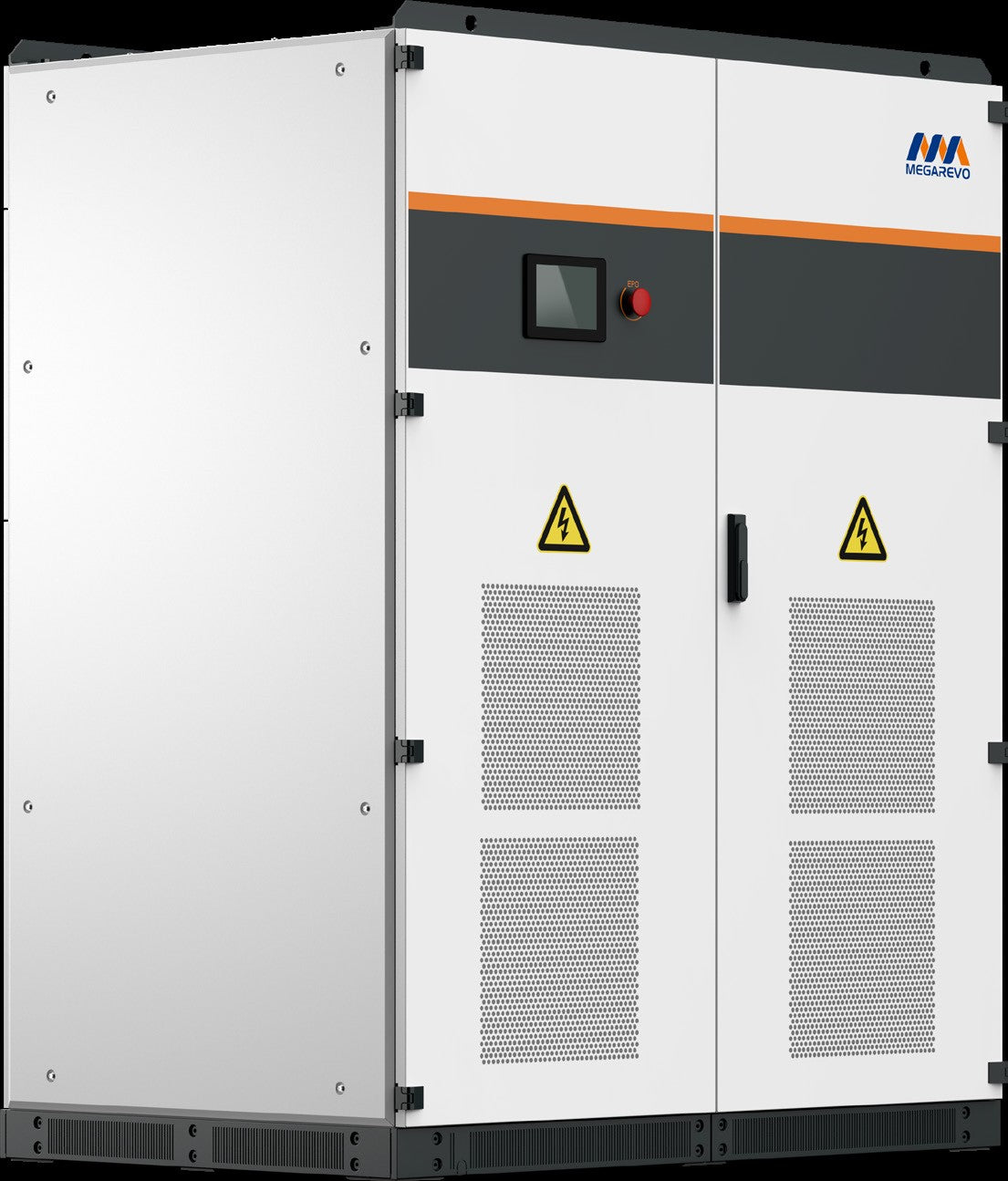

MEGA0150TS |
| Type |
Three-phase C&I power conversion system with isolation transformer |
| DC (battery) voltage range / max. current |
420–850 V / 405 A |
| Max. / rated AC output power (on-grid) |
165 kW / 150 kW |
| Rated voltage / voltage range / grid type |
400 V / 320–460 V / 3W+N+PE |
| Rated / max. output current |
216 A / 238 A |
| Rated frequency / frequency range |
50/60 Hz / 45–55 Hz / 55–65 Hz |
| THDi / power factor |
<3% / 1 leading to 1 lagging (settable) |
| Off-grid rated voltage / frequency / THDu / overload |
400 V / 50/60 Hz / <1% linear, <5% nonlinear / 110% long-term |
| Max. efficiency |
97.1% |
| Dimensions (W × D × H) |
800 × 800 × 1 900 mm |
| Weight |
1 057 kg |
| Ingress protection / cooling / noise |
IP21 / forced air / <70 dB |
| Operating temperature / humidity / max. altitude |
−30 °C to +55 °C / 0–95% non-condensing / 5 000 m (>3 000 m derating) |
| Self-consumption / on/off-grid switching |
<0.5% / automatic |
| Display / communication |
LCD touch-screen; BMS RS485, CAN; EMS RS485, TCP/IP |
| Certificates listed |
IEC/EN 62109-1/-2, EN 62477-1, IEC/EN 61000-6-2/-6-4, EN 50549-1/-10, NRS 097-2-1:2017, ASGC, GB/T 34120, GB/T 34133, CGC-R46103:2018A, PTPIREE REV1.2: 2024 TYPE B |
