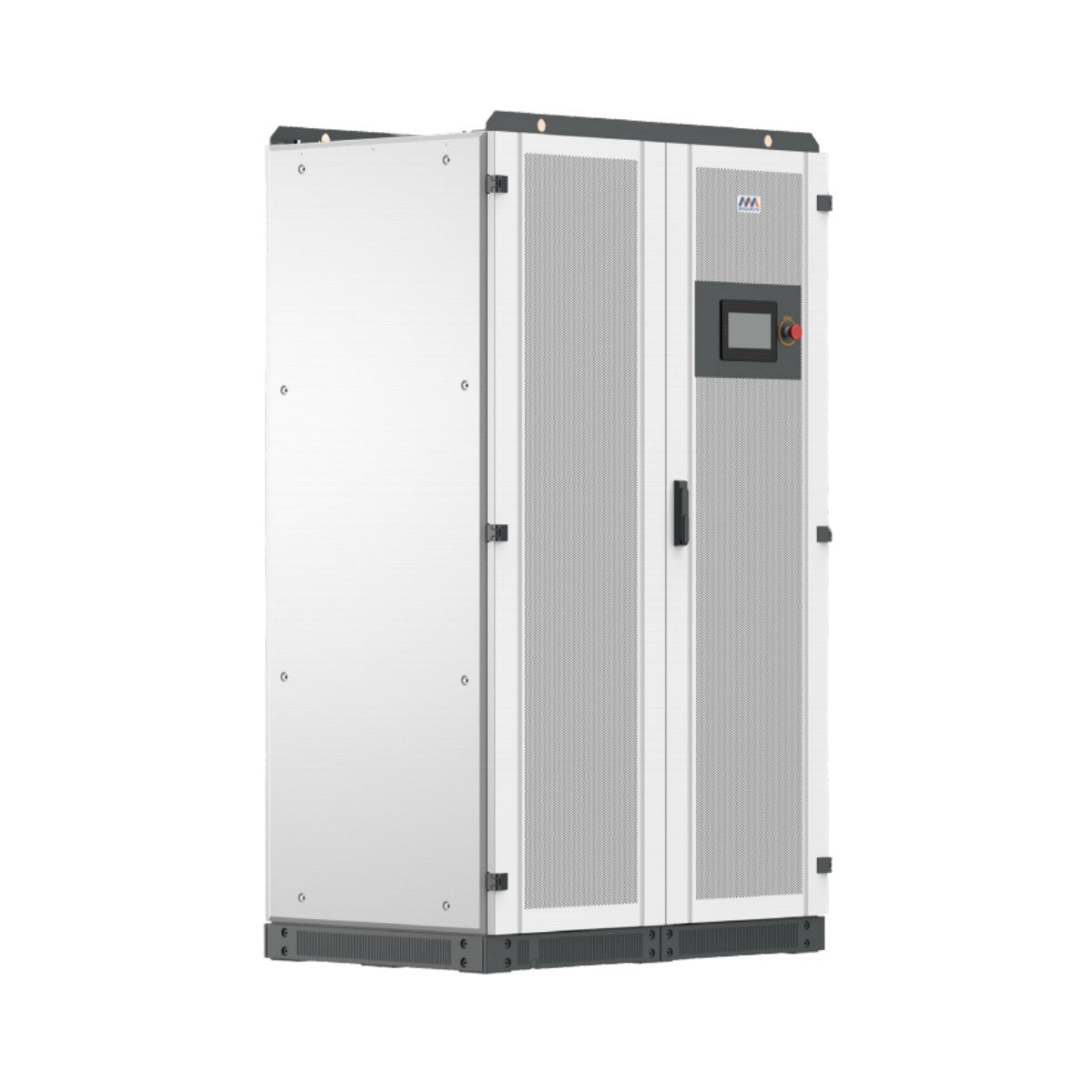

| Official model |
MPS0150 |
| Type |
Three-phase microgrid hybrid inverter with integrated MPPT, transformer, STS and maintenance bypass |
| Max. / rated AC output power (on-grid and off-grid) |
165 kW / 150 kW |
| Rated voltage / voltage range / grid type |
400 V / 320–460 V / 3W+N+PE |
| Rated current |
216 A |
| Rated frequency / frequency range |
50/60 Hz / 45–55 Hz / 55–65 Hz |
| THDi / power factor |
<3% / 1 leading to 1 lagging (settable) |
| Off-grid THDu / overload |
≤1% linear, or ≤5% nonlinear / 110% long-term, 120% 1 min |
| Max. PV input voltage / max. PV power / MPPT quantity / MPPT range |
1 000 V / 165 / 247.5 / 330 kW / 2/3/4 MPPT / 250–1 000 V |
| Battery voltage range / max. charging power |
420–950 V / 165 kW |
| Dimensions (W × D × H) |
1 200 × 800 × 2 050 mm |
| Weight |
1 250 kg (2 MPPT) / 1 280 kg (3 MPPT) / 1 310 kg (4 MPPT). The conservative official upper figure of 1 310 kg is the store weight applied here. |
| Ingress protection / cooling / noise |
IP20 / air cooling / <70 dB |
| Operating temperature / humidity / altitude |
−30 °C to +55 °C / 0–95% non-condensing / derating above 3 000 m |
| Display / communication |
LCD touch-screen; BMS RS485, CAN; EMS RS485, TCP/IP |
| Certificates listed |
EN 62109-1/-2, EN 62477-1, EN 61000-6-2/-6-4, NRS 097-2-1:2024, ASGC |
