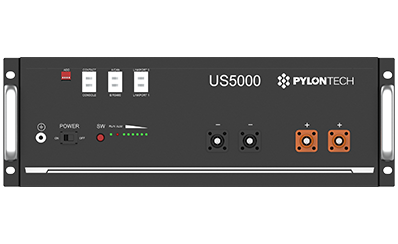

Pylontech US5000 4.8kWh Li-Ion Solar Battery 48V
Part No: PYLON-US5000 | Storage Systems - Li-ion Battery Pack
The US5000 is Pylontech's advanced 48V, 4.8kWh lithium iron phosphate (LiFePO4) battery, engineered with market-leading specifications to maximize power delivery and efficiency.
Product Features
-
Modular Design: Compact 19-inch rack-mount format allows effortless modular scaling.
-
Higher Usable Capacity: Maximizes energy storage to reduce the total number of physical battery modules needed in your system.
-
Usable Capacity: 4,560 Wh (based on a deep 95% Depth of Discharge).
-
Parallel Capability: Safely link up to 16 units in a single string.
-
No Hub Required: Build configurations up to 72.96 kWh usable (76.8 kWh nominal) without purchasing an external LV Hub.
-
Intelligent BMS: Built-in Battery Management System provides dual active protection protocols against over-charge, over-discharge, high/low temperatures, and electrical faults.
-
95% Depth of Discharge (DoD): Frees up more usable capacity per cycle than traditional lithium batteries.
-
8,000+ Cycles: Superior longevity optimized for stable everyday cycling over a 15+ year design lifespan.
-
Universal Communication: Seamless plug-and-play integration using integrated RS485 and CAN Bus protocols.
-
10-Year Manufacturer Warranty: Standard 7-year warranty automatically upgraded to 10 years upon free online registration with Pylontech.
Factory Enhancements (No Firmware Update Required)
-
Native Out-of-the-Box Power: Unlike older iterations, the US5000 features built-in soft-start functions and enhanced hardware that handles severe electrical strikes natively.
-
C-Rating Profile: Delivers a 1C peak rating to confidently support massive momentary surge demands.
-
Continuous Charge and Discharge Current: Natively rates up to 100A maximum continuous current (though 50A per module remains the manufacturer's sweet-spot recommendation for thermal longevity).
Data sheet
