Description

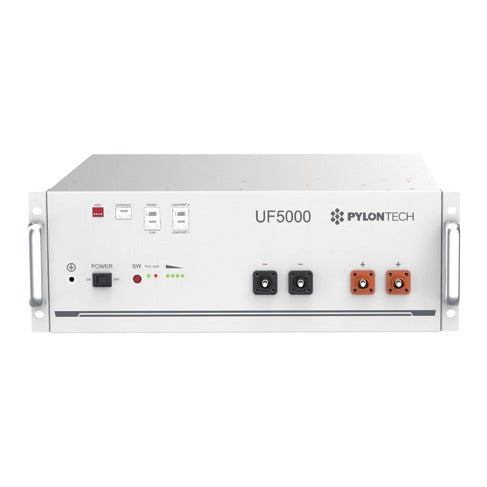

The Pylontech UF5000 Wall-Mount (White) is a 5.12kWh 51.2V LiFePO4 low-voltage battery module in a white finish, supplied in its wall-mount version for residential and small commercial solar and backup systems in South Africa.
- Nominal voltage: 51.2V | Capacity: 5.12kWh | Usable capacity: 4.864kWh (95% DoD)
- Charge/discharge current: 100A normal, 100A max | Peak 121–200A for 15 seconds
- Communication: RS485 / CAN
- Up to 20 modules in a single string
- Working temperature: charge and discharge -10°C to 55°C | Storage -20°C to 60°C | Humidity 5–95% non-condensing | Altitude ≤4000m
- Design life 15 years (at 25°C) | Cycle life >6000 cycles (at 25°C)
- IP20 protection, indoor installation only
- Dimensions (W x D x H): 442 x 452.6 x 161mm | Weight: 42kg
- Certification: IEC62619 / UN38.3 / RoHS / REACH / WEEE / MSDS
- Not compatible with the Pylontech UP5000
Official Datasheet: Pylontech UF5000 Specification Sheet
Official Product Page: Pylontech
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
