Description

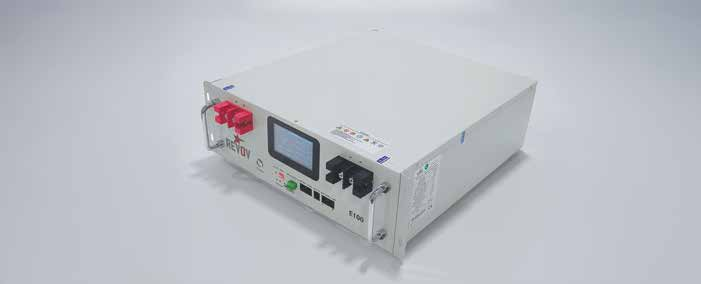

The Revov E100 is a 5.12kWh 51.2V LiFePO4 3U rack-mount battery, designed for residential and small-business solar and backup systems in South Africa.
- Built-in LCD screen, IP20 protection, indoor installation only
- Capacity: 100Ah | Energy: 5.12kWh | Nominal voltage: 51.2V (16-cell)
- Max continuous charge/discharge current: 100A / 100A (1C)
- Peak current (1s): 110A charge / 150A discharge
- Float charge 54.5V | Absorption charge 55.5V | Cut-off 48.0V
- No depth of discharge enforcement: 100% usage permitted and warranted
- Warranted cycles: 6000 at 80% DoD | Over 18MWh warranted throughput over 10 years
- PACE BMS | CAN bus and RS485 communication
- Compatible with all leading inverter brands
- Supports SolarAssistant, AXPI and ESP-BMS
- Backwards compatible for expansion of existing R100 and B100 sites
- Cells that pass GB/T 36276 tests
- Charging temperature 0-45°C | Discharging -10-45°C
- Storage: 15-30°C at min 50% SoC (charge every 6 months)
- Thin 3U rack-mount profile | Dimensions (D x W x H): 480 x 482 x 133mm
- Weight: 45kg
- 10-year warranty (calendar life) or 6000 cycles at 80% DoD
Official Datasheet: Revov E100 Datasheet
Official Product Page: Revov Lithium Batteries
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
