Description

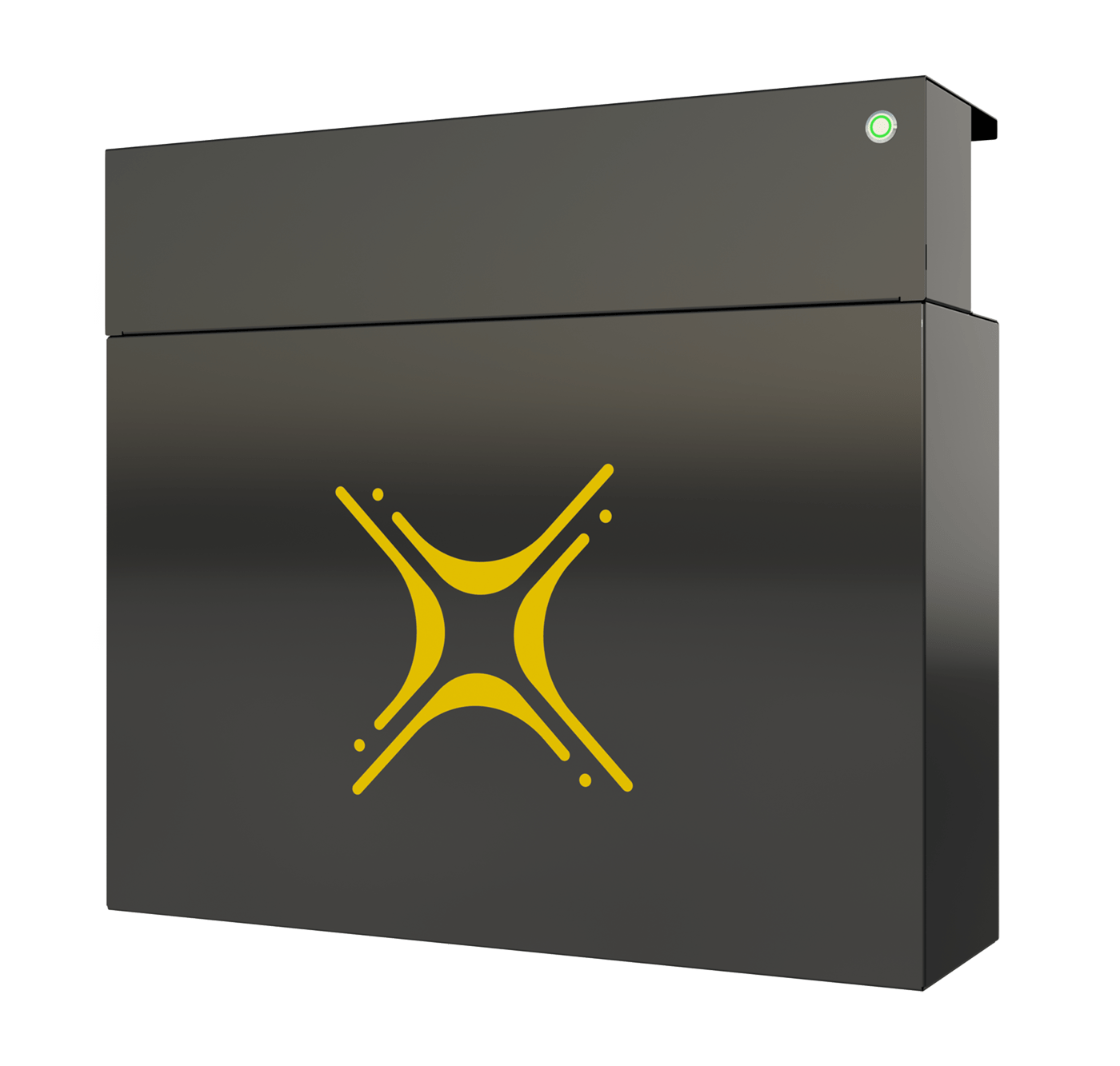

The Solar MD SS4160 is a 16.0 kWh low-voltage lithium iron phosphate (LiFePO4) battery. It has a modular design and can be wall or floor mounted. Capacity can be scaled by connecting multiple units in parallel.
- 16.0 kWh rated capacity, 51.2 V nominal
- LiFePO4 (lithium iron phosphate) cells (CATL)
- 8 kW nominal power @ 0.5C
- 157 A maximum charge and discharge current
- Cycle life ≥ 7000 at 25 °C
- CANBUS / RS485 communication
Technical specifications (SS4160)
Figures in the table are from Solar MD’s official SS4160 datasheet (June 2025), linked from Solar MD’s product page.
| Official model |
SS4160 |
| Battery type |
Lithium iron phosphate (LiFePO4) |
| Cell manufacturer |
CATL |
| Rated capacity |
16.0 kWh |
| Nominal power @ 0.5C |
8 kW |
| Nominal voltage |
51.2 V |
| Operational voltage |
44.8 – 55.6 Vdc |
| Max. charge / discharge current |
157 A |
| Cycle life @ 25 °C |
≥ 7000 |
| Charging efficiency |
99% |
| Operational temperature |
0 °C to 50 °C |
| Communication |
CANBUS / RS485 |
| Weight per module |
118 kg |
| Dimensions (W × D × H) |
674 × 187 × 606 mm |
| Mounting |
Wall or floor mounted; multiple units can be connected in parallel |
| Storage duration |
6 months @ 25 °C |
| Safety standard compliance |
CE / EN 55016 / IEC 61000 |
| Cell certificate |
IEC 62619 / UN38.3 / UN3480 / UL 1642 / UL 1973 |
Warranty: Solar MD’s official SS4160 datasheet states a 5-year guarantee on product material and workmanship and a 12-year energy output warranty. See Solar MD’s official General Terms and Conditions (new cells).
Official Datasheet: Solar MD SS4160 Datasheet (PDF, June 2025)
Official Product Page: Solar MD SS4160
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
