Description

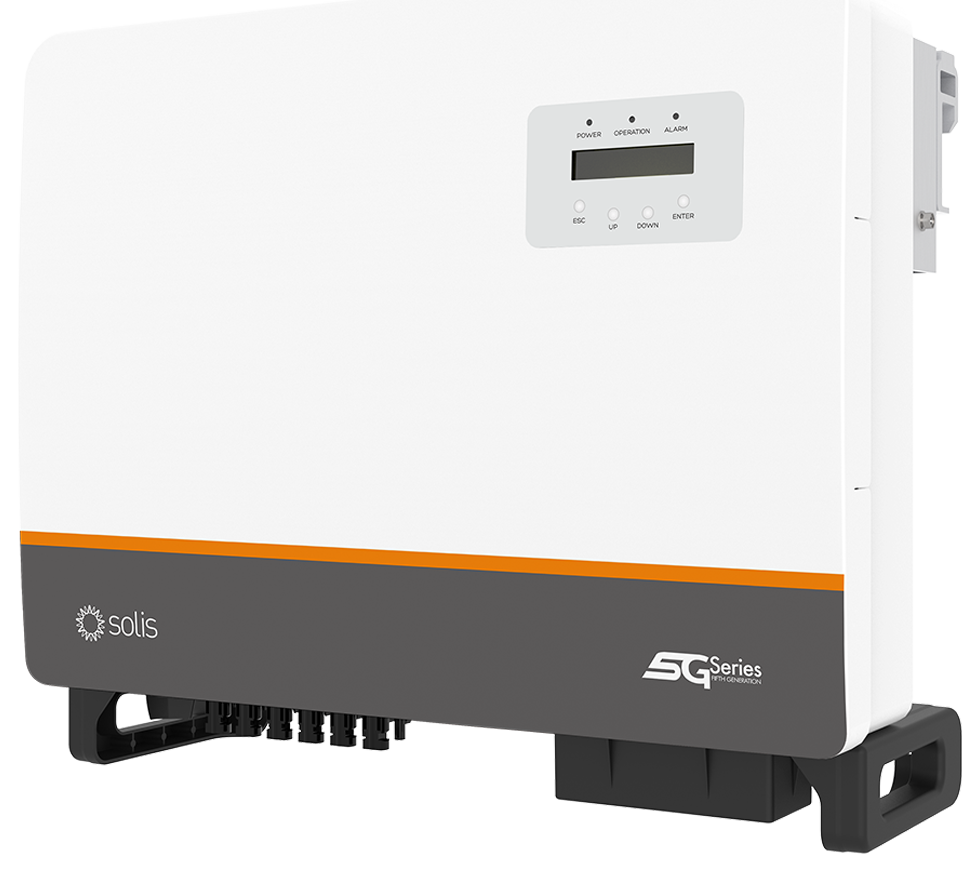

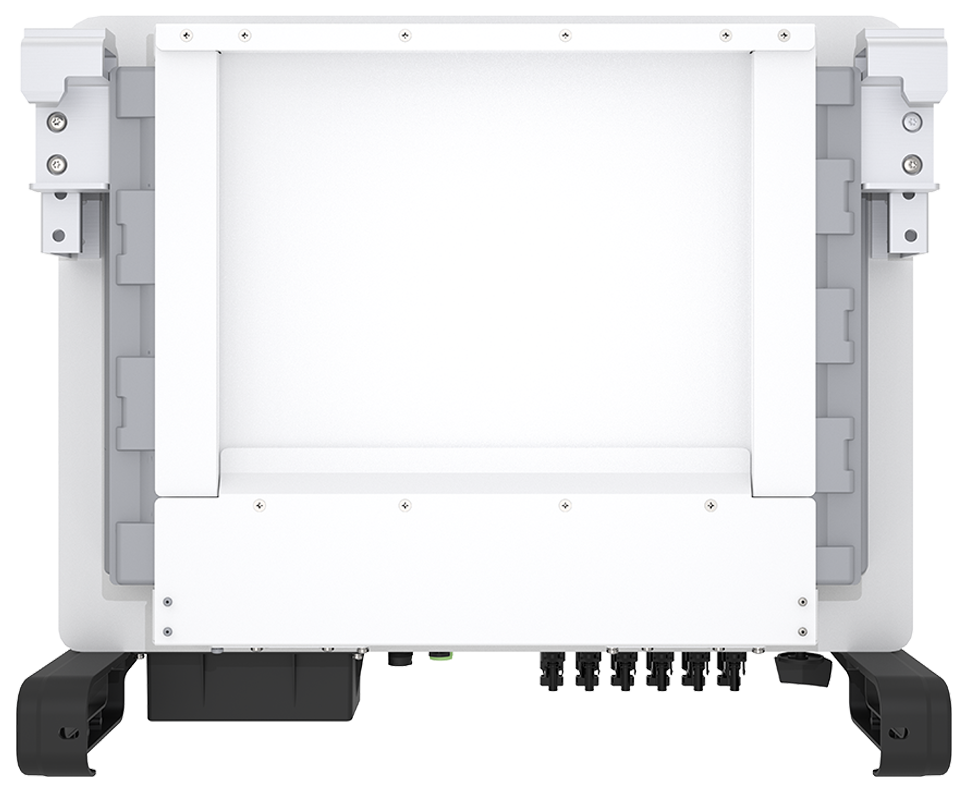

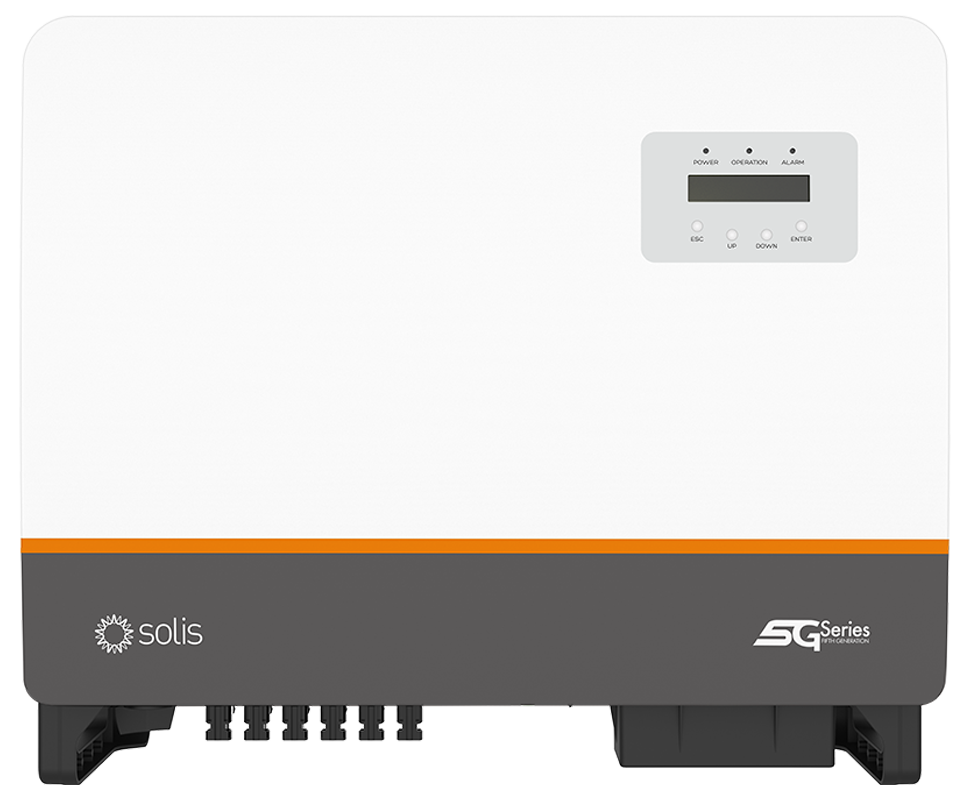

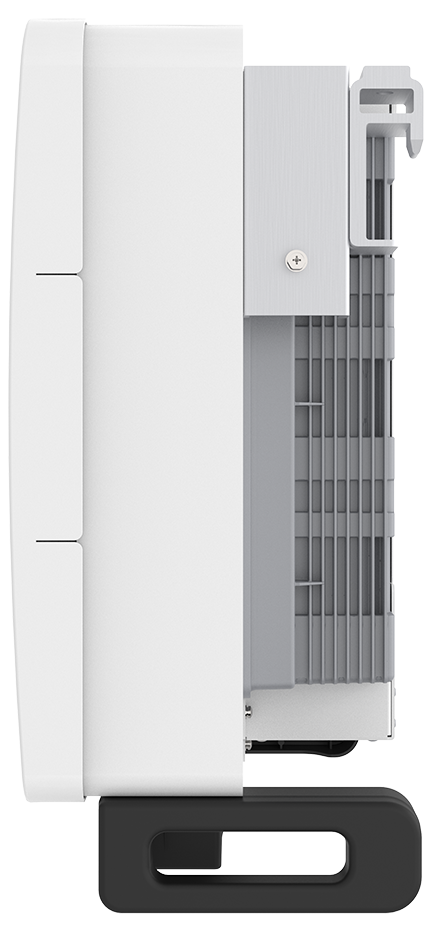

The Solis S5-GC25K is a 25kW three-phase grid-tied string inverter from the S5-GC series, designed for commercial rooftop PV systems in South Africa.
- LCD display | IP66 protection, suitable for indoor and outdoor installation
- Rated AC output: 25 kW | Max apparent / output 27.5 kVA / 27.5 kW
- Rated grid: 3/N/PE, 220/380 V or 230/400 V, 50 Hz | Rated current 38.0 / 36.1 A
- 3 MPPTs / up to 6 strings | Max input current 32 A × 3 | MPPT range 200–1000 V
- Max DC input voltage 1100 V | Start-up 180 V | Recommended max PV power 37.5 kW
- Max efficiency 98.5% | EU efficiency 98.1%

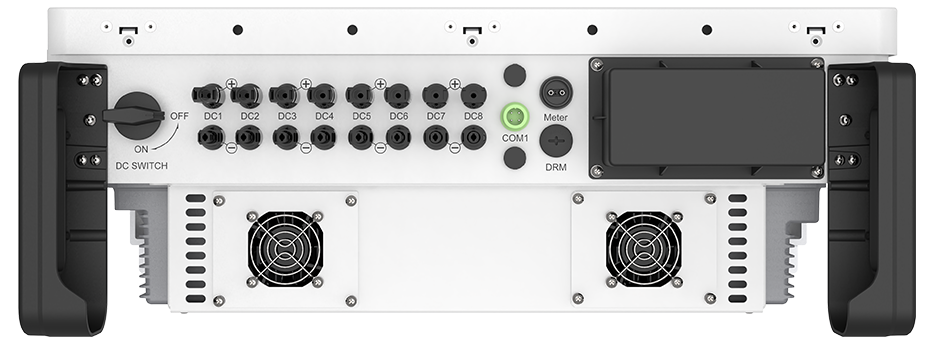

- Integrated DC switch | String monitoring | I/V curve scanning
- Optional AFCI 2.0 and nighttime PID recovery
- Dimensions 647 × 629 × 252 mm | Weight 38.2 kg
- Intelligent fan-cooling | Noise ≤ 60 dB(A)
- NRS 097-2-1 and IEC grid standards per datasheet
- Transformerless topology | Night self-consumption < 1 W
- DC Type II / AC Type II surge protection
- RS485 communication; optional Wi-Fi / GPRS
- Suitable for multi-facing commercial roofs (3 MPPT)
- DC connection MC4 | AC OT terminal
Official Datasheet: https://www.solisinverters.com/dataFile/f479fd27a7394cbbbb0394e8b02de064
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
