Description

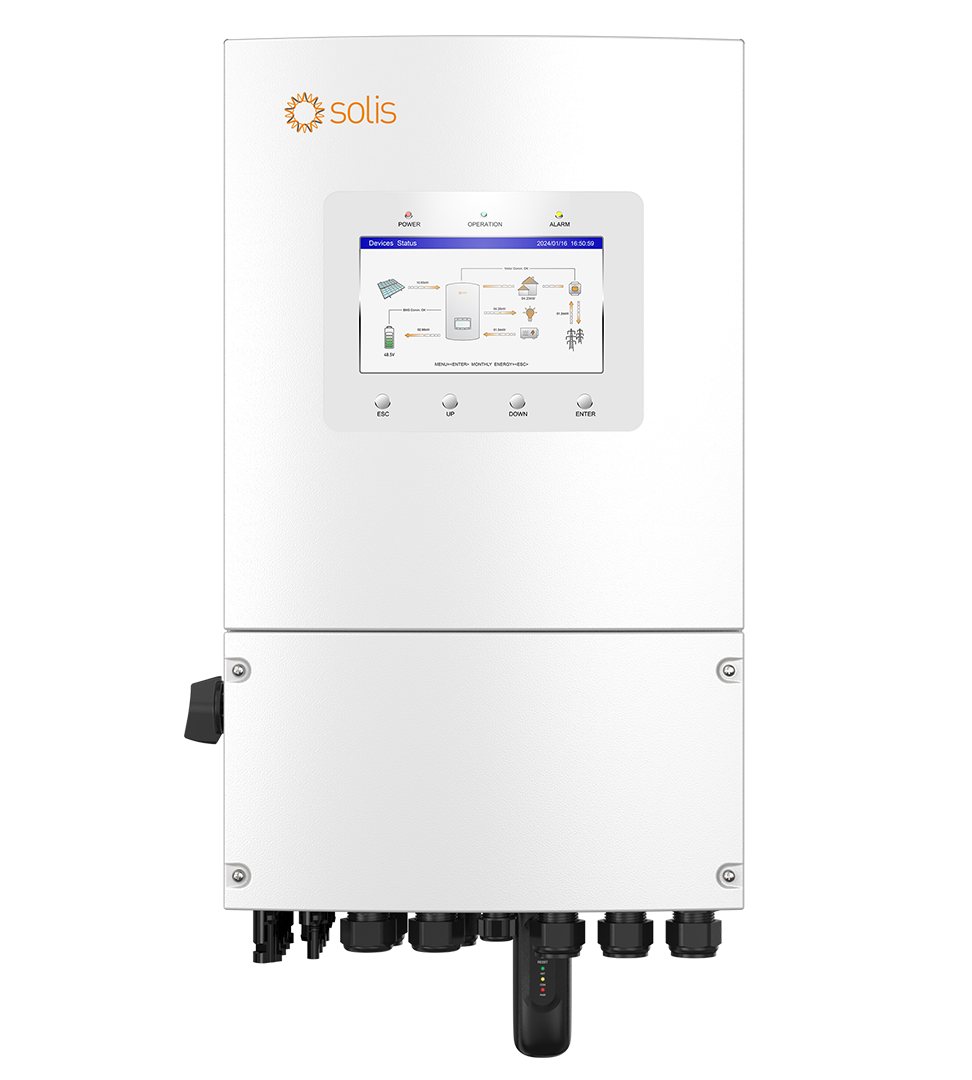

The Solis S6-EH1P10K-L-PLUS is a 10kW single-phase LV hybrid inverter from the S6 Plus (Solarator) series, designed for residential solar and battery systems in South Africa.
- 7.0" LCD display & Bluetooth + App | IP66 protection, suitable for indoor and outdoor installation
- Rated AC output: 10 kW / 10 kVA | L/N/PE, 220/230 V, 50 Hz | Rated grid current 45.5 A / 43.5 A
- Battery Li-ion / lead-acid | 40–60 V | Max charge/discharge 210 A | CAN / RS485 BMS
- Recommended max PV array 20 kW | Max usable PV input 16 kW | Max input voltage 500 V
- 2 MPPTs / up to 4 strings | Max input current 42 A / 42 A | MPPT range 90–435 V
- Backup: 2× rated power for 10 s | Switch time < 10 ms (datasheet) | Max AC passthrough 65 A
- Generator input up to 10 kW with auto control
- Parallel up to 6 units | Smart load management | PV-only off-grid supported
- Max efficiency 96.2% | EU 96.1% | Intelligent fan-cooling
- Dimensions 335 × 560 × 253 mm | Weight 23.8 kg
- NRS 097-2-1 and related grid standards listed on Solis SA datasheet
- SolisCloud remote monitoring and AI optimisation
-
Warranty: 10-year swap-out for LV Solis (Powerforum store policy)
- Supports existing grid-tied PV for export control and off-grid use
- High 21 A PV input current class for larger modules
- Wall-mounted C&I/residential hybrid for SA load-shedding resilience
Official Datasheet: https://www.solisinverters.com/dataFile/2c9fafbf8c42c941018c73239e8a09e0
Official Product Page: https://www.solisinverters.com/
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
