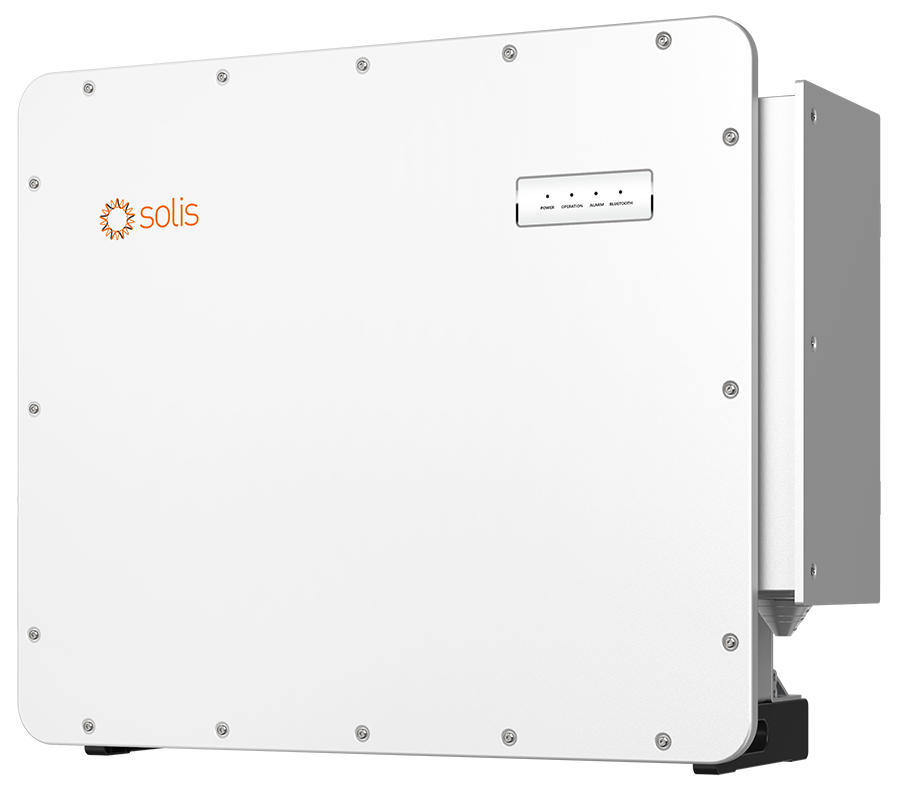

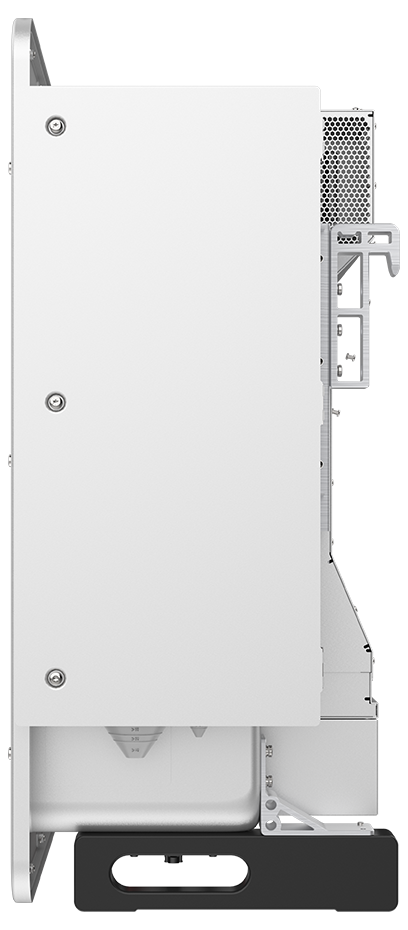

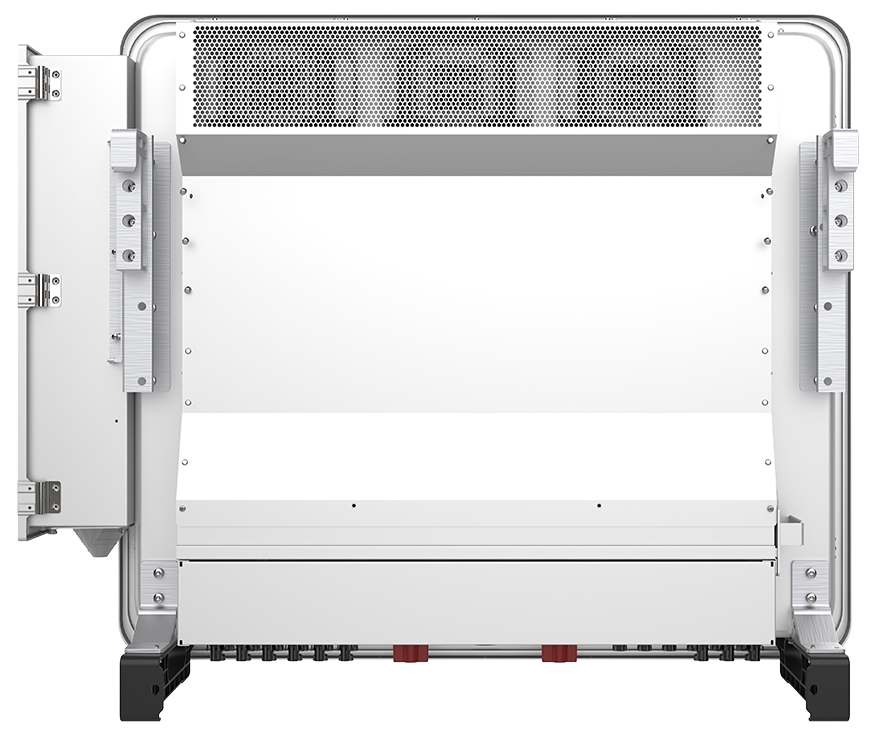

The Solis S6-GC3P150K07-NV-ND is a 150kW three-phase grid-tied inverter with 7 MPPTs, designed for larger commercial and industrial PV plants in South Africa.
- LED indicator & Bluetooth + App | IP66 protection, suitable for indoor and outdoor installation
- Rated AC output: 150 kW | Max apparent / output 165 kVA / 165 kW
- Rated grid 3/N/PE, 220/380 or 230/400 V, 50/60 Hz | Rated current 216.5 / 227.9 A
- 7 MPPTs / up to 21 strings | Max input current 7 × 54 A | MPPT range 160–1000 V
- Max DC input voltage 1100 V | Start-up 180 V
- Max efficiency 98.8% | EU efficiency 98.3%
- Integrated DC switch | Strings monitoring | I/V curve scanning | Night SVG
- Optional AFCI 2.0 and PID recovery | Optional 3-phase unbalanced output
- Dimensions 1035.5 × 869 × 396 mm | Weight 105 kg
- Intelligent fan-cooling | Max altitude 4000 m
- DC Type II / AC Type II surge (AC Type I optional)
- Communication RS485; optional Wi-Fi, GPRS, PLC
- Transformerless | Night self-consumption < 2 W

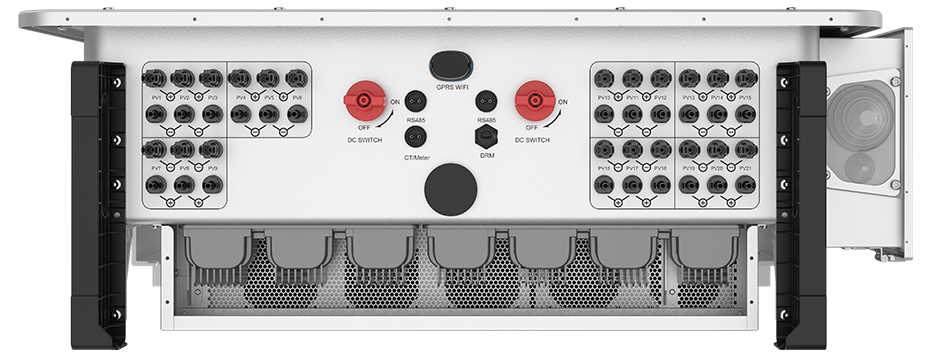

- MC4 DC connectors | OT AC terminals (max 400 mm²)
- Grid standards include G99, IEC61727, EN50549 per datasheet
- Best suited to C&I rooftops and ground-mount string architecture
Official Datasheet: https://www.solisinverters.com/dataFile/2c9fafbf91202a6601912191faa1010f
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
