Description

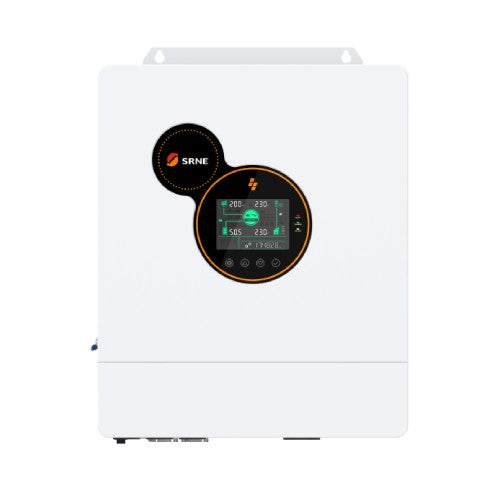

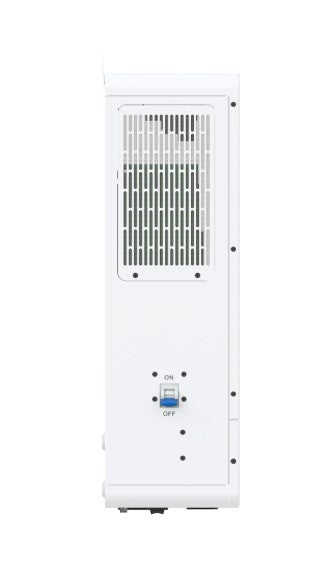

The SRNE HYP4850S100-H is a 5kW single-phase off-grid solar storage inverter compatible with 48V batteries, designed for residential backup and off-grid solar systems in South Africa.
- IP20 indoor-only protection | industrial aesthetic design
- Rated output power: 5000W | Max output power: 10000VA | pure sine wave
- Rated output voltage: 230Vac (L/N/PE) | 50/60Hz | typical transfer time 10ms
- Battery: Li-ion / lead-acid / user-defined | rated 48V | range 40–60Vdc
- Max solar charging current: 100A | max grid/generator charging: 60A | max hybrid charging: 100A
- Solar input: 1 MPPT | max PV array power 5500W | max VOC 500Vdc | MPPT range 120–450Vdc
- Grid/generator input range: 90–280Vac | bypass overload current 40A
- Parallel capacity: 1–6 units (more than 3 units can form three-phase output)
- Time-slot function for peak-valley cost saving | BMS communication support
- Off-grid / without-battery output mode
- MPPT tracking efficiency 99.9% | max efficiency 92%
- Size 446.9×350×133 mm | weight 13 kg | noise <60dB | intelligent fan cooling
- Communication: RS485/CAN/USB/dry contact | optional Wi-Fi/GPRS
- Operating temperature: -15 to 55°C
- Warranty: 2 years (refer to SRNE warranty terms)
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
