| Official model |

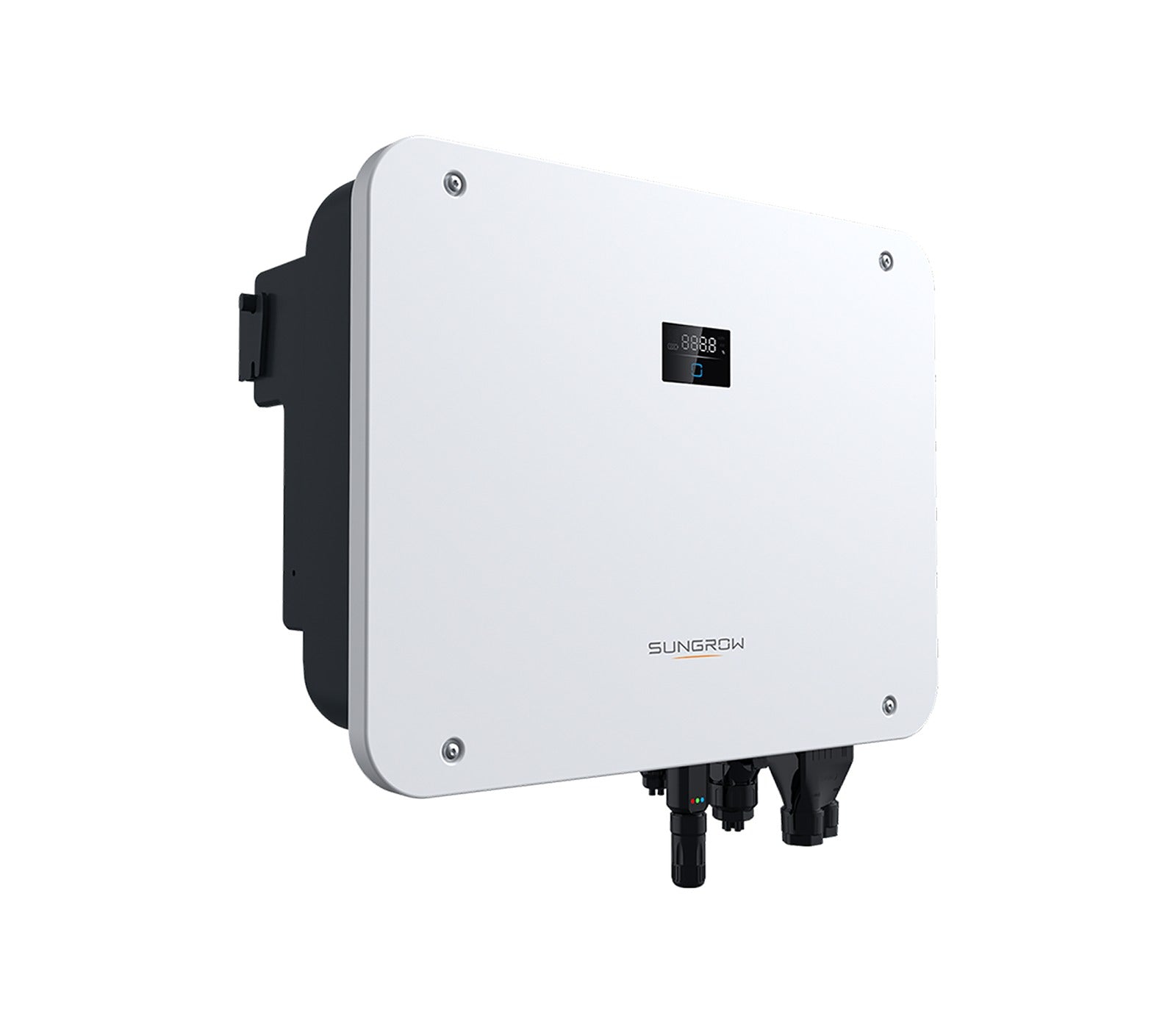

SH25T |
| Type |
Three-phase hybrid inverter |
| Recommended max. PV input power |
50 000 Wp |
| Max. PV input voltage |
1 000 V |
| Min. / start-up / rated PV input voltage |
150 V / 180 V / 600 V |
| MPPT operating voltage range |
150–950 V |
| MPP trackers / strings per MPPT |
3 / 2+2+1 |
| Max. PV input current |
80 A (32 A / 32 A / 16 A) |
| Max. DC short-circuit current |
100 A (40 A / 40 A / 20 A) |
| Max. current for input connector |
30 A |
| Battery type / voltage range |
Li-ion; 100–700 V |
| Max. charge / discharge current |
50 A / 50 A |
| Max. charge / discharge power |
30 000 W / 25 000 W |
| Max. AC power from grid |
43 000 VA |
| Rated AC output power / max. apparent power |
25 000 W / 25 000 VA |
| Max. AC output current |
37.9 A |
| Rated AC voltage / range |
3 / N / PE, 220 / 380 V, 230 / 400 V, 240 / 415 V; 270–480 V |
| Rated grid frequency / range |
50 / 60 Hz; 45–55 / 55–65 Hz |
| THD / power factor |
<3% of rated power; >0.99 / 0.8 leading to 0.8 lagging |
| Feed-in / connection phases |
3 / 3-N-PE |
| Backup (on-grid) max. output power / current |
43 000 W / 3 × 63 A |
| Backup (off-grid) rated voltage / frequency |
3 / N / PE, 220 / 380 V, 230 / 400 V, 240 / 415 V (±2%); 50 / 60 Hz (±0.2%) |
| Backup THDv / switch time |
2% (linear load); <10 ms |
| Backup rated / peak output power |
25 000 W / 25 000 VA; 36 500 W / 36 500 VA for 10 s |
| Max. / European efficiency |
98.2% / 97.8% |
| Protection |
Grid monitoring, DC reverse polarity, AC short-circuit, leakage current, DC switch (solar), PID zero, battery input reverse polarity, all yes; DC Type II / AC Type II surge protection |
| Topology |
Transformerless / transformerless (solar / battery) |
| Ingress protection |
IP65 |
| Display / communications |
LED; RS485, WLAN, Ethernet, CAN; DI × 4 / DO × 2 / DRM0 |
| Operating temperature / humidity / altitude |
−25 °C to 60 °C; 0–100%; 2 000 m |
| Cooling / noise |
Fan cooling; 50 dB(A) |
| Mounting |
Wall-mounting bracket |
| DC / AC connection |
MC4 compatible (PV, max. 6 mm²) / plug and play (battery, max. 10 mm²); plug and play AC (max. 16 mm²) |
| Dimensions (W × H × D) |
620 × 480 × 245 mm |
| Weight |
40 kg |
