Description

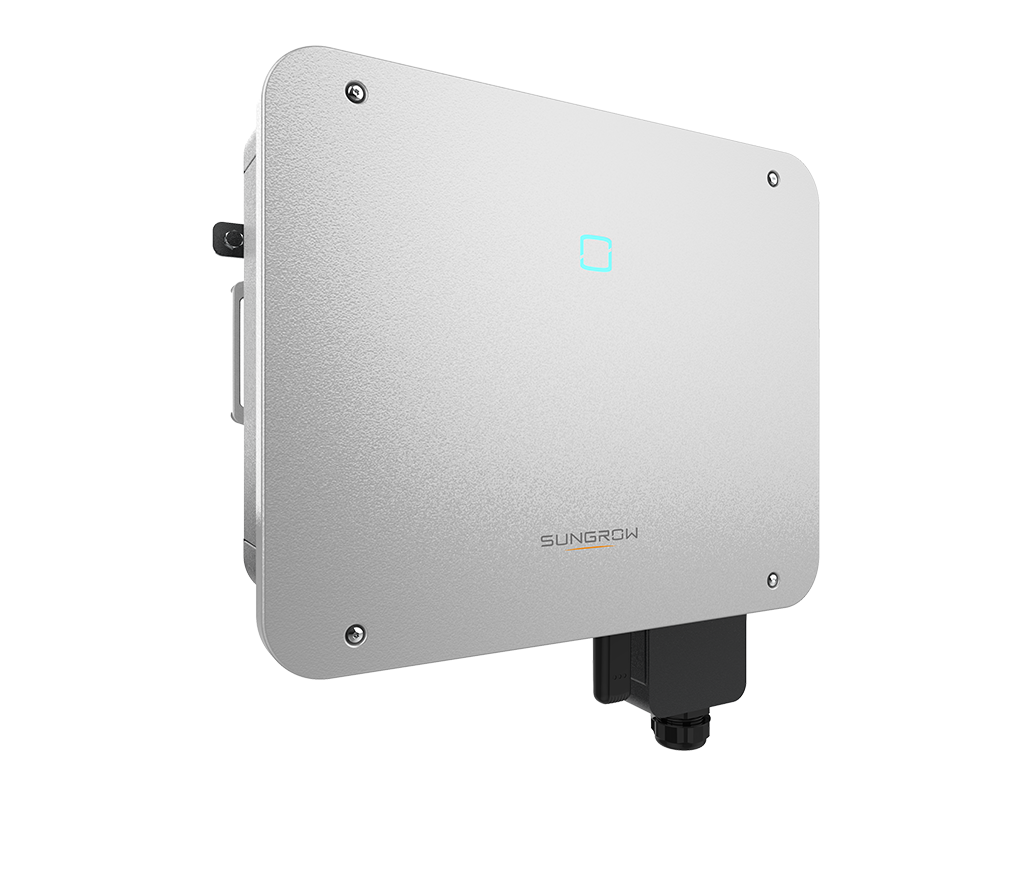

The Sungrow SG36CX-P2 is a three-phase, transformerless, multi-MPPT string inverter for 1000 Vdc PV systems. The official store SKU is SG-036CX-P2.
- Official model: SG36CX-P2 (store SKU SG-036CX-P2)
- Rated AC output power 36 kW; max AC apparent power 40 kVA; 4 independent MPPTs, 2 strings per MPPT
- Official weight 40 kg; dimensions 645 × 575 × 245 mm; IP66, C5 anti-corrosion
- Max. efficiency up to 98.5%; DC Type I+II / AC Type II SPD; AFCI and PID recovery
Figures are from Sungrow’s official SG36/40/50CX-P2 datasheet, Version 4 (English, 19 December 2023), column SG36CX-P2.
Technical specifications (SG36CX-P2)
| Official model / store SKU |
SG36CX-P2 / SG-036CX-P2 |
| Type |
Three-phase multi-MPPT string inverter for 1000 Vdc systems |
| Recommended max. PV input power |
50.4 kWp |
| Max. / min. / startup / rated PV input voltage |
1100 V / 160 V / 200 V / 600 V |
| MPPT voltage range |
160 – 1000 V |
| Independent MPPTs / strings per MPPT |
4 / 2 |
| Max. PV input current / max. DC short-circuit current / max. current per DC connector |
120 A (30 A × 4) / 160 A (40 A × 4) / 30 A |
| Rated AC output power / max. AC apparent power |
36 kW / 40 kVA |
| Max. / rated AC output current (at 230 V) |
60.2 A / 52.17 A |
| Rated AC voltage / range |
3 / N / PE, 220/380 V or 230/400 V; 312 – 480 V |
| Rated grid frequency |
50 / 60 Hz |
| Max. / European efficiency |
98.5% / 98.3% |
| Dimensions (W × H × D) |
645 × 575 × 245 mm |
| Weight |
40 kg |
| Protection / corrosion / cooling |
IP66 / C5 / smart forced-air cooling |
| Operating temperature / max. altitude / night consumption |
−30 °C to 60 °C / 4000 m / < 7 W |
| Display / communication |
LED, Bluetooth + app; RS485; optional WLAN / Ethernet |
| Topology / mounting |
Transformerless / wall-mounting bracket |
Official grid-support functions on this datasheet include Q at night, LVRT, HVRT, and active/reactive power control.
Official Datasheet: Official datasheet (PDF)
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
