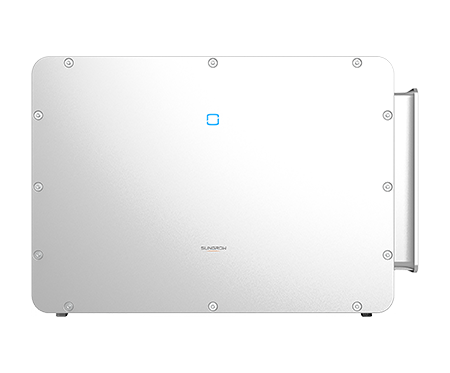

| Official model |
SH6.0RS |
| Type |
Single-phase residential hybrid inverter |
| Recommended max. PV input power |
9 000 Wp (official footnote: max. input PV power 13 000 Wp) |
| Max. PV input voltage |
600 V |
| Min. / start-up / rated PV input voltage |
40 V / 50 V / 360 V |
| MPPT operating voltage range |
40–560 V |
| MPP trackers / strings per MPPT |
2 / 1+1 |
| Max. PV input current |
32 A (16 A / 16 A) |
| Max. DC short-circuit current |
40 A (20 A / 20 A) |
| Max. current for input connector |
20 A |
| Battery type / voltage range |
Li-ion; 80–460 V |
| Max. charge / discharge current |
30 A / 30 A |
| Max. charge / discharge power |
6 600 W |
| Max. AC power from grid |
13 000 VA |
| Rated AC output power / max. apparent power |
6 000 W / 6 000 VA |
| Max. AC output current |
27.3 A |
| Rated AC voltage / range |
220 / 230 / 240 V; 154–276 V |
| Rated grid frequency / range |
50 / 60 Hz; 45–55 / 55–65 Hz |
| THD / power factor |
<3% of rated power; >0.99 at default at rated power |
| Feed-in / connection phases |
1 / 1 |
| Backup (on-grid) max. output power / current |
6 000 W / 27.3 A |
| Backup (off-grid) rated voltage / frequency |
220 / 230 / 240 V (±2%); 50 / 60 Hz (±0.2%) |
| Backup THDv / switch time |
<2% (linear load); <10 ms |
| Backup rated / peak output power |
6 000 W / 6 000 VA; 8 400 VA for 10 s |
| Max. / European efficiency |
97.7% / 97.3% |
| Protection |
Grid monitoring, DC reverse polarity, AC short-circuit, leakage current, DC switch (solar), PID Zero, all yes; DC Type II / AC Type II surge protection; optimizer compatibility optional |
| Parallel operation on grid port |
Master-slave mode, max. 3 inverters |
| Topology |
Transformerless / transformerless (solar / battery) |
| Ingress protection |
IP65 |
| Display / communications |
LED digital display and LED indicator; RS485 / Ethernet / WLAN / CAN; DI × 4 / DO × 1 / DRM |
| Operating temperature / humidity / altitude |
−25 °C to 60 °C; 0–100%; 4 000 m |
| Cooling / noise |
Natural convection; <45 dB(A) |
| Mounting |
Wall-mounting bracket |
| DC / AC connection |
MC4 (PV, max. 6 mm²) / Evo2 compatible (battery, max. 6 mm²); plug and play (grid max. 16 mm², backup max. 6 mm²) |
| Dimensions (W × H × D) |
490 × 340 × 170 mm |
| Weight |
18.5 kg |
