| Official model |

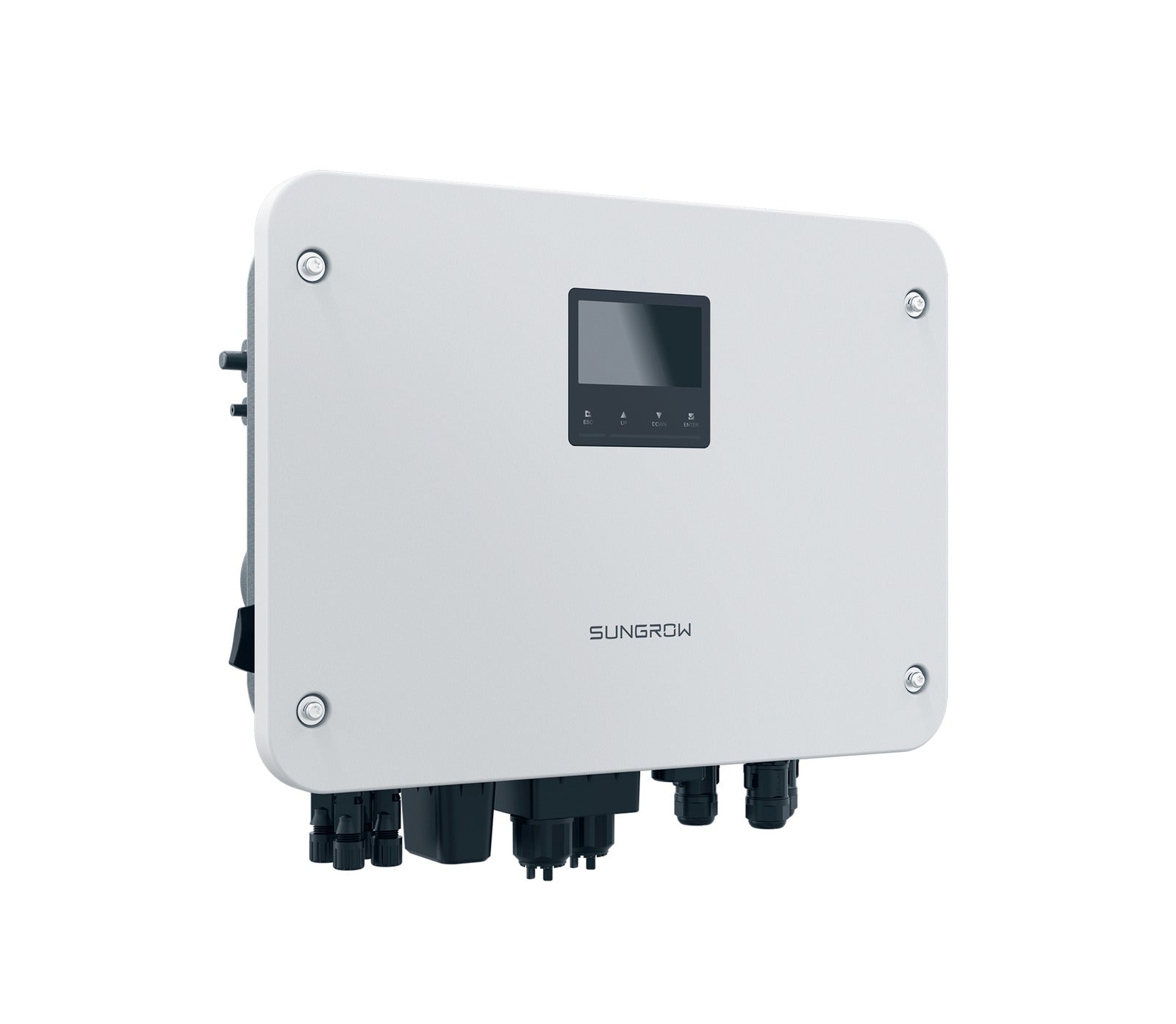

MG12RL |
| Type |
Single-phase low-voltage hybrid inverter |
| Recommended max. / max. usable PV input power |
24 000 Wp / 19 200 Wp |
| Max. PV input voltage |
500 V |
| Min. / start-up / rated PV input voltage |
40 V / 50 V / 360 V |
| MPPT operating voltage range |
40–425 V |
| MPP trackers / strings per MPPT |
3 / 1+1+1 |
| Max. PV input current |
60 A (20 A / 20 A / 20 A) |
| Max. DC short-circuit current |
75 A (25 A / 25 A / 25 A) |
| Max. current for DC connector |
25 A |
| Battery type |
Li-ion / lead-acid |
| Compatible official battery models |
MGL060, MBL050, MBL120, MBL160, MBL160-PF, and third-party LV batteries |
| Battery voltage range |
40–60 V |
| Max. charge / discharge current |
240 A / 240 A |
| Max. charge / discharge power |
12 000 W / 12 000 W |
| Max. AC power from grid |
13 860 W |
| Rated AC output power / max. apparent power |
12 000 W / 12 000 VA |
| Max. AC output current |
54.5 A |
| Rated AC voltage / range |
220 / 230 / 240 V; 154–276 V |
| Rated grid frequency / range |
50 / 60 Hz; 45–55 / 55–65 Hz |
| THD / power factor |
<3% of rated power; >0.99 at default at rated power / 0.8 leading to 0.8 lagging |
| Feed-in / connection phases |
1 / 1 |
| Backup (on-grid) max. output power / current |
13 860 W / 63 A |
| Backup (off-grid) rated voltage / frequency |
220 / 230 / 240 V; 50 / 60 Hz |
| Backup THDv / switch time |
<2% (linear load); 0 ms (typical conditions) |
| Backup rated / max. / peak output power |
12 000 W; 12 000 W; 1.7 times rated power for 10 s |
| Max. / European efficiency |
97.6% / 96.7% |
| Protection |
Grid monitoring, DC reverse polarity, AC short-circuit, leakage current, DC switch (solar), PID Zero, all yes; DC Type II / AC Type II surge protection; micro-inverter compatibility optional |
| Topology (inverter / battery BDC) |
Non-isolated / isolated |
| Ingress protection |
IP65 |
| Display / communications |
LCD digital touch display and LED indicator; CAN, RS485, Ethernet, WLAN; DI × 1 / DO × 1 |
| Operating temperature / humidity / altitude |
−25 °C to 60 °C; 0–95%; 2 000 m |
| Cooling / noise |
Fan cooling; ≤45 dB(A) |
| Scalability |
8 in parallel (consult Sungrow if more than 4) |
| Mounting |
Wall-mounting bracket |
| DC / battery / AC connection |
MC4 compatible (max. 6 mm²); OT terminal 35–95 mm²; OT terminal max. 16 mm² |
| Dimensions (W × H × D) |
552 × 448 × 250 mm |
| Weight |
≤ 25 kg |
