Description

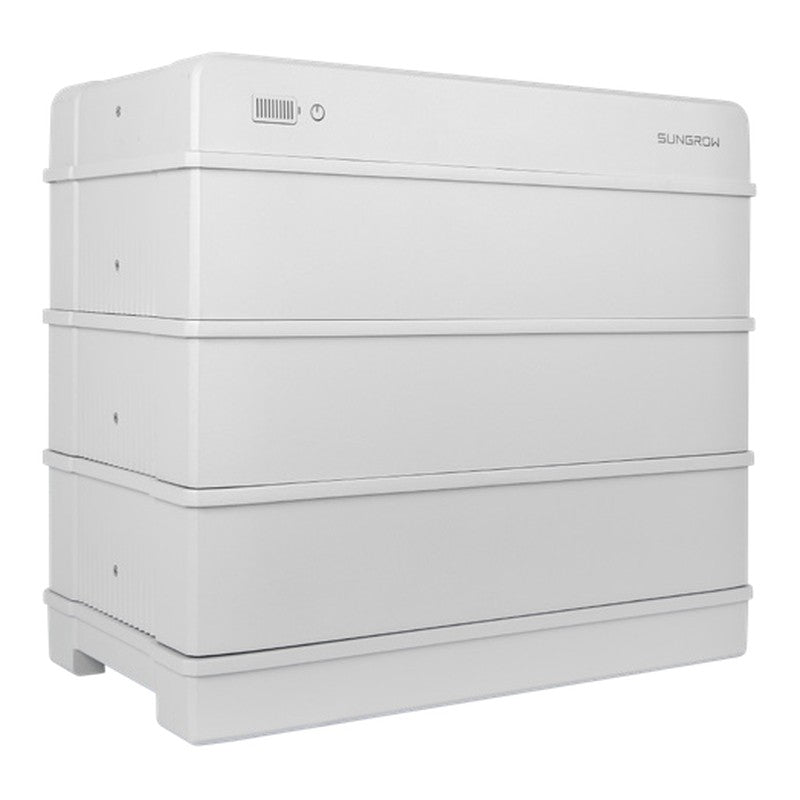

The Sungrow SBR096 is a 9.6kWh high-voltage LiFePO4 battery made up of three stackable 3.2kWh modules. It is designed for Sungrow SH-RS single-phase and SH-RT three-phase hybrid inverters, with plug-and-play modules that need no cables between them.
- 9.6kWh usable energy (3 × 3.2kWh modules) – up to 100% depth of discharge
- Expandable during its lifetime to 8 modules (25.6kWh) per stack
- 30A continuous charge and discharge
- Plug-and-play stacking – no inter-module cabling; each module only 33kg
- IP55 enclosure for indoor or outdoor installation
- Multi-stage protection and extensive safety certification
Specifications (SBR096)
| Battery type |
LiFePO4 prismatic cell |
| Configuration |
3 × 3.2kWh modules |
| Usable energy |
9.6kWh |
| Nominal voltage |
192V |
| Operating voltage |
162 – 219V |
| Max. continuous charge/discharge current |
30A |
| Depth of discharge |
Up to 100% (settable) |
| Communication |
CAN |
| Operating temperature |
Charge 0 – 50°C / Discharge -20 – 50°C |
| Ingress protection |
IP55 (indoor / outdoor) |
| Dimensions (W × H × D) |
625 × 545 × 330mm |
| Weight |
114kg |
| Certifications |
CE, CEC, IEC 62619, IEC 62040, UN38.3, VDE 2510-50, UKCA |
Official Datasheet: Sungrow SBR HV Battery Datasheet
Available on backorder – please contact us for lead time.
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
