Description

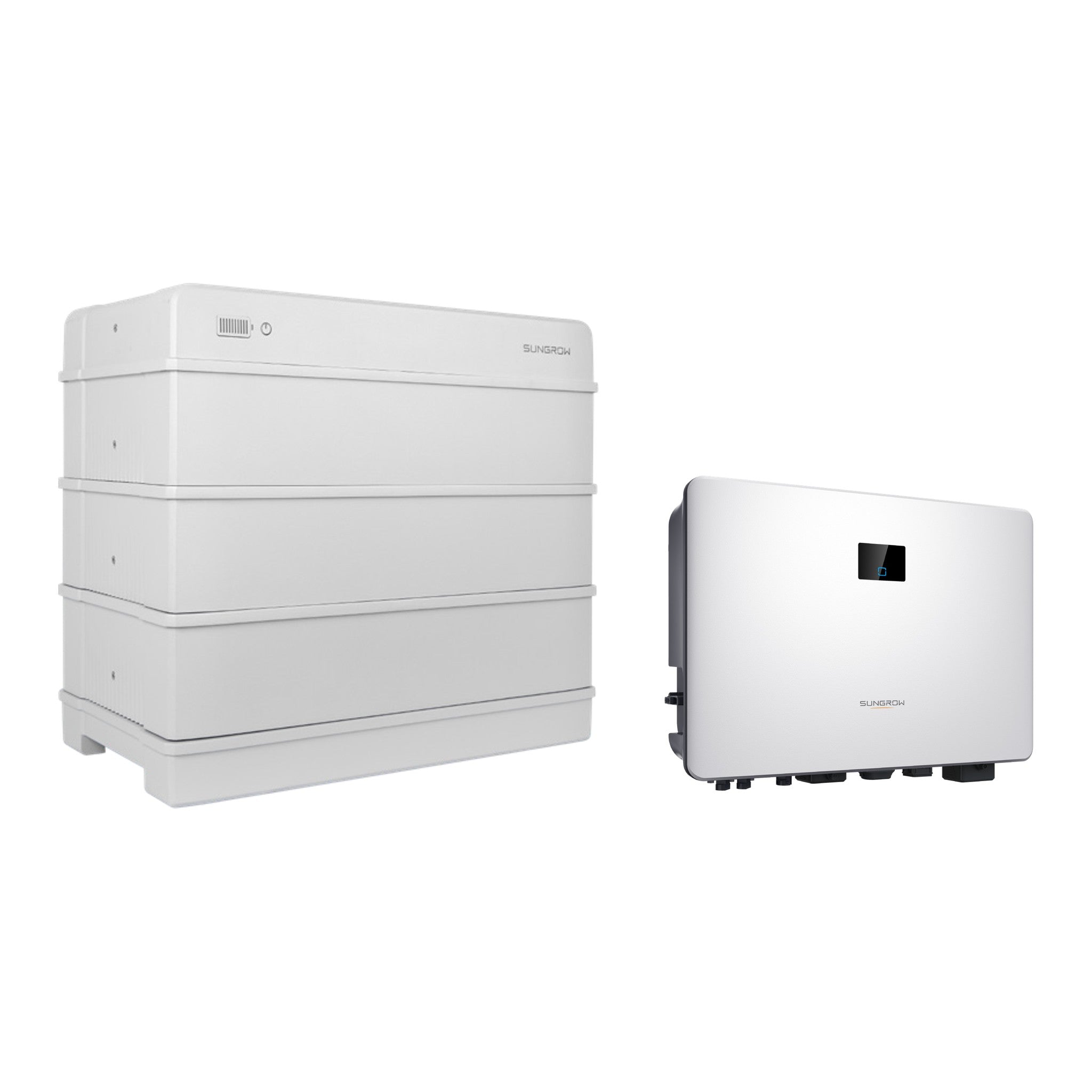

The Sungrow SH6.0RS + SBR096 package combines the Sungrow SH6.0RS 6kW single-phase hybrid inverter with an SBR096 9.6kWh high-voltage LiFePO4 battery. It is a matched, fully compatible home energy system for solar self-consumption and backup power.
- SH6.0RS 6kW single-phase hybrid inverter with 2 MPPTs (up to 9kWp PV recommended)
- SBR096 9.6kWh battery – 3 × 3.2kWh stackable modules, expandable to 25.6kWh
- Backup switchover in under 10ms with 8400VA peak (10s)
- Inverter efficiency up to 97.7%; IP65 inverter and IP55 battery for indoor or outdoor installation
- Monitoring through the Sungrow iSolarCloud app
Specifications (SH6.0RS + SBR096)
| Inverter model |
Sungrow SH6.0RS |
| Recommended max. PV power |
9000Wp |
| Max. PV input voltage |
600V |
| MPPT voltage range |
40 – 560V |
| MPP trackers / max. current |
2 / 16A + 16A |
| Battery voltage range |
80 – 460V |
| Max. battery charge/discharge |
30A / 6600W |
| Rated AC output |
6000W, 27.3A |
| Backup switchover / peak |
<10ms / 8400VA (10s) |
| Max. / Euro efficiency |
97.7% / 97.3% |
| Inverter IP rating / size / weight |
IP65 / 490 × 340 × 170mm / 18.5kg |
| Battery model |
Sungrow SBR096 |
| Configuration |
3 × 3.2kWh modules |
| Usable energy |
9.6kWh |
| Nominal voltage |
192V |
| Operating voltage |
162 – 219V |
| Max. continuous charge/discharge current |
30A |
| Depth of discharge |
Up to 100% (settable) |
| Communication |
CAN |
| Operating temperature |
Charge 0 – 50°C / Discharge -20 – 50°C |
| Ingress protection |
IP55 (indoor / outdoor) |
| Dimensions (W × H × D) |
625 × 545 × 330mm |
| Weight |
114kg |
| Certifications |
CE, CEC, IEC 62619, IEC 62040, UN38.3, VDE 2510-50, UKCA |
Official Datasheet: Sungrow SH3.0–6.0RS Datasheet | Sungrow SBR HV Battery Datasheet
Available on backorder – please contact us for lead time.
This product must be installed by a qualified electrician. All installations must adhere to local wiring regulations and standards.
